Запчасти Case IH 1500-SERIES (146) - T40758 WOOD TICK CYLINDER, HAS ROUND ROD EYE USED BEFORE TRAC. SN. 9816144 (35) - HYDRAULIC SYSTEMS

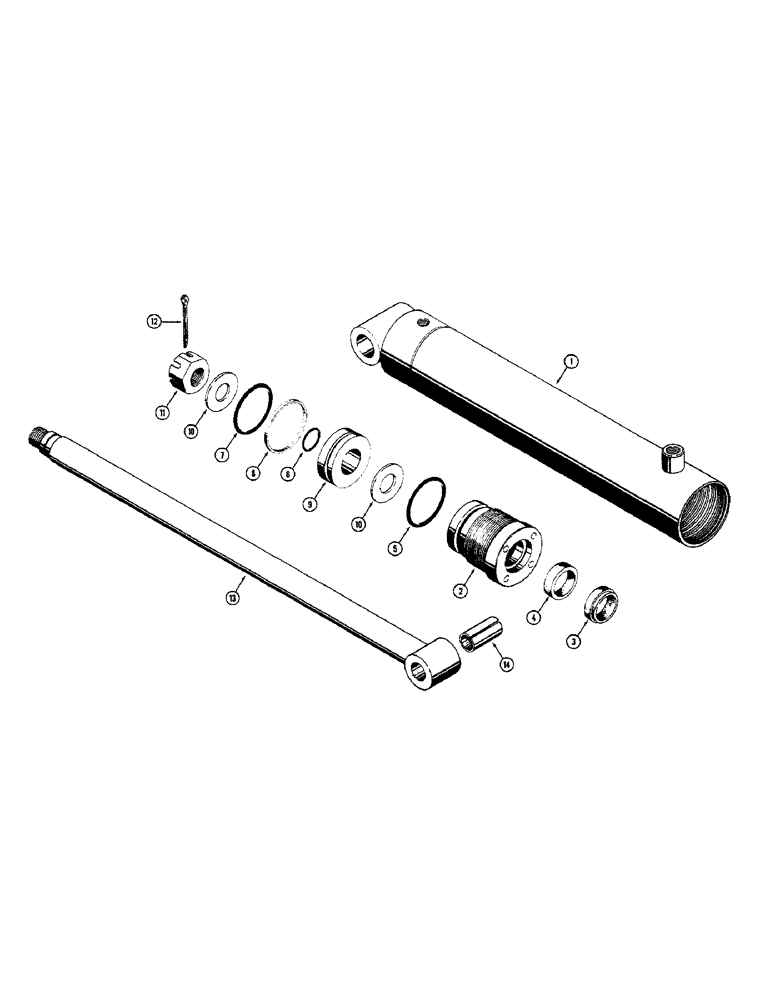

Схема запчастей Case IH 1500-SERIES - (146) - T40758 WOOD TICK CYLINDER, HAS ROUND ROD EYE USED BEFORE TRAC. SN. 9816144 (35) - HYDRAULIC SYSTEMS
2
9
6
13
3
4
7
11
1
10
10
8
5
14
12

Артикул

Название

Примечание

Количество

T40758

CYLINDER

wood tick, 3" I.D. x 7" stroke (Use G34251 cylinder for service - see below), Incl. Ref 1-14

2шт.

1

T41427

CYLINDER

TUBE

1шт.

2

T40200

GLAND

packing

1шт.

T40055

SEAL KIT

KIT - cylinder packing, Incl. Ref 3-8

1шт.

3

NSS

NOT SOLD SEPARAT

WIPER - rod, outer

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

5

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

gland

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, piston rod

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, piston

1шт.

8

NSS

NOT SOLD SEPARAT

RING - piston, backup

1шт.

9

NLS

NO LONGER SERVICED

PISTON - cylinder

1шт.

10

T40195

SPARE PART thrust, special

2шт.

11

25-2316

SLOTTED NUT

hex., castle (1" - 14 NF)

1шт.

12

132-95

COTTER PIN,3/16" x 1 1/2"

1шт.

13

T41425

ROD - piston (1-1/2" dia.), Incl. Ref 14

1шт.

14

T40194

BUSHING

rod

1шт.

Выбрано товаров: 16
