Запчасти Case IH 1500-SERIES (146[A]) - G34251 WOOD TICK CYLINDER HAS FLAT ROD EYE USED BEFORE TRACTOR SN. 9816144 GLAND IS STAMPED WITH CYLINDER PART NUMBER (35) - HYDRAULIC SYSTEMS

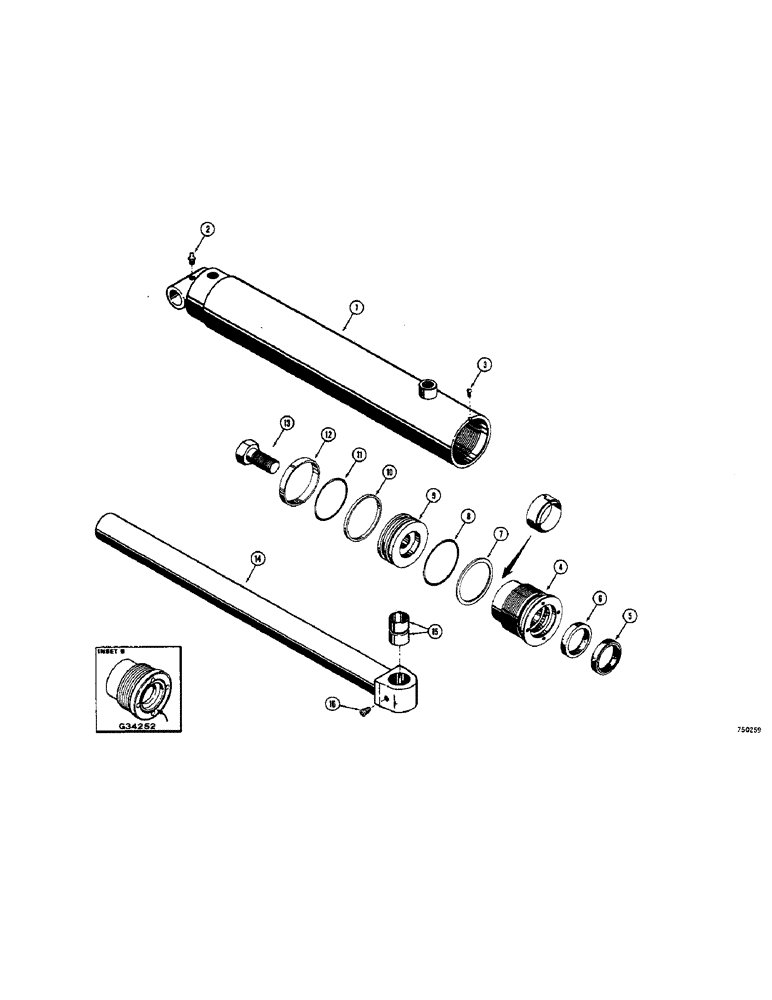

Схема запчастей Case IH 1500-SERIES - (146[A]) - G34251 WOOD TICK CYLINDER HAS FLAT ROD EYE USED BEFORE TRACTOR SN. 9816144 GLAND IS STAMPED WITH CYLINDER PART NUMBER (35) - HYDRAULIC SYSTEMS
7
4
13
11
2
6
14
1
15
5
3
9
16
12
10
8

Артикул

Название

Примечание

Количество

G34251

CYLINDER

CYLINDER - wood tick (3" I.D. x 7" stroke), Includes Ref: 1-16

2шт.

1

G32061

HYD TUBE,13.57" L

TUBE - cylinder

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

3

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self- tapping, #8 - 32 NC x 1"

1шт.

G34328

GLAND

GLAND ASSEMBLY - complete, Includes Ref: 4-8A

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - packing (See inset B)

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - rod, outer

1шт.

Part of Cylinder Packing Kit P/N G32269

1шт.

6

D36969

CUP

SEAL - rod

1шт.

Part of Cylinder Packing Kit P/N G32269

1шт.

7

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

RING - backup, gland seal

1шт.

Part of Cylinder Packing Kit P/N G32269

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

Part of Cylinder Packing Kit P/N G32269

1шт.

8a

D27706

WIPER SEAL

WIPER - rod, inner (Used on repair gland only)

1шт.

9

G35263

PISTON

PISTON - cylinder

1шт.

10

G32034

RING

RING - backup, piston seal

1шт.

Part of Cylinder Packing Kit P/N G32269

1шт.

11

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O" ring, piston

1шт.

Part of Cylinder Packing Kit P/N G32269

1шт.

12

G32033

RING

RING - wear

1шт.

Part of Cylinder Packing Kit P/N G32269

1шт.

13

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

14

G34252

SPARE PART ROD - piston (1-1/2" dia.), Includes ef: 15

1шт.

15

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

BUSHING - rod

2шт.

16

221-849

PLUG,Hex Soc, 1/8"-27

PLUG - pipe, hex. socket (1/8" NPT)

1шт.

G32269

KIT

KIT - cylinder packing, Includes: Ref. 5, 6, 7, 8, 10, 11 and 12

1шт.

Выбрано товаров: 27
