Запчасти Case IH 1500-SERIES (144) - T40865 GRAPPLE CYLINDER (35) - HYDRAULIC SYSTEMS

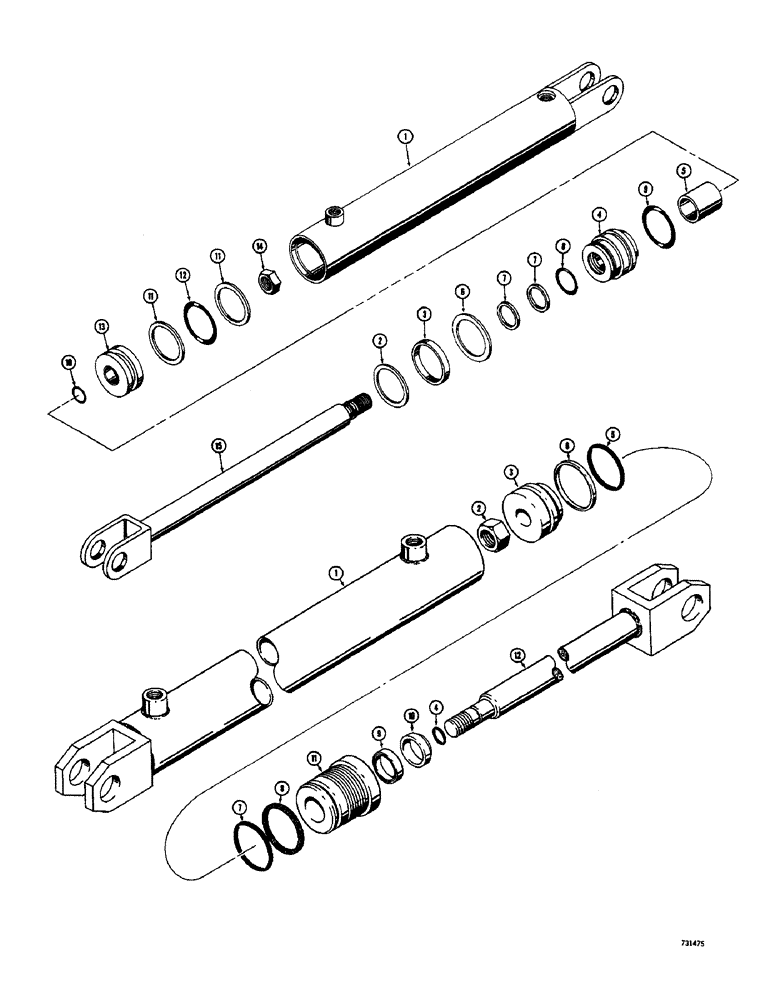

Схема запчастей Case IH 1500-SERIES - (144) - T40865 GRAPPLE CYLINDER (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

T40865

CYLINDER

hydraulic grapple (2-1/4" I.D. x 8" stroke) When stock is exhausted, order D61075 for service, Incl. Ref 1-15

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

T24080

SNAP RING,#175, Ext Spiral

spacer

1шт.

3

T24081

SPACER

gland

1шт.

4

T42253

HEAD

GLAND - packing

1шт.

5

T42254

BUSHING

bronze, gland

1шт.

T41499

SEAL

KIT - gland packing, Incl. Ref 6-12

1шт.

6

NSS

NOT SOLD SEPARAT

RING - lock, gland

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - rod

2шт.

8

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, rod

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - gland

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

11

NSS

NOT SOLD SEPARAT

RING - backup, piston

2шт.

12

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, piston

1шт.

13

T24084

PISTON

cylinder

1шт.

14

25-159

JAM NUT,Jam, 9/16"-18, G5

hex., jam (9/16" x 18 NF)

1шт.

15

T42252

PISTON

Incl. Ref 1" dia.

1шт.

D61075

CYLINDER

grapple (2" I.D. x 8" stroke), Incl. Ref 1-12

2шт.

1

D61010

TUBE

cylinder, grapple

1шт.

2

25-1512

JAM NUT,Jam, 3/4"-10, G5

hex., jam (3/4" - 16 NF), grapple cylinder

1шт.

3

D60996

PISTON

tube, grapple cylinder

1шт.

D61006

GASKET KIT

seal, cylinder, grapple, Incl. Ref 4-10

1шт.

4

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

piston (Inner), grapple cylinder

1шт.

5

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

piston (Outer), grapple cylinder

1шт.

6

D60995

RING

piston, grapple cylinder

1шт.

7

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

gland, grapple cylinder

1шт.

8

A35884

WASHER

backup, grapple cylinder

1шт.

9

D60999

WIPER SEAL

"U" cup, inner gland, grapple cylinder

1шт.

10

D60997

WIPER SEAL

rod, outer gland, grapple cylinder

1шт.

11

D61002

GLAND

cylinder, grapple

1шт.

12

D61011

ROD

cylinder (1" O.D.), grapple

1шт.

Выбрано товаров: 31
