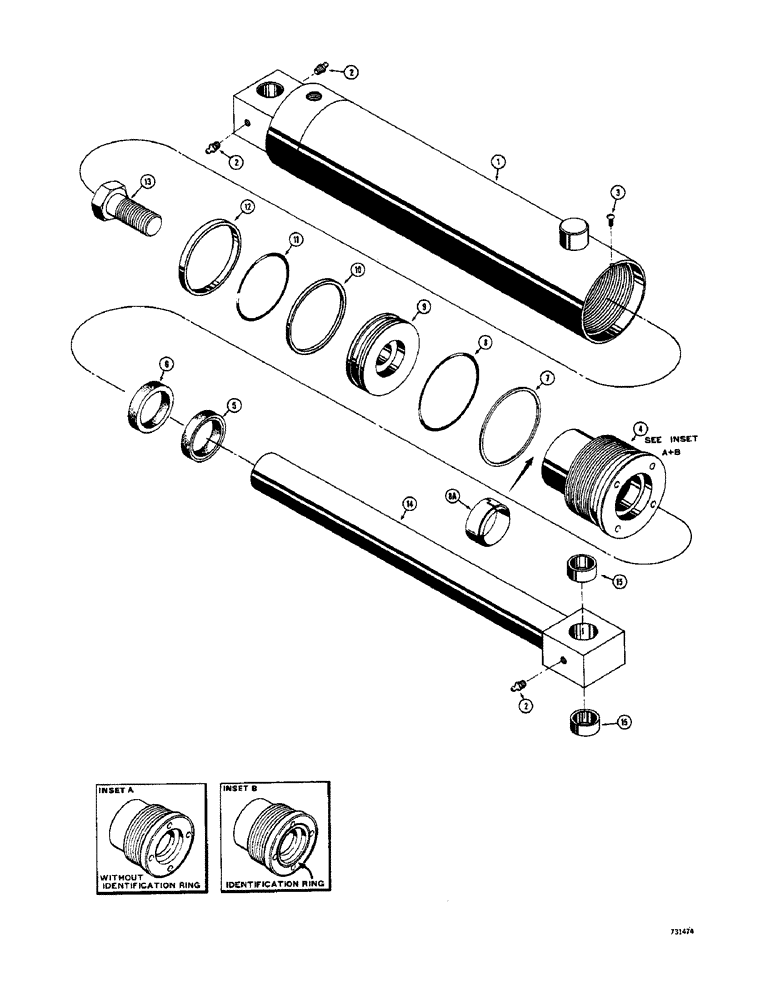

Запчасти Case IH 1500-SERIES (142) - G32030 BUCKET CYLINDER, WITHOUT GLAND IDENTIFICATION RING SERVICE REPLACEMENT (35) - HYDRAULIC SYSTEMS

G32030

CYLINDER

bucket (3" I.D. x 14-1/4" stroke) When stock is exhausted, order G33887 for service), Incl. Ref 1-15

2шт.

1

G32051

SPARE PART cylinder 21.44" L

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

3шт.

3

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

self-tapping (#8 - 32 NC x 1/4")

1шт.

G32797

GLAND

complete, Incl. Ref 4-8

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - packing (See inset A)

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - rod, outer; Part of Cylinder Packing Kit P/N G32269

1шт.

6

D36969

CUP

SEAL - rod; Part of Cylinder Packing Kit P/N G32269

1шт.

7

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

backup, gland seal; Part of Cylinder Packing Kit P/N G32269

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

gland; Part of Cylinder Packing Kit P/N G32269

1шт.

9

G32032

PISTON

cylinder

1шт.

10

G32034

RING

backup, piston seal; Part of Cylinder Packing Kit P/N G32269

1шт.

11

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

piston; Part of Cylinder Packing Kit P/N G32269

1шт.

12

G32033

RING

wear; Part of Cylinder Packing Kit P/N G32269

1шт.

13

328-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

14

G32057

ROD

piston (1-1/2" dia.), Incl. Ref 15

1шт.

15

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

rod

2шт.

G32269

KIT

cylinder packing, Incl. Ref 5, 6, 7, 8, 10, 11 and 12

1шт.

G33887

CYLINDER

bucket (3" I.D. x 14-1/4" stroke), G33887 with gland identification ring service replacement, Incl. Ref 1-15

2шт.

1

G32051

SPARE PART cylinder, G33888 lift with gland identification ring service replacement 21.44" L

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

G33888 lift cylinder with gland identification ring service replacement

3шт.

3

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

self-tapping (#8 - 32 NC x 1/4"), G33888 lift cylinder with gland identification ring service replacement

1шт.

G33485

GLAND

complete, G33888 lift cylinder with identification ring service replacement, Incl. Ref 4-8A

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - packing (See inset B), G33888 lift cylinder with identification ring service replacement

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - rod, outer, G33888 lift cylinder with gland identification ring service replacement; Part of Cylinder Packing Kit P/N G32269

1шт.

6

D36969

CUP

SEAL - rod, G33888 lift cylinder with gland identification ring service replacement; Part of Cylinder Packing Kit P/N G32269

1шт.

7

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

backup, gland seal, G33888 lift cylinder with identification service replacement; Part of Cylinder Packing Kit P/N G32269

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

gland, G33888 lift cylinder with identification service replacement; Part of Cylinder Packing Kit P/N G32269

1шт.

8a

D27706

WIPER SEAL

WIPER - rod, inner (Used on repair gland only), G33888 lift cylinder with identification ring service replacement

1шт.

9

G33747

PISTON

cylinder, G33888 lift with gland identification ring service replacement

1шт.

10

G32034

RING

backup, piston seal, G33888 lift cylinder with gland identification service replacement; Part of Cylinder Packing Kit P/N G32269

1шт.

11

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

piston, G33888 lift cylinder with gland identification service replacement; Part of Cylinder Packing Kit P/N G32269

1шт.

12

G32033

RING

wear, G33888 lift cylinder with gland identification service replacement; Part of Cylinder Packing Kit P/N G32269

1шт.

13

328-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

G33888 lift cylinder with gland identification ring service replacement

1шт.

14

G33753

ROD

piston (1-1/2" dia.), G33888 lift cylinder with gland identification ring service replacement, Incl. Ref 15

1шт.

15

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

rod, G33888 lift cylinder with gland identification ring service replacement

2шт.

G32269

KIT

cylinder packing, Incl. Ref 5, 6, 7, 8, 10, 11 and 12, G33888 lift with gland identification ring service replacement

1шт.
