Запчасти Case IH 1500-SERIES (140) - T40191 BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

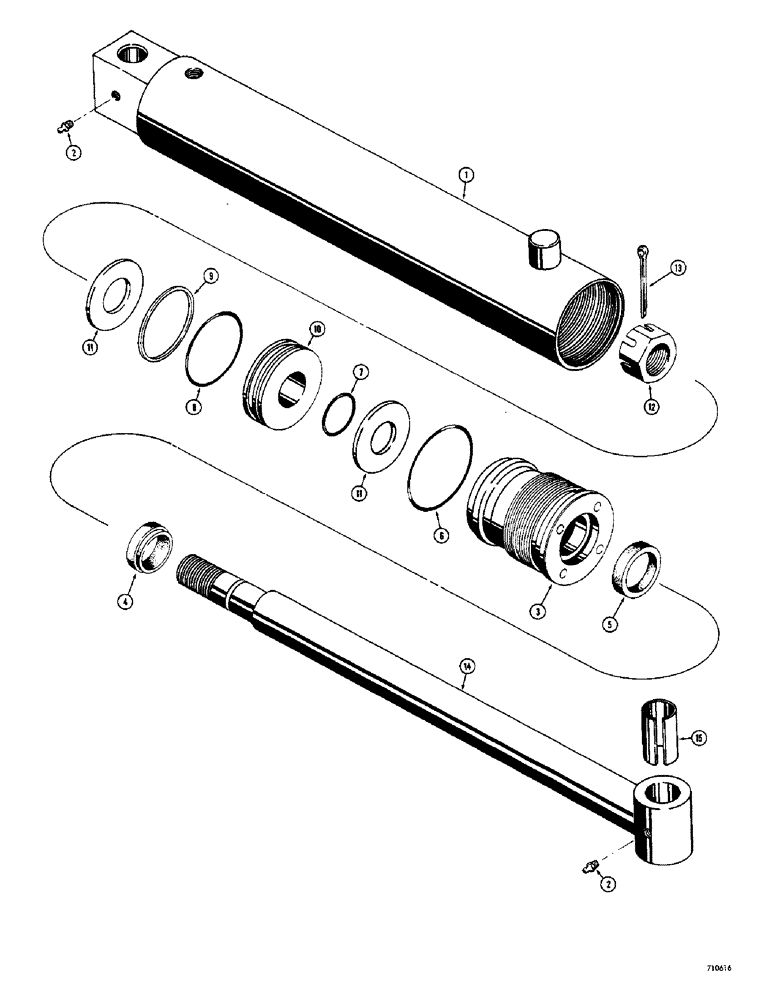

Схема запчастей Case IH 1500-SERIES - (140) - T40191 BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

T40191

CYLINDER

bucket (3" I.D. x 14-1/4" stroke) Use G32030 cylinder for service - parts list Fig. 142, Incl. Ref 1-15

2шт.

1

G34119

TUBE,3" ID x 21.12" L

cylinder

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

3

T40200

GLAND

packing

1шт.

T40055

SEAL KIT

KIT - cylinder packing, Incl. Ref 4-9

1шт.

4

NSS

NOT SOLD SEPARAT

WIPER - rod, outer

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

6

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

gland

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, piston rod

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, piston

1шт.

9

NSS

NOT SOLD SEPARAT

RING - piston, backup

1шт.

10

T40198

JOINT

PISTON - cylinder

1шт.

11

T40195

SPARE PART thrust (Special)

2шт.

12

25-2316

SLOTTED NUT

hex., castle (1" x 14 NF)

1шт.

13

132-95

COTTER PIN,3/16" x 1 1/2"

1шт.

14

T40193

SHAFT

piston (1-1/2" dia.), Incl. Ref 15

1шт.

15

T40194

BUSHING

rod

1шт.

Выбрано товаров: 17
