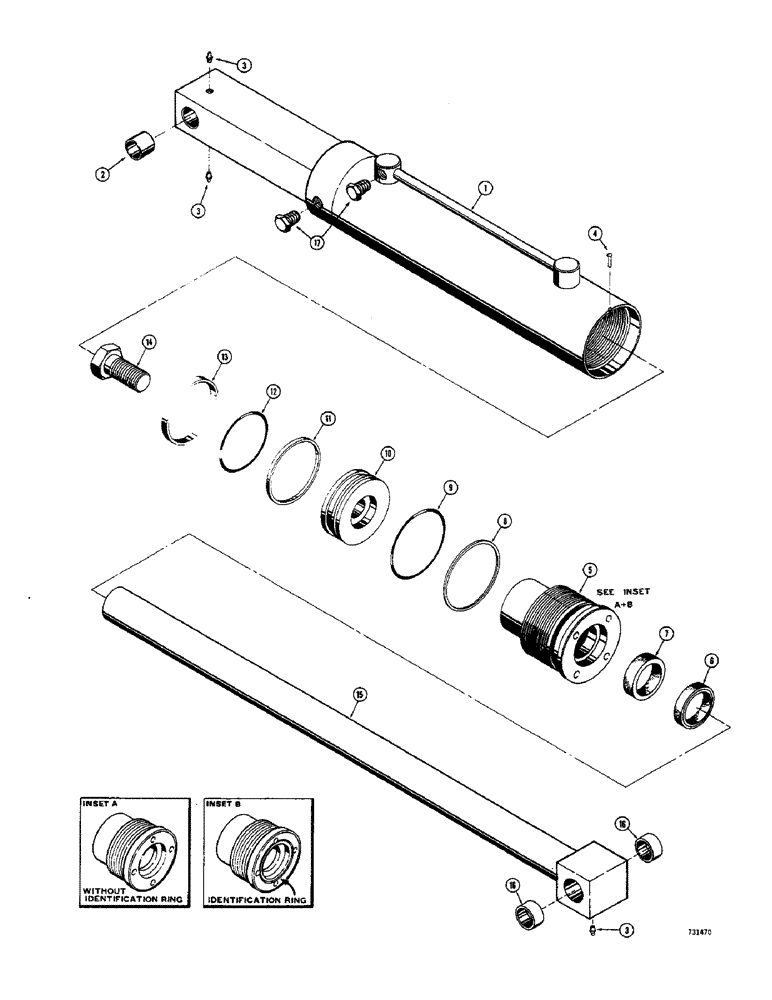

Запчасти Case IH 1500-SERIES (138) - G32029 LIFT CYLINDER, HAS SOLID OUTER ROD WIPER W/O GLAND IDENTIFICATION RING SERVICE REPLACEMENT (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
G32029
SPARE PART lift (3" x 28-1/32), Incl. Ref 1-17
1шт.
1
G32035
SPARE PART cylinder, Includes Ref: 2 2.996" ID x 38.02" L
1шт.
2
G32938
BUSHING
tube
2шт.
3
219-1
LUBE NIPPLE,1/8" - 27 NPTF
2-3шт.
4
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
self-tapping (#8 - 32 NC x 1/4")
1шт.
G32797
GLAND
complete, Incl. Ref 5-9
1шт.
5
NSS
NOT SOLD SEPARAT
GLAND - packing (See inset A)
1шт.
6
D95142
WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk
WIPER - rod, outer; Part of Cylinder Packing Kit P/N G32269
1шт.
7
D36969
CUP
SEAL - rod; Part of Cylinder Packing Kit P/N G32269
1шт.
8
G32122
BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk
backup, gland seal; Part of Cylinder Packing Kit P/N G32269
1шт.
9
A30095
O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro
gland; Part of Cylinder Packing Kit P/N G32269
1шт.
10
G32032
PISTON
cylinder
1шт.
11
G32034
RING
backup, piston seal; Part of Cylinder Packing Kit P/N G32269
1шт.
12
A28318
O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro
piston; Part of Cylinder Packing Kit P/N G32269
1шт.
13
G32033
RING
wear; Part of Cylinder Packing Kit P/N G32269
1шт.
14
328-1232
BOLT,Hex, 3/4" - 16 x 2", Gr 8
1шт.
15
G32046
ROD
piston, cylinder (1-1/2" dia.), Incl. Ref 16
1шт.
16
G32050
BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L
piston rod
2шт.
17
221-663
PLUG,Hex Hd, 3/8"-18
SPARE PART hex. head (3/8" NPT)
2шт.
G32269
KIT
cylinder packing, Incl. Ref 6, 7, 8, 9, 11, 12 and 13
1шт.
G33888
LIFT CYLINDER
3" I.D. x 28-1/32" stroke, G33888 lift cylinder with gland identification ring service replacement, Incl. Ref 1-17
1шт.
1
G32936
TUBE,2.996" ID x 38.03" L
cylinder, G33888 lift with gland identification ring service replacement, Incl. Ref 2
1шт.
2
G32938
BUSHING
tube, G33888 lift cylinder with gland identification ring service replacement
2шт.
3
219-1
LUBE NIPPLE,1/8" - 27 NPTF
G33888 lift cylinder with gland identification ring service replacement
2-3шт.
4
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
self-tapping (#8 - 32 NC x 1/4"), G33888 lift cylinder with gland identification ring service replacement
1шт.
G33485
GLAND
complete, G33888 lift cylinder with identification ring service replacement, Incl. Ref 5-9
1шт.
5
NSS
NOT SOLD SEPARAT
GLAND - packing (See inset B), G33888 lift cylinder with identification ring service replacement
1шт.
6
D95142
WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk
WIPER - rod, outer, G33888 lift cylinder with gland identification ring service replacement; Part of Cylinder Packing Kit P/N G32269
1шт.
7
D36969
CUP
SEAL - rod, G33888 lift cylinder with gland identification ring service replacement; Part of Cylinder Packing Kit P/N G32269
1шт.
8
G32122
BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk
backup, gland seal, G33888 lift cylinder with identification service replacement; Part of Cylinder Packing Kit P/N G32269
1шт.
9
A30095
O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro
gland, G33888 lift cylinder with identification service replacement; Part of Cylinder Packing Kit P/N G32269
1шт.
10
G33747
PISTON
cylinder, G33888 lift with gland identification ring service replacement
1шт.
11
G32034
RING
backup, piston seal, G33888 lift cylinder with gland identification service replacement; Part of Cylinder Packing Kit P/N G32269
1шт.
12
A28318
O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro
piston, G33888 lift cylinder with gland identification service replacement; Part of Cylinder Packing Kit P/N G32269
1шт.
13
G32033
RING
wear, G33888 lift cylinder with gland identification service replacement; Part of Cylinder Packing Kit P/N G32269
1шт.
14
328-1232
BOLT,Hex, 3/4" - 16 x 2", Gr 8
G33888 lift cylinder with gland identification ring service replacement
1шт.
15
G33755
ROD
piston (1-1/2" dia.), G33888 lift cylinder with gland identification ring service replacement, Incl. Ref 16
1шт.
16
G32050
BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L
piston rod, G33888 lift cylinder with gland identification ring service replacement
2шт.
17
221-663
PLUG,Hex Hd, 3/8"-18
SPARE PART hex., head (3/8" NPT), G33888 lift cylinder with gland identification ring service replacement
2шт.
G32269
KIT
cylinder packing, Incl. Ref 6, 7, 8, 9, 11, 12 and 13, G33888 lift with gland identification ring service replacement
1шт.
Выбрано товаров: 40
