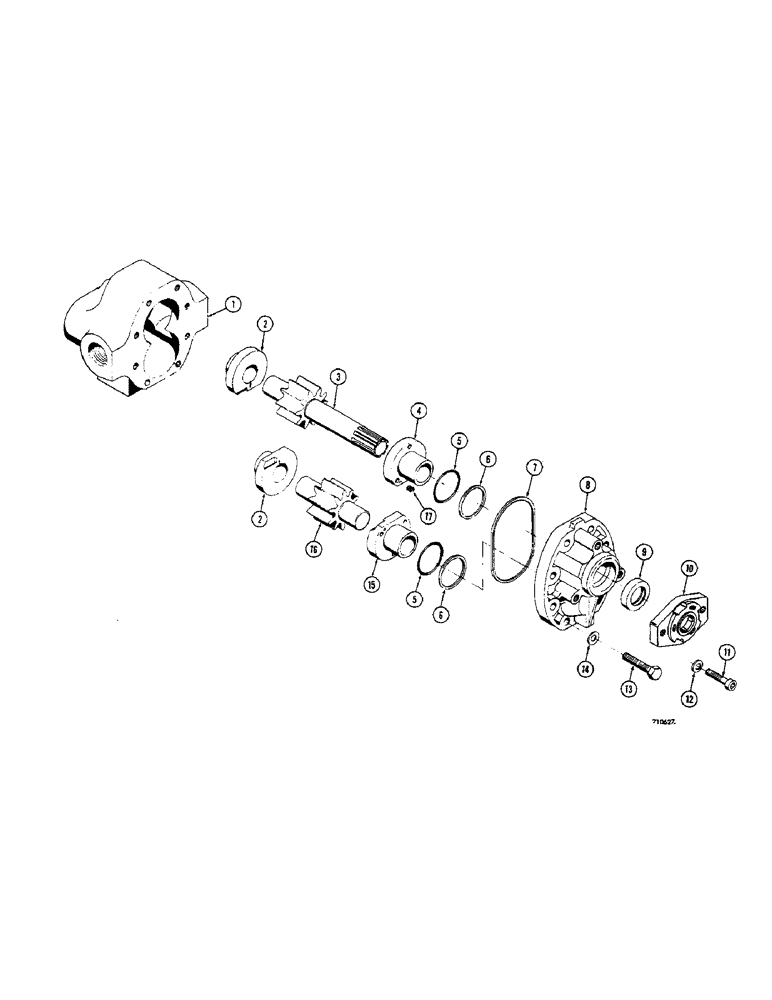

Запчасти Case IH 1500-SERIES (078[A]) - HYDRAULIC PUMP - SPLINED SHAFT USED ON SN. 9813331 AND AFTER (35) - HYDRAULIC SYSTEMS

T41505

PUMP

hydraulic (Dana #PO15AA204-2), Incl. Ref 1-16

1шт.

D59662

PUMP

PUMP - hydraulic (Dana #PO15AA205-2), Incl. Ref 1-16

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

2

D59672

BEARING

gears (D59662 pump)

2шт.

2

T40173

NO LONGER SERVICED

SLEEVE gears (T41505 pump)

2шт.

3

T41834

SHAFT

drive, splined

1шт.

4

T40166

COVER

SLEEVE drive shaft

1шт.

5

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

Part of Seal Kit P/N T40250

2шт.

6

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

Part of Seal Kit P/N T40250

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET; Part of Seal Kit P/N T40250

1шт.

8

T40161

COVER

pump body

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - oil; Part of Seal Kit P/N T40250

1шт.

10

T41833

FLASHER UNIT

FLANGE - mounting

1шт.

11

61-516

HEX SOC SCREW,5/16"-18 x 1"

hex. socket head (5/16" - 18 NC x 1")

3шт.

12

T40160

SPARE PART

3шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

14

T40163

WASHER

8шт.

15

T40167

COVER ASSY

SLEEVE driven shaft

1шт.

16

T40172

SHAFT

GEAR - driven

1шт.

17

T40168

SPRING

6шт.

T40250

SEAL

KIT - Incl. Ref 5, 6, 7 and 9

1шт.
