Запчасти Case IH 1500-SERIES (076[A]) - 6 MOUNTING HOLES IN HEAD SERVICE DEPARTMENT (35) - HYDRAULIC SYSTEMS

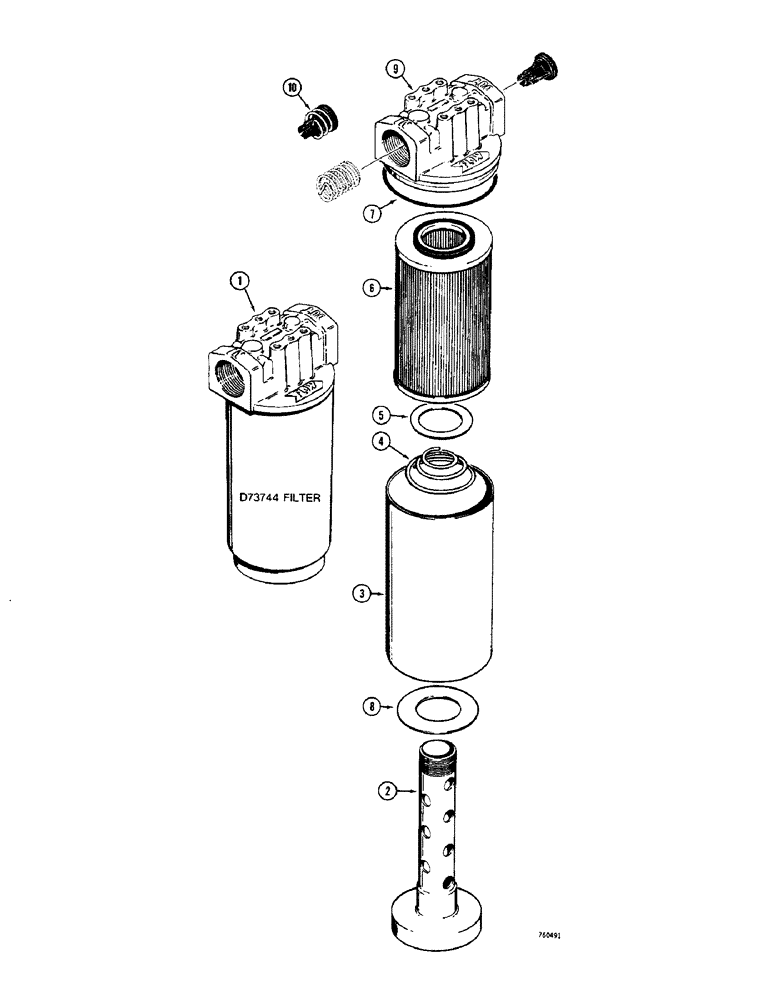

Схема запчастей Case IH 1500-SERIES - (076[A]) - 6 MOUNTING HOLES IN HEAD SERVICE DEPARTMENT (35) - HYDRAULIC SYSTEMS
6
1
3
4
7
10
8
9
5
2

Артикул

Название

Примечание

Количество

1

D73744

FILTER, ENGINE OIL

FILTER, OIL hydraulic oil, Incl. Ref 2-10

1шт.

L36030

HOUSING

with filter, Incl. Ref 2-5

1шт.

2

T29796

SUPPORT

CENTER POST - filter

1шт.

3

T29794

HOUSING

filter

1шт.

4

T29793

SPRING

filter element

1шт.

5

T42195

WASHER

backup

2шт.

D73743

ELEMENT

Incl. Ref 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.

7

W12214

GASKET

filter head

1шт.

8

T29795

GASKET

, Serial Range: post-housing

1шт.

9

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

10

D73742

SPARE PART VALVE

1шт.

Выбрано товаров: 12
