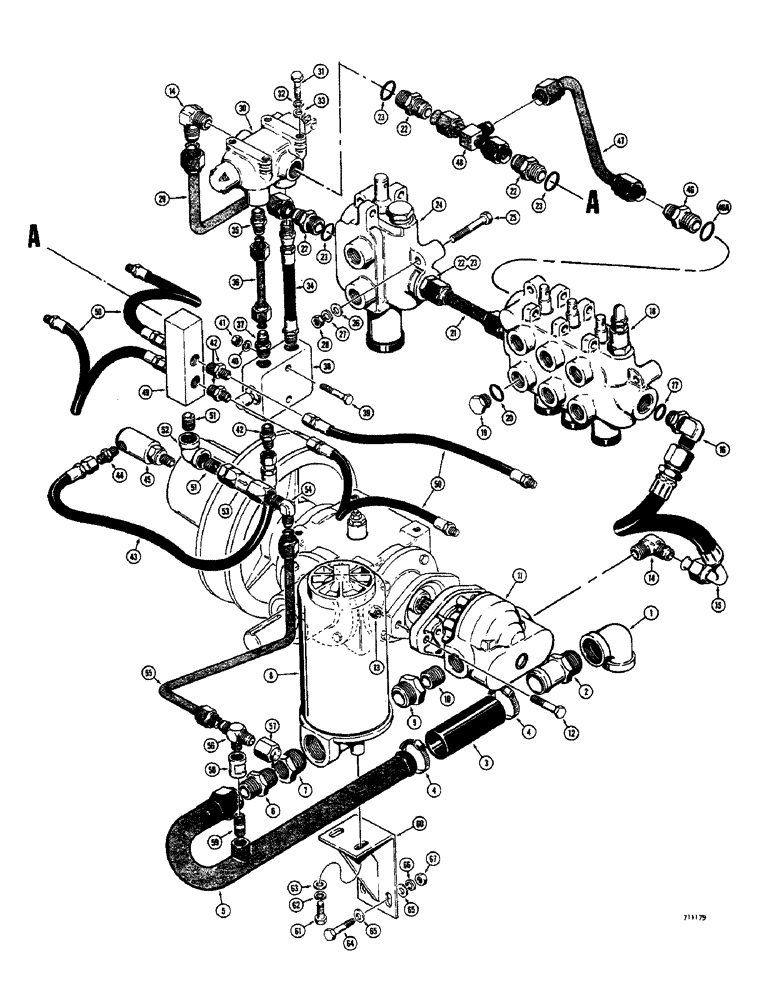

Запчасти Case IH 1500-SERIES (069A) - BASIC HYDRAULIC SYSTEM, MODELS WITH INTERNAL HIGH PRESSURE RELIEF (35) - HYDRAULIC SYSTEMS

1

221-380

ELBOW,90 Degree, 1 1/4" NPT

ELBOW - pipe, 90 degrees (1-1/4" NPT)

1шт.

2

217-157

FITTING,1-1/4" Hose Barb x 1-1/4" Male NPTF

STEM - hose

1шт.

3

18361

HOSE,1.25" ID x 5.00", SAE 100R3

suction (5" long)

1шт.

4

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

5

T41767

TUBE,16.5, 3.5" L

suction

1шт.

6

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

ADAPTER - male, straight

1шт.

7

221-609

REDUCER,Hex, 1 1/4" x 1" NPT

reducing (1-1/4" NPT x 1" NPT)

1-2шт.

8

D73744

FILTER, ENGINE OIL

FILTER, OIL parts list Fig. 76 (Replaces T40141)

1шт.

9

217-1082

HYD CONNECTOR,1-1/4" - 11-1/2 NPTF x 1" - 11-1/2 NPTF

NIPPLE - pipe, reducing (1-1/4" NPT x 1" NPT)

1шт.

10

221-236

PIPE,Nipple, 1" NPT x 1 1/2"

NIPPLE - pipe, close (1" NPT)

1шт.

11

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic (See Figs.78 and 78(1) for proper pump)

1шт.

12

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

2шт.

13

131-1111

LOCK NUT,7/16"-14, GA

2шт.

14

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

90 degrees, male

2шт.

15

T41768

SLEEVE

to tilt cylinder valve (14-1/2" long)

1шт.

16

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adj., Incl. Ref 17

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

D55019

VALVE

tilt cylinder and auxiliary hydraulic, three-spool (Parts list Fig. 85A)

1шт.

19

86512512

PLUG,7/8" - 14 ORB

Auxiliary valve ports (If used), Incl. Ref 20

4шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

21

D53478

TUBE

three spool tilt valve to lift valve

1шт.

22

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Male, straight, Incl. Ref 23

4шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

24

T40137

VALVE

lift cylinder (Parts list Fig. 82)

1шт.

25

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

26

195-25

WASHER,3/8"

4шт.

27

92-6

LOCK WASHER,3/8"

4шт.

28

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC)

4шт.

29

T40278

HYD TUBE

lift valve to control valve

1шт.

30

D52845

HYDRAULIC VALVE

variable speed control (Parts list Fig. 80)

1шт.

31

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

32

92-6

LOCK WASHER,3/8"

4шт.

33

195-25

WASHER,3/8"

4шт.

34

T42406

SPARE PART to lock valve (8-1/3" long) If used

2шт.

35

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

male, straight (Used with T41762 tubes only)

2шт.

36

T41762

TUBE,0.375" OD x 4.50, 0.34" L

to lock valve

2шт.

37

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

male, straight (Used with T41762 tubes only)

2шт.

38

T42651

VALVE

lock (Parts list Fig. 86)

1шт.

39

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

40

92-5

LOCK WASHER,5/16"

1шт.

41

9635082

NUT,5/16" - 18, Gr 5

1шт.

42

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

male, straight

5шт.

43

T42273

HYDRAULIC HOSE,0.25" ID x 11.50", SAE 100R3

Lock valve to rotary coupling

1шт.

44

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

Adapter, Male, straight

1шт.

45

T42355

COUPLING, BREAK AWAY

rotary (Parts list Fig. 86)

1шт.

46

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Male, straight, Incl. Ref 46A

1шт.

46a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

47

D53451

TUBE

control, Serial Range: valve-manifold

1шт.

48

D53440

TUBE

at manifold

1шт.

49

T40134

HYDRAULIC MANIFOLD

1шт.

50

T40300

HYDRAULIC HOSE,0.25" ID x 15.75", SAE 100R3

Manifold to clutch shaft

4шт.

51

221-221

PIPE,Nipple, 3/4" NPT x 5"

2шт.

52

221-378

ELBOW,90 Degree, 3/4" NPT

90 degrees (3/4" NPT)

1шт.

53

T33711

VALVE

return line

1шт.

54

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

male, 90 degrees

1шт.

55

T40289

TUBE

to suction tube

1шт.

56

218-555

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

TEE - male (Tube to pipe)

1шт.

57

218-756

CAP,37 Degree, 7/8"-14

Hydraulic

1шт.

58

221-339

COUPLING,Pipe, 3/4" NPT

pipe (1/2" NPT)

1шт.

59

221-187

PIPE,Nipple, 1/2" NPT x 1 1/2"

1/2" NPT x 1-1/2" (If used)

1шт.

60

T41067

BRACKET

hydraulic oil filter

1шт.

61

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

62

92-5

LOCK WASHER,5/16"

2шт.

63

195-21

WASHER,5/16"

HHCS - 3/8" - 16 NC x 1-1/4"

2шт.

65

195-2034

WASHER,7/16" x 1 1/4" x .134"

plain (3/8")

4шт.

66

92-6

LOCK WASHER,3/8"

2шт.

67

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC)

2шт.
