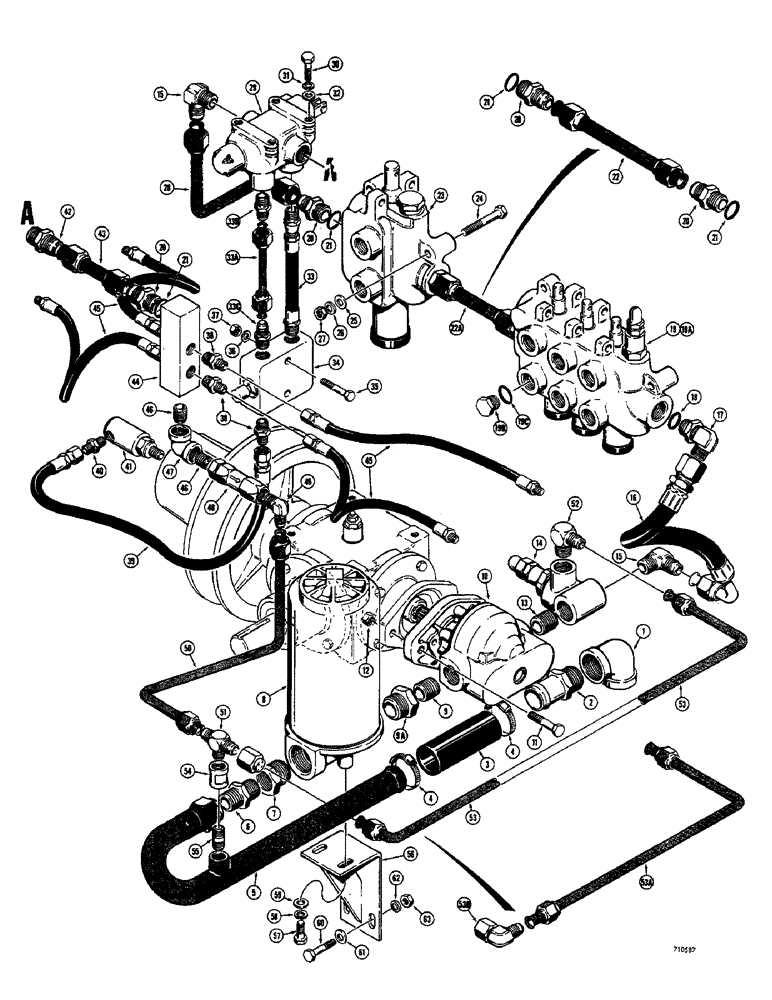

Запчасти Case IH 1500-SERIES (066) - BASIC HYDRAULIC SYSTEM, MODELS WITH EXTERNAL HIGH PRESSURE RELIEF (35) - HYDRAULIC SYSTEMS

1

221-380

ELBOW,90 Degree, 1 1/4" NPT

ELBOW - pipe, 90 degrees (1-1/4" NPT)

1шт.

2

217-157

FITTING,1-1/4" Hose Barb x 1-1/4" Male NPTF

STEM - hose

1шт.

3

18361

HOSE,1.25" ID x 5.00", SAE 100R3

suction (5" long)

1шт.

4

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

5

T41767

TUBE,16.5, 3.5" L

suction

1шт.

6

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

ADAPTER - male, straight

1шт.

7

221-609

REDUCER,Hex, 1 1/4" x 1" NPT

reducing (1-1/4" NPT x 1" NPT)

1-2шт.

8

T40141

FILTER

parts list Fig. 76

1шт.

9

221-236

PIPE,Nipple, 1" NPT x 1 1/2"

pipe, close (1" NPT) If used

1шт.

9a

217-1082

HYD CONNECTOR,1-1/4" - 11-1/2 NPTF x 1" - 11-1/2 NPTF

pipe, reducing (1-1/4" NPT x 1" NPT) If used

1шт.

10

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic (See Fig. 78 for proper pump)

1шт.

11

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

2шт.

12

131-1111

LOCK NUT,7/16"-14, GA

2шт.

13

221-717

PIPE,Nipple, 3/4" NPT x 1 3/8"

pipe, close (Extra strong)

1шт.

14

T40135

VALVE

parts list Fig. 80

1шт.

15

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

90 degrees, male

2шт.

16

T41768

SLEEVE

to tilt cylinder valve (14-1/2" long)

1шт.

17

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adj., Incl. Ref 18

1шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

19

T40138

VALVE

tilt cylinder, one-spool (Parts list Fig. 82) If used

1шт.

19a

T40083

VALVE ASSEMBLY - tilt cylinder and auxiliary hydraulic, three-spool (Parts list Fig. 84) If used

1шт.

19b

86512512

PLUG,7/8" - 14 ORB

Auxiliary valve ports (If used), Incl. Ref 19C

4шт.

19c

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Male, straight, Incl. Ref 21

4шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

T40287

HYD TUBE

one spool tilt valve to lift valve (If used)

1шт.

22a

T40260

TUBE

three spool tilt valve to lift valve (If used)

1шт.

23

T40137

VALVE

lift cylinder (Parts list Fig. 82)

1шт.

24

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

25

195-25

WASHER,3/8"

4шт.

26

92-6

LOCK WASHER,3/8"

4шт.

27

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC)

4шт.

28

T40278

HYD TUBE

lift valve to control valve

1шт.

29

D52845

HYDRAULIC VALVE

variable speed control (Parts list Fig. 80)

1шт.

30

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

31

92-6

LOCK WASHER,3/8"

4шт.

32

195-25

WASHER,3/8"

4шт.

33

T42406

SPARE PART to lock valve (8-1/2" long) If used

2шт.

33a

T41762

TUBE,0.375" OD x 4.50, 0.34" L

to lock valve (If used)

2шт.

33b

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

male, straight (Used with T41762 tubes only)

2шт.

33c

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

male, straight (Used with T41762 tubes only)

2шт.

34

T42651

VALVE

lock (Parts list Fig. 86)

1шт.

35

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

36

92-5

LOCK WASHER,5/16"

1шт.

37

9635082

NUT,5/16" - 18, Gr 5

1шт.

38

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

male, straight

5шт.

39

T42273

HYDRAULIC HOSE,0.25" ID x 11.50", SAE 100R3

Lock valve to rotary coupling

1шт.

40

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

Male, straight

1шт.

41

T42355

COUPLING, BREAK AWAY

rotary (Parts list Fig. 86)

1шт.

42

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

male, straight

1шт.

43

T40288

HYD TUBE,0.75" OD x 6.12" L

control valve to manifold

1шт.

44

T40134

HYDRAULIC MANIFOLD

1шт.

45

T40300

HYDRAULIC HOSE,0.25" ID x 15.75", SAE 100R3

Manifold to clutch shaft

4шт.

46

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

pipe, close (3/4" NPT)

2шт.

47

221-378

ELBOW,90 Degree, 3/4" NPT

90 degrees (3/4" NPT)

1шт.

48

T33711

VALVE

CHECK - return line

1шт.

49

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

male, 90 degrees

1шт.

50

T40289

TUBE

to suction tube

1шт.

51

218-555

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

TEE - male (Tube to pipe)

1шт.

52

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

Male

1шт.

53

T40290

HYD TUBE

relief valve return (When stock is exhausted, order (1) D53254 tube and (1) 218-5232 elbow)

1шт.

53a

D53254

TUBE

relief valve return

1шт.

53b

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Adj.

1шт.

54

221-339

COUPLING,Pipe, 3/4" NPT

pipe (1/2" NPT)

1шт.

55

221-187

PIPE,Nipple, 1/2" NPT x 1 1/2"

1/2" NPT x 1-1/2" (If used)

1шт.

56

T41067

BRACKET

hydraulic oil filter

1шт.

57

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

58

92-5

LOCK WASHER,5/16"

2шт.

59

195-21

WASHER,5/16"

2шт.

60

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

61

195-2034

WASHER,7/16" x 1 1/4" x .134"

plain (3/8")

4шт.

62

92-6

LOCK WASHER,3/8"

2шт.

63

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC)

2шт.
