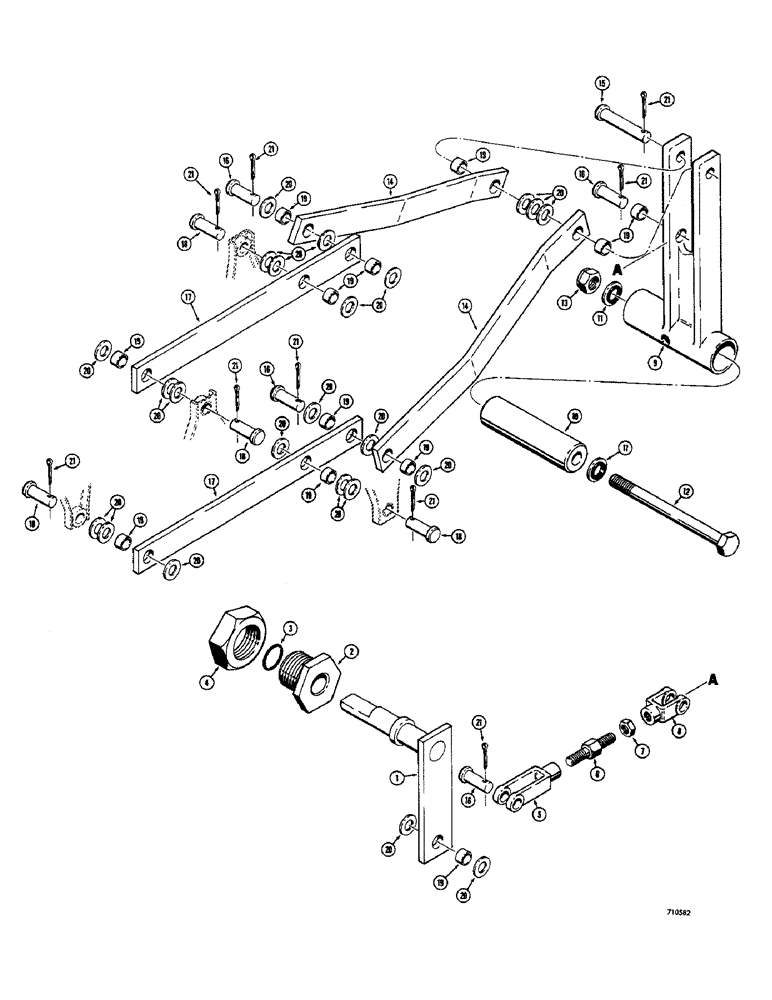

Запчасти Case IH 1500-SERIES (054) - CLUTCH LINKAGE AND PIVOT ARM (18) - CLUTCH

1

T40059

SHAFT

lever, clutch actuator

2шт.

2

T40060

MOUNTING PARTS

clutch actuator

2шт.

3

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

Shaft

2шт.

4

25-1524

JAM NUT,Jam, 1 1/2"-12, G5

hex, jam (1-1/2" - 12 NF)

2шт.

5

T41263

YOKE

UNIVERSAL JOINT YOKE connecting rod (3/8" - 24 NF L.H. thread)

2шт.

6

T40056

CLEVIS

ROD - connecting

2шт.

7

25-156

JAM NUT,Jam, 3/8"-24, G5

hex., jam (3/8" - 24 NF)

2шт.

8

T40057

YOKE

UNIVERSAL JOINT YOKE connecting rod (3/8" - 24 NF R.H. thread)

2шт.

9

T40052

ARM

pivot

2шт.

10

T40058

BUSHING

pivot arm

2шт.

11

T42588

WASHER

seal, 1/2"

4шт.

12

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

13

131-10

NUT,1/2"-13, GB

2шт.

14

T40063

STRAP

clutch engaging

4шт.

15

T40053

AXLE PIN

clevis, 3/8" dia. x 2-1/8"

2шт.

16

T40054

CLEVIS PIN

3/8" dia. x 1-3/32"

8шт.

17

T40064

LINKAGE

clutch control

4шт.

18

T40062

CLEVIS

clevis, 3/8" dia. x 1" (Use with clutch cams having welded bar lug)

8шт.

18

T42258

PIN

clevis, 3/8" dia. x 1-1/4" (Use with clutch cams that are single piece stamping with 7/16" thickness at lug bushing)

8шт.

18

T40054

CLEVIS PIN

3/8" dia. x 1-3/32" (Use with clutch cams that are single piece stamping with 11/32" thickness at lug bushing)

8шт.

19

T40061

BUSHING

bronze, links and straps

24шт.

20

195-25

WASHER,3/8"

1шт.

21

132-46

COTTER PIN,1/8" x 3/4"

18шт.
