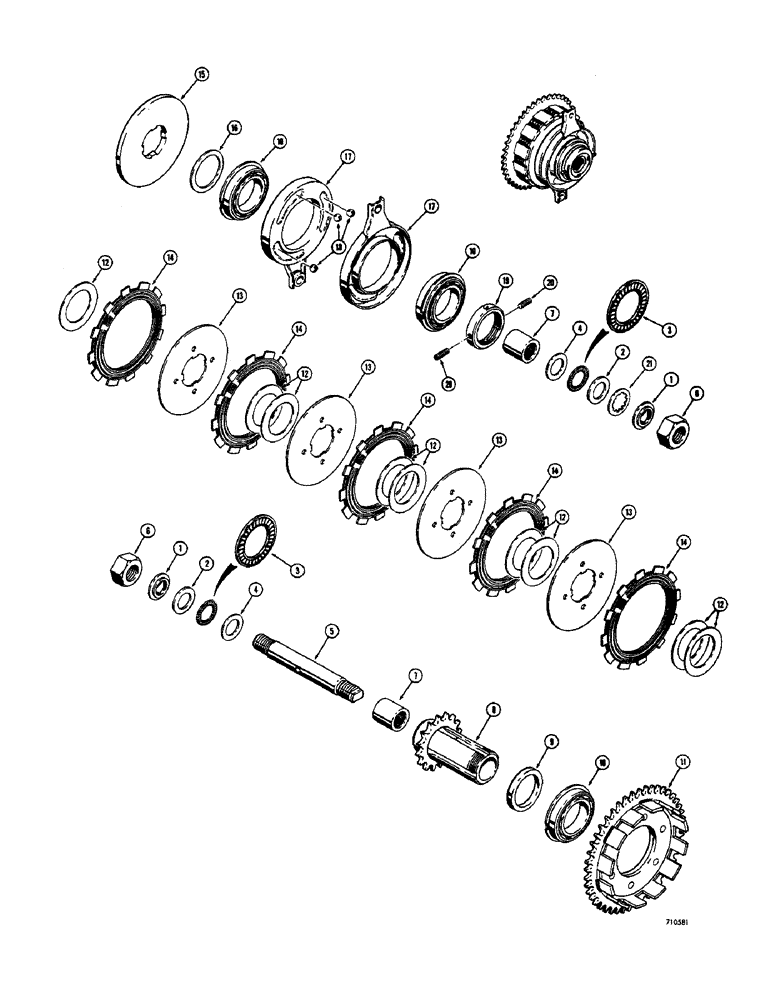

Запчасти Case IH 1500-SERIES (052) - MULTIPLE DISC CLUTCH AND SHAFT ASSEMBLY, ORIGINAL EQUIPMENT (18) - CLUTCH

1

T40065

WASHER

seal (7/8")

8шт.

2

G46081

BEARING WASHER

thrust

8шт.

3

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

8шт.

4

T40066

WASHER,25.58mm ID x 39.17mm OD x 1.56mm Thk

thrust

8шт.

5

T40024

SHAFT

clutch

4шт.

6

25-1114

NUT,7/8"-14, G5

hex. (7/8" - 14 NF)

8шт.

T42260

CLUTCH

with bearings (When stock is exhausted, order (1) D55802 clutch, (2) T40054 pins and (4) 195-25 washers) See Fig. 53A for D55802 clutch, Incl. Ref 7-20

4шт.

D54926

CLUTCH

with bearings, Incl. Ref 7-20

4шт.

7

T40012

NEEDLE BEARING

needle

2шт.

8

D55928

HUB

clutch

1шт.

9

T41005

SPARE PART clutch

1шт.

10

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

cam

3шт.

11

T40015

CAP

drive, welded construction (When stock is exhausted, order D53324)

1шт.

11

D53324

CUP ASSY.

drive, riveted construction

1шт.

12

T42270

KIT

SPRING SET - release (Set of 9)

1шт.

13

D54830

DISC

separator

4шт.

14

T40018

DISC

friction

5шт.

15

T40019

PLATE ASSY.

pressure

1шт.

16

T40020

BUSHING

pressure plate

1шт.

17

T40021

CAM

early production, with welded bar lug (Use D52917 cam kit listed below)

2шт.

17

T42271

CAM

intermediate production, single piece stamping (7/16") thick at lug bushing) Use D52917 cam kit listed below

2шт.

17

D54633

CAM

late production, single piece stamping (11/32" thick at lug bushing)

2шт.

18

211-12

BALL,7/16 Dia

cam

3шт.

19

T40023

COLLAR

NUT - adjusting

1шт.

20

83-412

SET SCREW,Socket, 1/4" - 20 x 3/4", AST

1/4" - 20 NC x 3/4" (Adj. nut)

2шт.

21

T40067

LOCK

RING - clutch retainer

4шт.

D52917

CLUTCH

KIT - clutch cam, Incl. Ref 17, 18

4шт.

17

D54633

CAM

single piece stamping (11/32" thick at lug bushing)

2шт.

T40054

CLEVIS PIN

1-3/32" (D52870 cam only) See Fig. 54 for illustration and pins used with T40021 and T42271 cams

2шт.

195-25

WASHER,3/8"

T40054 pin spacing

4шт.

132-46

COTTER PIN,1/8" x 3/4"

T40054 pin

2шт.

18

211-12

BALL,7/16 Dia

cam

3шт.
