Запчасти Case IH 1500-SERIES (050) - CHAIN TIGHTENERS, NO. 50 CHAIN TIGHTENER BRACKET (14) - MAIN GEARBOX & DRIVE

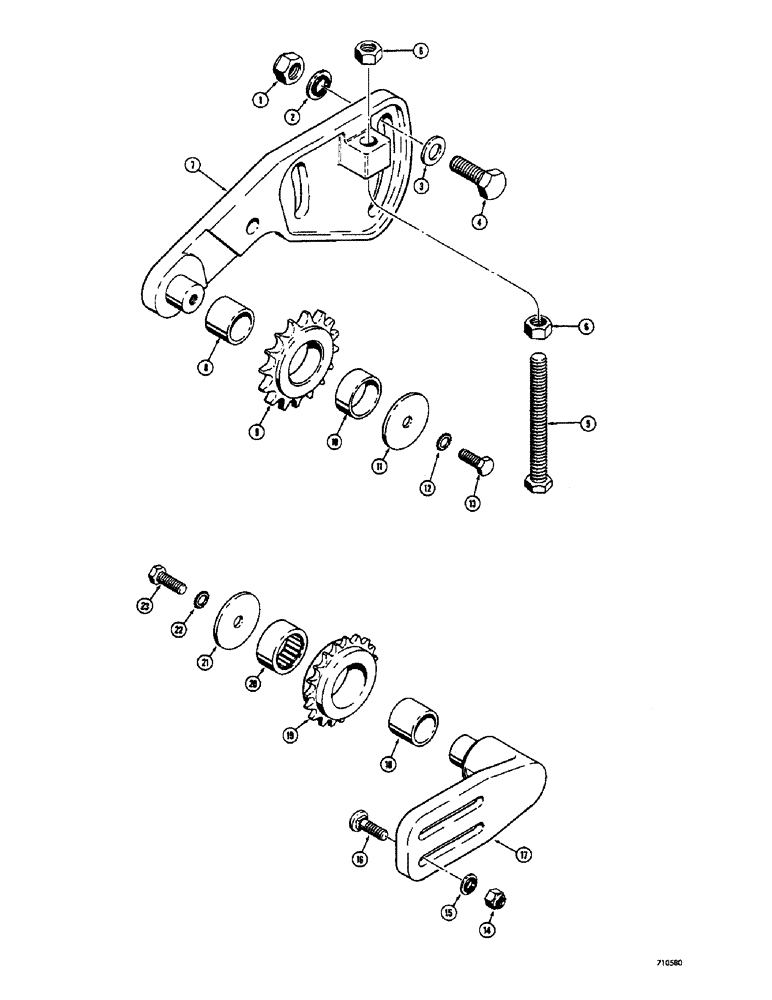

Схема запчастей Case IH 1500-SERIES - (050) - CHAIN TIGHTENERS, NO. 50 CHAIN TIGHTENER BRACKET (14) - MAIN GEARBOX & DRIVE

Артикул

Название

Примечание

Количество

1

131-675

LOCK NUT,9/16"-18, GB

hex., lock (9/16" - 18 NF)

6шт.

2

T42479

WASHER

special, sealing

6шт.

3

D53272

WASHER

special, heat treated

4шт.

4

14-924

BOLT,Hex, 9/16" - 18 x 1-1/2", Gr 5, Full Thd

HHCS - 9/16" - 18 NF x 1-1/2"

4шт.

4a

14-928

BOLT,Hex, 9/16" - 18 x 1-3/4", Gr 5, Full Thd

HHCS - 9/16" - 18 NF x 1-3/4"

2шт.

5

113-469

BOLT,Hex, 1/2" - 13 x 5", Gr 5, Full Thd

2шт.

6

25-108

NUT,1/2"-13, G5

Hex

6шт.

T41077

BRACKET

tightener, R.H., Incl. Ref 7, 8

1шт.

T41079

BRACKET

BRACKET ASSEMBLY - tightener, L.H., Incl. Ref 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

BRACKET - tightener

1шт.

8

T40032

BEARING

RACE - bearing, inner

1шт.

8a

195-2121

WASHER,1 5/16" x 2" x .065"

WASHER - flat, 1-5/16" (D54829 sprocket)

2шт.

T41078

DRIVE SPROCKET

tightener, needle bearing (Use T42468 sprocket assembly for service), Incl. Ref 9, 10

2шт.

T42468

SPROCKET ASSY.

tightener, .687" thick sprocket (When stock of T42468 is exhausted, use D54829 sprocket assembly and 195-2121 washer for service), Incl. Ref 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

SPROCKET - tightener, .687" thick

1шт.

10

T41333

BEARING

needle, T41078 sprocket (Use T42467 bearing for service)

1шт.

10

T42467

BRONZE BUSHING,1.2555" ID x 1.504" OD x 0.625"

bronze, T42468 sprocket

1шт.

D54829

SPROCKET ASSY.

tightener, .630" thick, Incl. Ref 9, 10

2шт.

9

NSS

NOT SOLD SEPARAT

SPROCKET - tightener, .630" thick

1шт.

10

T42467

BRONZE BUSHING,1.2555" ID x 1.504" OD x 0.625"

bronze

1шт.

11

T40254

WASHER

flat, 13/32" I.D. x 2" O.D. x 10 gauge

2шт.

12

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

2шт.

13

61-616

HEX SOC SCREW,3/8"-16 x 1"

HSCS - 3/8" - 16 NC x 1" (Grade 8)

2шт.

14

131-6

LOCK NUT,3/8"-16, GC

hex., lock (3/8" - 16 NC), No. 40 chain tightener bracket

4шт.

15

T42589

WASHER

special, sealing, No. 40 chain tightener bracket

4шт.

16

111-320

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5

No. 40 chain tightener bracket

4шт.

T41073

BRACKET

tightener, No. 40 chain, Incl. Ref 17, 18

2шт.

17

NSS

NOT SOLD SEPARAT

BRACKET - tightener, No. 40 chain

1шт.

18

G15209

BEARING

inner, No. 40 chain tightener bracket

1шт.

T41074

SPROCKET ASSY.

tightener, No. 40 chain bracket, Incl. Ref 19, 20

2шт.

19

NSS

NOT SOLD SEPARAT

SPROCKET - tightener, No. 40 chain bracket

1шт.

20

F19478

NEEDLE BEARING,Needle, 31.75mm ID x 41.27mm OD x 19.05mm W

needle, No. 40 chain tightener bracket

1шт.

21

T40254

WASHER

flat, 13/32" I.D. x 2" O.D. x 10 gauge, No. 40 chain tightener bracket

2шт.

22

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

No. 40 chain tightener bracket

2шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

No. 40 chain tightener bracket

2шт.

Выбрано товаров: 35
