Запчасти Case IH 1500-SERIES (048) - AXLE ASSEMBLY (14) - MAIN GEARBOX & DRIVE

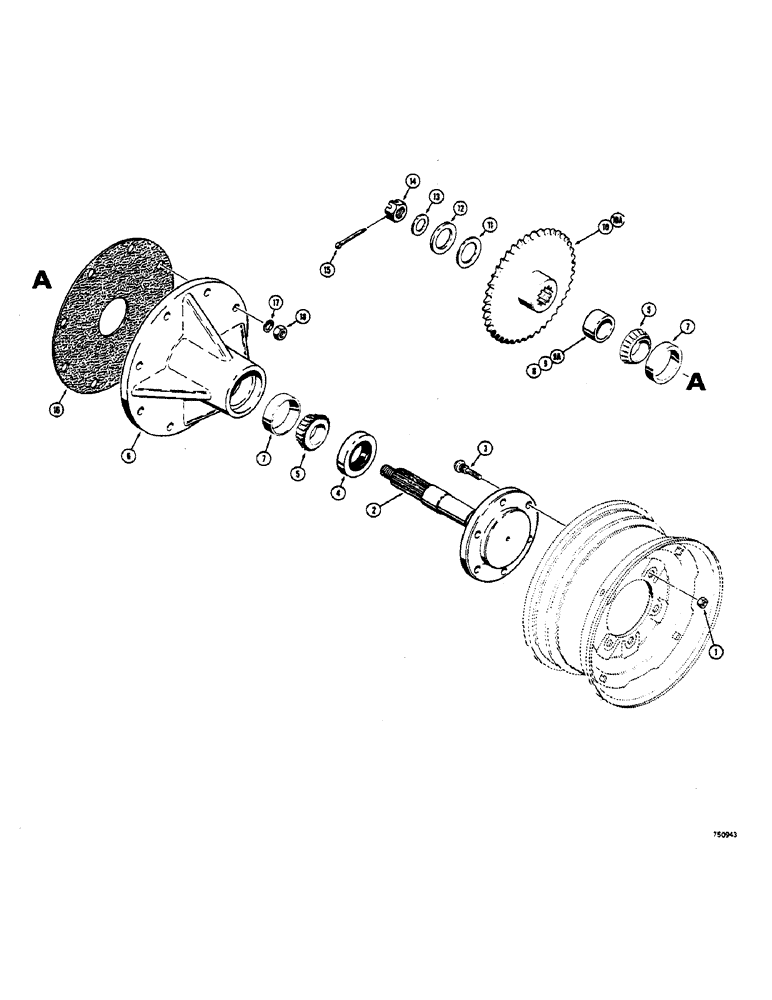

Схема запчастей Case IH 1500-SERIES - (048) - AXLE ASSEMBLY (14) - MAIN GEARBOX & DRIVE

Артикул

Название

Примечание

Количество

1

F23214

WHEEL NUT

wheel, 1/2"

24шт.

T42238

SHAFT

AXLE ASSEMBLY - with bolts, Incl. Ref 2, 3

4шт.

2

NSS

NOT SOLD SEPARAT

AXLE - wheel

1шт.

3

T40045

WHEEL BOLT

special, wheel

6шт.

4

T40047

OIL SEAL

oil

4шт.

5

G15219

ROLLER BEARING

CONE

8шт.

T41071

HUB

axle, Incl. Ref 6, 7

4шт.

6

NSS

NOT SOLD SEPARAT

HUB - axle

1шт.

7

G15218

BEARING, CUP

CUP

2шт.

8

T40049

BUSHING

front axle, used with no. 60 final drive chain only (Standard)

2шт.

9

T40050

BUSHING

rear axle, used with no. 60 final drive chain only (Standard)

2шт.

9a

D53022

SPACER

front and rear axle, used with no. 80 final drive chain only (Optional)

4шт.

10

T40051

GEAR

SPROCKET - axle, used with no. 60 final drive chain only (Standard)

4шт.

See Ref. 10, Fig. 32 for chain info

1шт.

10a

D53024

DRIVE SPROCKET

front axle only, used with no. 80 final drive chain only (Optional)

2шт.

10b

D53025

DRIVE SPROCKET

rear axle only, used with no. 80 final drive chain only (Optional)

2шт.

11

T40257

WASHER

special, 1-5/8" I.D. x 2-3/8" O.D. x 14 ga.

1шт.

12

T40258

WASHER

special, 1-5/8" I.D. x 2-3/8" O.D. x 10 ga.

1шт.

13

95-14

WASHER,7/8"

plain () 7/8"

4шт.

14

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

Castle

4шт.

15

132-52

COTTER PIN,1/8" x 1 1/2"

4шт.

16

T42395

GASKET

hub

4шт.

17

92-9

BEARING WASHER,9/16"

32шт.

18

25-119

NUT,9/16"-18, G5

hex. (9/16" - 18 NF)

32шт.

Выбрано товаров: 24
