Запчасти Case IH 1500-SERIES (046) - MAIN DRIVE SPROCKET ASSEMBLY (14) - MAIN GEARBOX & DRIVE

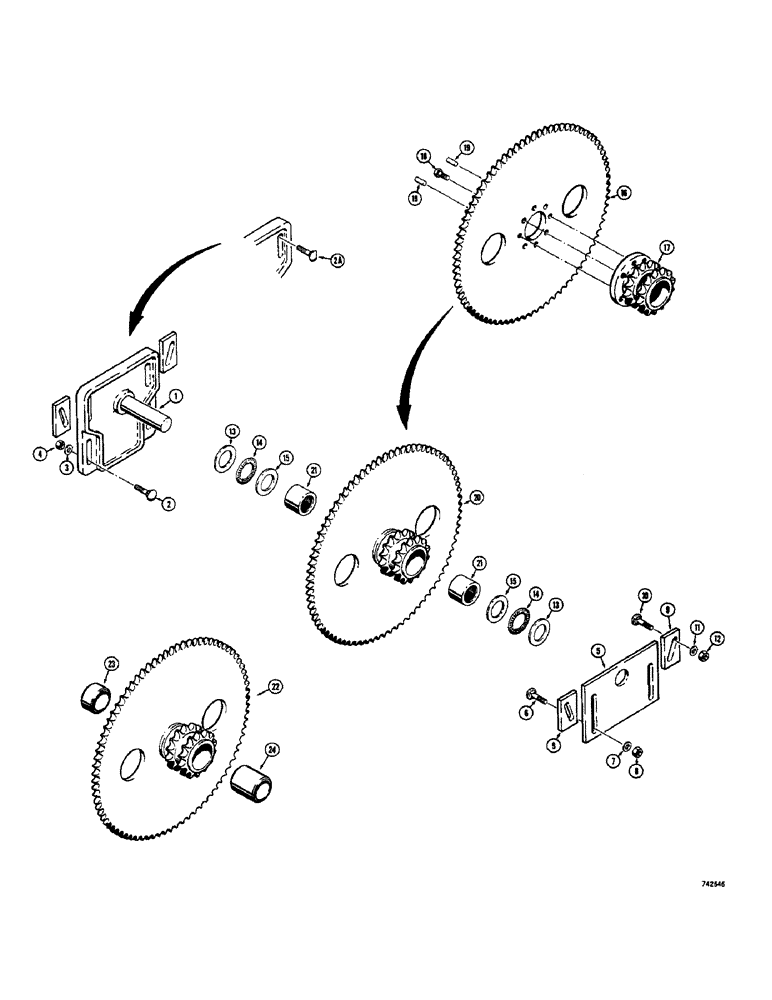

Схема запчастей Case IH 1500-SERIES - (046) - MAIN DRIVE SPROCKET ASSEMBLY (14) - MAIN GEARBOX & DRIVE

Артикул

Название

Примечание

Количество

1

T41076

DRIVE UNIT

MOUNT AND SHAFT ASSEMBLY - inner, early production (Use T42620 mount for service)

2шт.

1

T42620

MOUNTING PARTS

MOUNT AND SHAFT ASSEMBLY - inner, late production

2шт.

2

111-508

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

See Ref. 2A

8шт.

2a

T41297

BOLT (SPREADER)

special clipped, round head square neck (1/2" - 13 NC x 1-1/2") Used at upper bolt holes, if used

4шт.

3

T42588

WASHER

special, sealing

8шт.

4

131-10

NUT,1/2"-13, GB

8шт.

5

T40043

BRACKET

sprocket, outer (#60 chain)

2шт.

5

T42120

SPARE PART sprocket, outer (#80 chain)

2шт.

6

111-508

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

8шт.

7

T42588

WASHER

special sealing

8шт.

8

131-10

NUT,1/2"-13, GB

8шт.

9

T40044

WEDGE

sprocket mount (Used SN. 1288 and after)

8шт.

10

111-320

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5

8шт.

11

T42589

WASHER

special sealing

8шт.

12

131-6

LOCK NUT,3/8"-16, GC

hex., lock (3/8" - 16 NC)

8шт.

13

T40036

WASHER, THRUST,34.98mm ID x 52.12mm OD x 0.81mm Thk

outer (If used)

1шт.

14

T40038

THRUST BEARING,1.377" ID x 2.052" OD x 0.0781"

thrust (If used)

4шт.

15

607147R1

WASHER

thrust, inner (If used)

4шт.

16

T40041

SPROCKET ASSY.

main (Used T41075 listed below)

2шт.

17

T40042

SPROCKET ASSY.

double drive (Use T41075 listed below)

2шт.

18

T40256

BOLT - special, early production sprocket

12шт.

19

T40040

SPARE PART sprocket, 3/8" x 1/2" (If used)

4шт.

T41075

DRIVE SPROCKET

main drive, late production (One piece construction) Use with no. 60 final drive chain only (Standard), Incl. Ref 20, 21

2шт.

D53023

SPROCKET ASSY.

main drive, late production (One piece construction) Used with no. 80 final drive chain only (Optional) Use D69539 sprocket, Incl. Ref 20, 21

2шт.

20

NSS

NOT SOLD SEPARAT

SPROCKET - main drive

1шт.

21

A31213

NEEDLE BEARING,Needle, 34.91mm ID x 41.27mm OD x 31.75mm W

needle (Service with D69541 and D69540 bushing)

2шт.

D69539

SPROCKET ASSY.

main drive, use with no. 80 final drive chain only (Optional), Incl. Ref 22-24

2шт.

22

NSS

NOT SOLD SEPARAT

SPROCKET - main drive

1шт.

23

D69541

BEARING,1.58" ID x 1.628" OD x 1"

1" long

1шт.

24

D69540

BUSHING,1.38" ID x 1.628" OD x 1.9375"

2" long

1шт.

Выбрано товаров: 30
