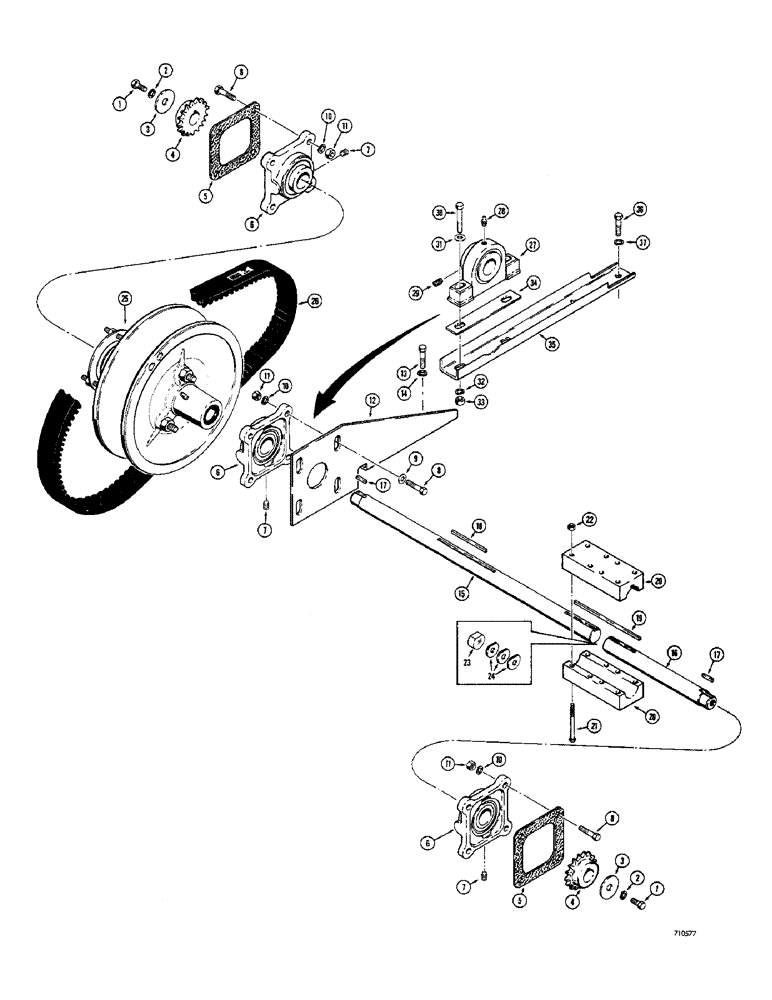

Запчасти Case IH 1500-SERIES (044) - JACKSHAFT AND BEARINGS (14) - MAIN GEARBOX & DRIVE

1

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

2

92-8

LOCK WASHER,1/2"

2шт.

3

T40255

WASHER

1/2" x 1-3/4"

2шт.

4

T40069

DRIVE SPROCKET

drive, 17 tooth (Used on all models - except 1526) to 9813301

2шт.

4

T40640

DRIVE SPROCKET

drive, 19 tooth (Used on model 1526) to 9813301

2шт.

5

T42394

GASKET

flange bearing

2шт.

6

T40071

FLANGE

BEARING ASSEMBLY - includes flange and collar (For center bearing before SN. 9813309, See Ref: 27 thru 37). Includes Ref: 7

2-3шт.

7

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

3/8" - 16 NC x 3/8" cup pt.

1шт.

8

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

12шт.

9

95-8

WASHER,1/2"

4шт.

10

92-8

LOCK WASHER,1/2"

12шт.

11

25-108

NUT,1/2"-13, G5

Hex

12шт.

12

T41772

MOUNTING PARTS

center bearing, (When stock is exhausted, order T42420 for service) For center bearing and mount used before SN. 9813309, See Ref 27 - 37, Start Serial: 9813309

1шт.

12

T42420

FLANGED BEARING

center bearing (For center bearing and mount used before SN. 9813309, See Ref 27 - 37), Start Serial: 9813309

1шт.

13

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

14

92-8

LOCK WASHER,1/2"

2шт.

15

T40076

SHAFT

long

1шт.

16

T40078

JACKSHAFT

short

1шт.

17

T33565

BUCKET TOOTH KEY

1/4" square x 1"

2шт.

18

B18322

KEY

1/4" square x 3-1/2"

1шт.

19

T40079

KEY

1/4" square x 7"

1шт.

20

T40080

CLAMP

jackshaft

1шт.

21

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

8шт.

22

131-179

LOCK NUT,3/8"-16, GA

hex., lock (3/8" - 16 NC)

8шт.

23

T40077

SPACER

jackshaft, replaced by (1) T42369 spacer and (3) F65009 washers (No longer used - not required)

1шт.

23

T42369

BUSHING

jackshaft, no longer used - not required

1шт.

24

F65009

PIN

clipped, no longer used - not required

2-3шт.

25

REF

INSTRUCTION

VARIABLE SPEED DRIVEN ASSEMBLY - see Fig. 42

1шт.

26

T40073

BELT

SPARE PART variable drive

1шт.

27

T40661

SPARE PART pillow block, center only, Incl. Ref 28, 29, Serial Range: -9813309

1шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

, Serial Range: -9813309

1шт.

29

84-55

SET SCREW,Hex Soc, 5/16"-24 x 5/16"

5/16" - 24 NF x 5/16", cup point, Serial Range: -9813309

1шт.

30

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

, Serial Range: -9813309

2шт.

31

95-8

WASHER,1/2"

, Serial Range: -9813309

2шт.

32

92-8

LOCK WASHER,1/2"

, Serial Range: -9813309

2шт.

33

25-108

NUT,1/2"-13, G5

Hex, Serial Range: -9813309

2шт.

34

T41677

SPARE PART .030" thick, Serial Range: -9813309

1шт.

34

T41678

SPARE PART .015" thick, Serial Range: -9813309

1шт.

34

T41679

SPARE PART .010" thick, Serial Range: -9813309

1шт.

34

T41680

SHIM - .005" thick, Serial Range: -9813309

1шт.

34

T41681

SHIM - .060" thick, Serial Range: -9813309

1шт.

35

T40074

SUPPORT

pillow block bearing, Serial Range: -9813309

1шт.

36

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

, Serial Range: -9813309

2шт.

37

92-8

LOCK WASHER,1/2"

, Serial Range: -9813309

2шт.
