Запчасти Case IH 1500-SERIES (040) - 9 INCH VARIABLE SPEED DRIVE ASSEMBLY, FOR IDENTIFICATION: ITEM 12 IS 4-5/16" LONG (14) - MAIN GEARBOX & DRIVE

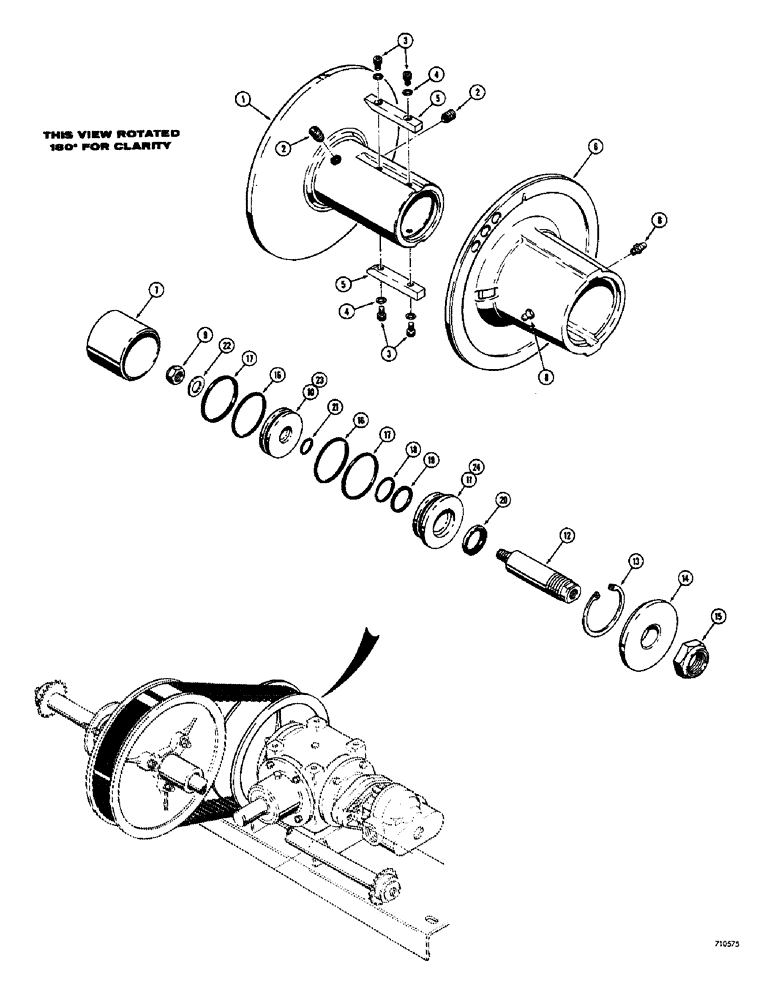

Схема запчастей Case IH 1500-SERIES - (040) - 9 INCH VARIABLE SPEED DRIVE ASSEMBLY, FOR IDENTIFICATION: ITEM 12 IS 4-5/16" LONG (14) - MAIN GEARBOX & DRIVE

Артикул

Название

Примечание

Количество

T40084

SHEAVE

VARIABLE SPEED DRIVE ASSEMBLY - complete, used before tractor SN. 9815226, when stock is exhausted, order D57638 drive assembly for service, Includes Ref: 1-15

1шт.

T42639

PULLEY

VARIABLE SPEED DRIVE ASSEMBLY - complete, used on tractor SN. 9815226 thru 9816321, when stock is exhausted, order D57638 drive assembly for service, Includes Ref: 1-15

1шт.

D53038

SHEAVE

VARIABLE SPEED DRIVE ASSEMBLY - complete, used on tractor SN. 9816321 and after, use D56738 for service, Includes Ref: 1-15

1шт.

D57638

PULLEY

VARIABLE SPEED DRIVE ASSEMBLY - complete, Incl. Ref 1-15

1шт.

D57831

PULLEY

SHEAVE KIT - variable speed drive, Incl. Ref 1-6

1шт.

1

NSS

NOT SOLD SEPARAT

SHEAVE - male, 9", 1-3/8" bore

1шт.

2

178-855

SET SCREW,Hex Soc, 3/8"-16 x 1"

SETSCREW - 3/8" - 16 NC x 1/2", self-locking

2шт.

3

T40088

SCREW

SETSCREW - #10 - 24 NC x 1/2", special

4шт.

4

193-26

LOCK WASHER,Int Tooth, #10

4шт.

5

T40087

KEY

sheave

2шт.

6

NSS

NOT SOLD SEPARAT

SHEAVE - female, 9"

1шт.

7

T41589

TUBE SPACER,2.002" ID x 2.308" OD x 2.011" L

TUBE - cylinder

1шт.

8

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

2шт.

9

131-578

NUT,1/2"-20

1/2 - 20 NF; Thin Height

1шт.

10

T40090

PISTON

used on T40084 variable speed drive, order D53325 service kit

1шт.

10

T42638

PISTON

aluminum, used on T42639 variable speed drive when stock is exhausted, order D53322 piston for service

1шт.

10

D53322

PISTON

iron, used on D53038 and D57638 variable speed drive

1шт.

11

T40091

PLUG

GUIDE - ram, used on T40084 variable speed drive, order D53325 service kit listed below

1шт.

11

T42637

PLUG

GUIDE - aluminum, ram, used on T42639 variable speed drive, when stock is exhausted, order D53323 guide for service

1шт.

11

D53323

GUIDE

iron, ram, used on D53038 and D57638 variable speed drive

1шт.

12

T40092

CYLINDER

RAM - variable speed drive

1шт.

13

T40094

RING

variable speed drive

1шт.

14

T40093

WASHER

special

1шт.

15

131-39

NUT,1"-14

hex, jam, 1" - 14 NF

1шт.

D53325

PACKAGE, REPAIR

KIT - special service, variable speed drive, Incl. Ref 16-23

1шт.

T42640

SEAL KIT

This kit can be ordered separately as a seal kit for T42639 or D53038 and D57638 variable speed drives only. When a new seal kit is required for T40084 variable speed drive, order complete D53325 kit, Incl. Ref 16-21

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, 2" O.D.

2шт.

17

NSS

NOT SOLD SEPARAT

RING - backup, 2" O.D.

2шт.

18

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, 1-1/4" O.D.

1шт.

19

NSS

NOT SOLD SEPARAT

RING - backup, 1-1/4" O.D.

1шт.

20

NSS

NOT SOLD SEPARAT

WIPER - plug

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, 13/16" O.D.

1шт.

22

195-2065

WASHER,33/64" x 7/8" x .049"

piston

1шт.

23

D53322

PISTON

This piston can be ordered as an individual part for T42639 or D53038 and D57638 variable speed drives only. When a new piston is required for T40084 variable speed drive, order complete D53325 kit, See Ref. 10 for production variations

1шт.

24

D53323

GUIDE

This guide can be ordered as an individual part for T42639 or D53038 and D57638 variable speed drives only. When a new guide is required for T40084 variable speed drive, order complete D53325 kit, See Ref 11 for production variations

1шт.

Выбрано товаров: 35
