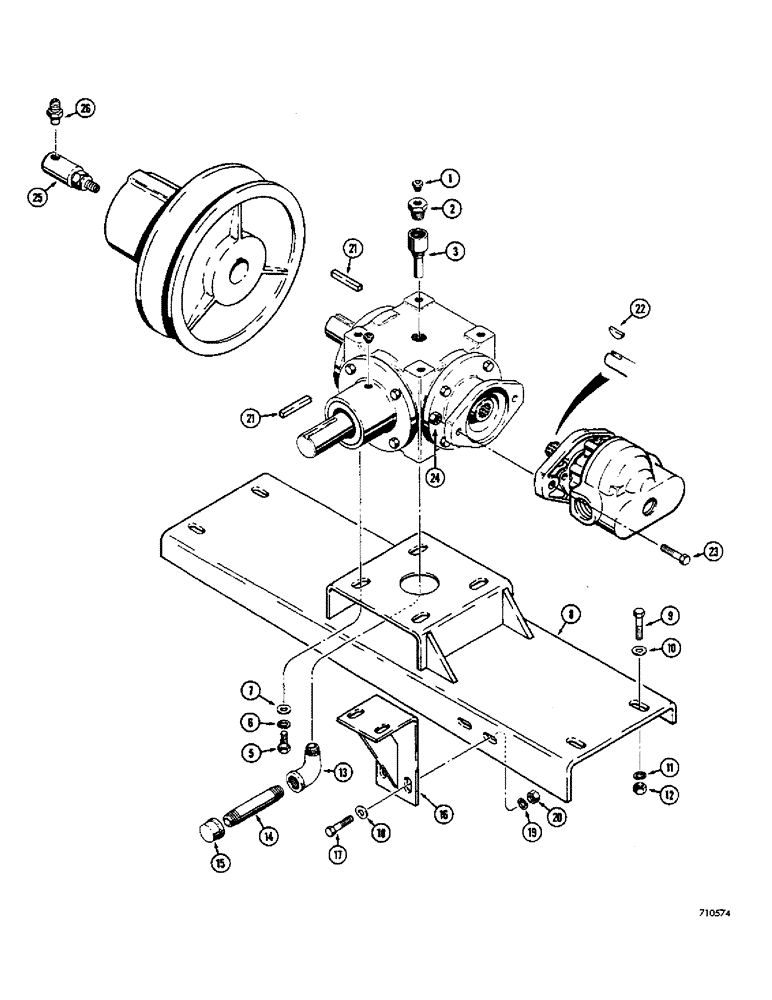

Запчасти Case IH 1500-SERIES (038) - GEAR BOX MOUNTING PARTS (14) - MAIN GEARBOX & DRIVE

1

T40130

VENT

pressure relief, used before SN. 9814270 (Part of gear box - see Fig. 36)

1шт.

2

T40129

BUSHING

reducing, 1/2" NPT to 1/8" NPT, Part of gear box - see Fig. 36, Serial Range: -9814270

1шт.

3

T42396

BREATHER

vent, Serial Range: -9814270

1шт.

4

T42477

FITTING

VENT - pressure relief (Part of gear box - see Fig. 36), Serial Range: -9814270

1шт.

5

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

6

92-8

LOCK WASHER,1/2"

4шт.

7

95-8

WASHER,1/2"

4шт.

8

T41064

MEMBER

gear box

1шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

10

95-8

WASHER,1/2"

8шт.

11

92-8

LOCK WASHER,1/2"

4шт.

12

25-108

NUT,1/2"-13, G5

Hex

4шт.

13

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - 90 degrees street, 1/2" NPT (If required)

1шт.

14

221-194

PIPE,Nipple, 1/2" NPT x 4"

1/2" NPT x 4" (If required)

1шт.

15

221-525

CAP,1/2" NPT

(If required) 1/2" NPT

1шт.

16

T41067

BRACKET

filter

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

18

195-2034

WASHER,7/16" x 1 1/4" x .134"

flat (1-1/4" x 7/16" x 10 ga.)

4шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC)

2шт.

21

B18323

KEY

5/16" square x 2"

2шт.

22

126-22

WOODRUFF KEY,#13, 3/16" x 1"

(Parts of T40132 pump - see Fig. 78), Serial Range: -9813331

1шт.

23

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

2шт.

24

131-1111

LOCK NUT,7/16"-14, GA

2шт.

25

T42355

COUPLING, BREAK AWAY

rotary (Parts list Fig. 86)

1шт.

26

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

Adapter, Rotary coupling

1шт.
