Запчасти Case IH 1500-SERIES (036) - GEAR BOX (14) - MAIN GEARBOX & DRIVE

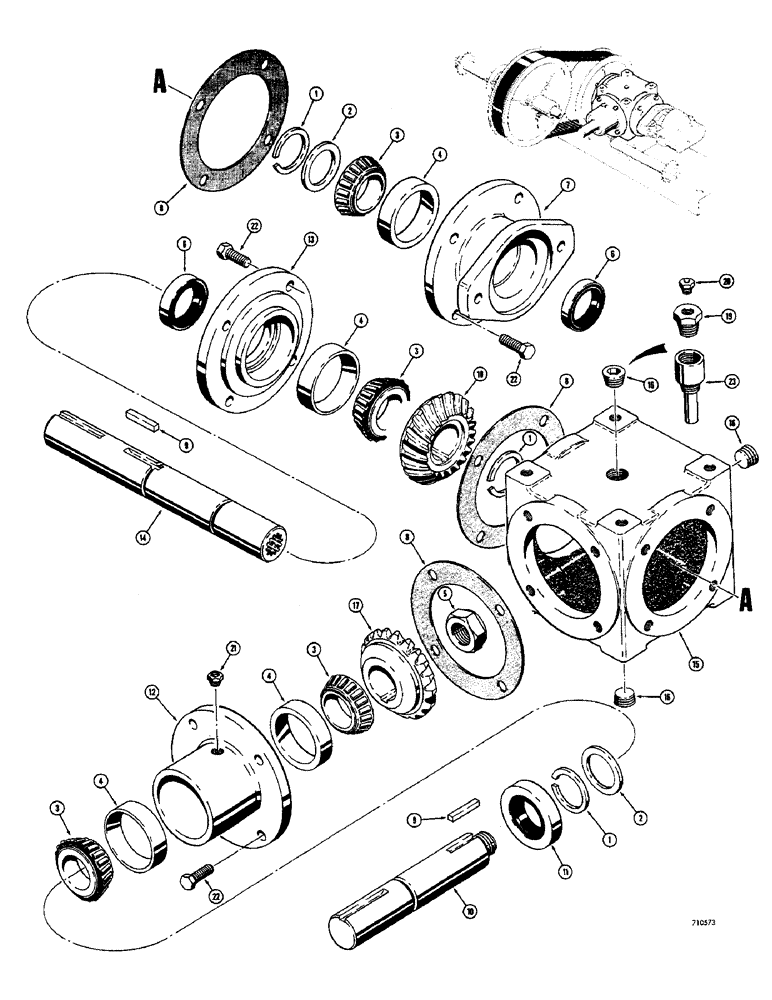

Схема запчастей Case IH 1500-SERIES - (036) - GEAR BOX (14) - MAIN GEARBOX & DRIVE

Артикул

Название

Примечание

Количество

T40112

SPARE PART keyed pump shaft (Used before tractor SN. 9813331), Incl. Ref 1-22

1шт.

T41506

SPARE PART splined pump shaft (Used on tractor SN. 9813331 through 9814269) When stock is exhausted, order T42475 gear box assembly, Incl. Ref 1-22

1шт.

T42475

GEAR

splined pump shaft (Used on tractor SN. 9814270 and after), Incl. Ref 1-22

1шт.

1

T40126

RING

bearing and gear retaining

3шт.

2

T40125

WASHER

spacer

2шт.

3

G57452

ROLLER BEARING

4шт.

4

G57451

BEARING, CUP

4шт.

5

131-39

NUT,1"-14

hex., lock (1" - 14 NF)

1шт.

6

T40123

SEAL

oil

2шт.

7

T40115

CAP

FLANGE - pump mounting

1шт.

8

T40128

GASKET

GASKET - gear box assembly

1шт.

9

F11313

KEY

shaft

2шт.

10

T40117

SHAFT

pinion

1шт.

11

T40124

SEAL

1шт.

12

T40116

HOUSING

pinion, not drilled and tapped for vent (When stock is exhausted, order T42476 pinion housing and T42477 vent)

1шт.

12

T42476

HOUSING

pinion, drilled and tapped for vent

1шт.

13

T40114

CAP

PLATE - case, output shaft end

1шт.

14

T40118

SHAFT

keyed at pump, used in T40112 gear box assembly only

1шт.

14

T41835

SHAFT

SPARE PART splined at pump, used in T41506 and T42475 gear box assemblies only

1шт.

15

T40113

CASE

gear box

1шт.

16

221-34

DRAIN PLUG,Hex Soc, 1/2"-14, NPTF

pipe, 1/2" NPT

2-3шт.

T41062

GEAR

bevel, drive and driven, Incl. Ref 17, 18

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR - bevel, pinion shaft

1шт.

18

NSS

NOT SOLD SEPARAT

GEAR - bevel, output shaft

1шт.

19

T40129

BUSHING

pipe, for vent in top of gear box (Used on T40012 and T41506 gear box assemblies only)

1шт.

20

T40130

VENT

gear box, used on T40012 and T41506 gear box assemblies only

1шт.

21

T42477

FITTING

VENT - D42476 pinion housing, used on T42475 gear box assembly only (When D42476 pinion housing is used to replace T40116 housing, this vent must be added also)

1шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

12шт.

23

T42396

BREATHER

EXTENSION - vent, used on some T40012 and T41506 gear box assemblies only

1шт.

B53983

FLUID

LUBRICANT - 1 qt. 90 wt. gear box oil with anti-foam additive

1шт.
