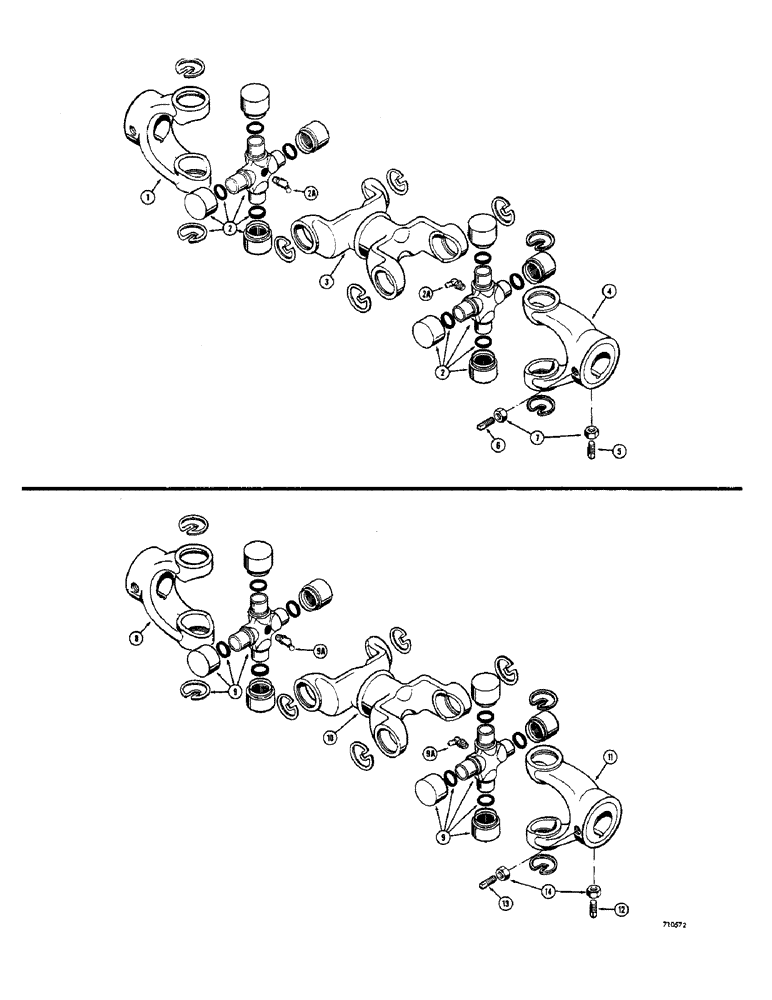

Запчасти Case IH 1500-SERIES (034) - UNIVERSAL DRIVE SHAFT, MODEL 1537 (14) - MAIN GEARBOX & DRIVE

T40102

JOINT

DRIVE SHAFT ASSEMBLY - complete, Incl. Ref 1-4

1шт.

1

T40103

FORK

YOKE - end, 1-3/4" bore

1шт.

2

T40106

KIT

SPIDER AND BEARING ASSEMBLY - driveshaft

2шт.

2a

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2 degrees (1/8" NPT)

1шт.

3

T40105

CENTER JOINT

YOKE - shaft, center

1шт.

4

T40104

FORK

YOKE - end, 1-3/8" bore

1шт.

5

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SET SCREW - 3/8" - 16 NC x 3/4", sq. hd.

2шт.

6

85-616

SET SCREW,Sq Hd, 3/8"-16 x 1"

SET SCREW - 3/8" - 16 NC x 1", sq. hd.

2шт.

7

25-146

JAM NUT,Jam, 3/8"-16, G5

4шт.

T40107

U-JOINT SPIDER

DRIVE SHAFT ASSEMBLY - complete, models 1526 and 1530, Incl. Ref 8-11

1шт.

8

T40108

FORK

YOKE - end, 1-7/16" bore, models 1526 and 1530

1шт.

9

T40106

KIT

SPIDER AND BEARING ASSEMBLY - drive shaft, models 1526 and 1530, Incl. Ref 9A

2шт.

9a

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2 degrees (1/8" NPT), models 1526 and 1530

1шт.

10

T40105

CENTER JOINT

YOKE - shaft, center, models 1526 and 1530

1шт.

11

T40104

FORK

YOKE - end, 1-3/8" bore, models 1526 and 1530

1шт.

12

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SETSCREW - 3/8" - 16 NC x 3/4", sq. hd., models 1526 and 1530

2шт.

13

85-616

SET SCREW,Sq Hd, 3/8"-16 x 1"

SETSCREW - 3/8" - 16 NC x 1", sq. hd., models 1526 and 1530

2шт.

14

25-146

JAM NUT,Jam, 3/8"-16, G5

Models 1526 and 1530

4шт.
