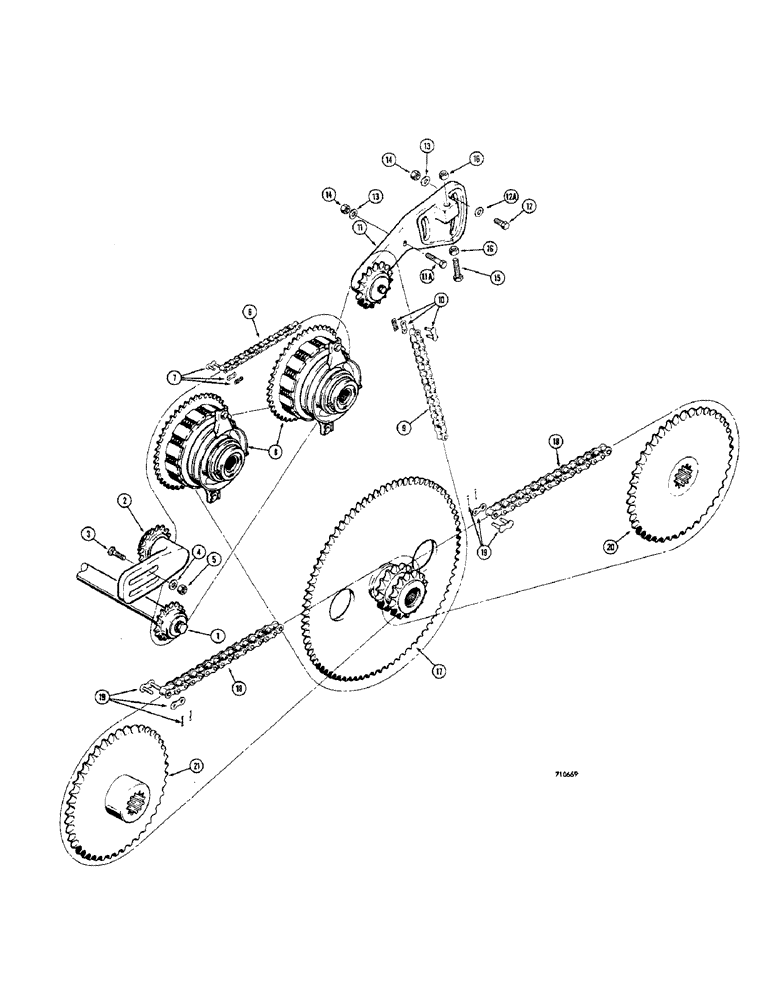

Запчасти Case IH 1500-SERIES (032) - DRIVE SPROCKETS AND CHAINS (14) - MAIN GEARBOX & DRIVE

1

REF

INSTRUCTION

SPROCKET - chain drive (See Fig. 44 for proper sprocket and related parts)

2шт.

2

REF

INSTRUCTION

CHAIN TIGHTENER - No. 40 chain (Parts list Fig. 50)

2шт.

3

111-320

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5

4шт.

4

T42589

WASHER

sealing

4шт.

5

131-6

LOCK NUT,3/8"-16, GC

hex, lock (3/8" - 16 NC)

4шт.

N2958

CHAIN (AG)

to clutches, no. 40 chain, Incl. Ref 6, 7

2шт.

6

NSS

NOT SOLD SEPARAT

CHAIN - to clutches, no. 40 chain

1шт.

7

D52905

LINK

connecting, spring clip type (No. 40 chain)

1шт.

8

REF

INSTRUCTION

CLUTCH ASSEMBLY - multiple disc (Parts list Figs. 52 and 53A)

4шт.

T40011

CHAIN (AG)

to main driven sprocket, no. 50 chain, Incl. Ref 9, 10

2шт.

9

NSS

NOT SOLD SEPARAT

CHAIN - to main driven sprocket, no. 50 chain

1шт.

10

D52906

LINK

connecting, spring clip type (No. 50 chain)

1шт.

11

REF

INSTRUCTION

CHAIN TIGHTENER - No. 50 chain (Parts list Fig. 50)

2шт.

12

14-924

BOLT,Hex, 9/16" - 18 x 1-1/2", Gr 5, Full Thd

HHCS - 9/16" - 18 NF x 1-1/2"

6шт.

12a

D53272

WASHER

heat treated

4шт.

13

T42479

WASHER

sealing

6шт.

14

131-11

NUT,9/16"-18, GB

6шт.

15

113-469

BOLT,Hex, 1/2" - 13 x 5", Gr 5, Full Thd

2шт.

16

25-108

NUT,1/2"-13, G5

Hex

4шт.

17

REF

INSTRUCTION

SPROCKET - main driven (See Fig. 46 for proper sprocket and parts list)

2шт.

T40010

CHAIN (AG)

to axle gear, no. 60 chain (Standard) When stock is exhausted, order D16328 kit for service, Incl. Ref 18, 19

4шт.

18

NSS

NOT SOLD SEPARAT

CHAIN - to axle gear

1шт.

D16766

LINK

KIT - connecting, Incl. Ref 19

1шт.

19

NSS

NOT SOLD SEPARAT

LINK - connecting, cottered

1шт.

D16328

CHAIN (AG)

KIT - to axle gear (No. 60 chain) Standard

4шт.

18

NSS

NOT SOLD SEPARAT

CHAIN - to axle gear

1шт.

D16329

LINK

KIT - connecting, cottered

1шт.

19

NSS

NOT SOLD SEPARAT

LINK - cottered

1шт.

D53028

CHAIN (AG)

to axle gear, no. 80 chain (Optional) Special width (Model 1537 only), Incl. Ref 18-21

4шт.

18

NSS

NOT SOLD SEPARAT

CHAIN - to axle gear

1шт.

19

D53027

LINK

connecting, cottered type (Used with D53028 chain)

2шт.

20

T40051

GEAR

axle, driven, front

2шт.

21

T40051

GEAR

axle, drive (Rear)

2шт.
