Запчасти Case IH 1500-SERIES (030) - POWER TRAIN, ENGINE TO DRIVE SPROCKETS (14) - MAIN GEARBOX & DRIVE

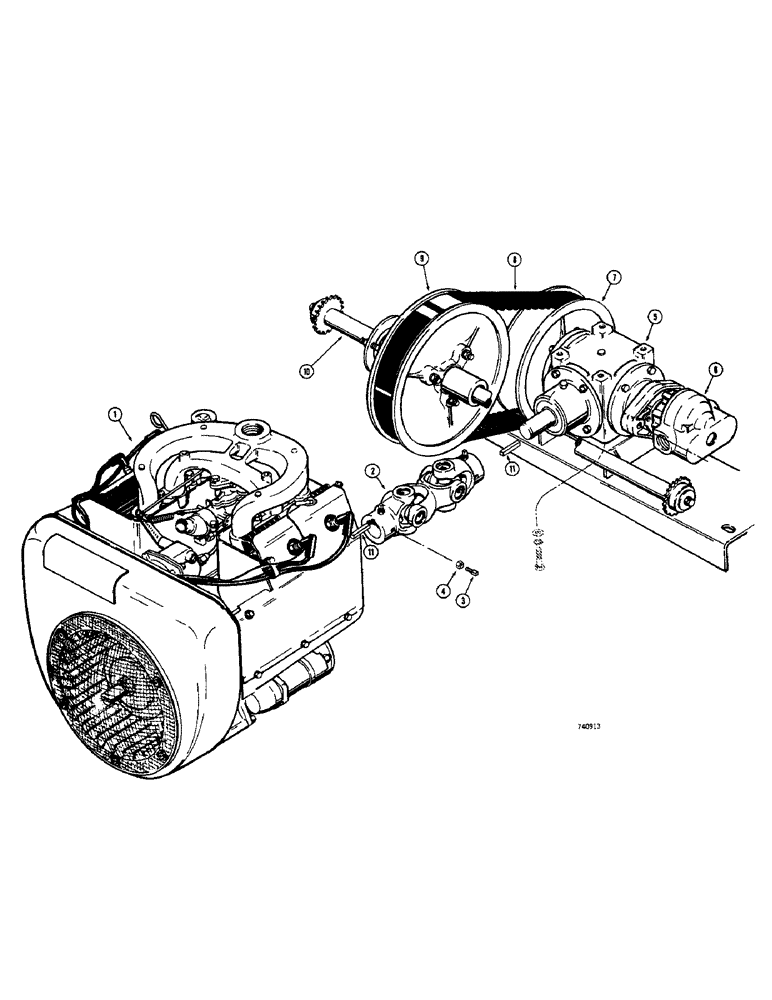

Схема запчастей Case IH 1500-SERIES - (030) - POWER TRAIN, ENGINE TO DRIVE SPROCKETS (14) - MAIN GEARBOX & DRIVE

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

ENGINE - Uni-Loader (See Fig. 10 for gas engines and Fig. 6 for diesel engine)

1шт.

2

REF

INSTRUCTION

UNIVERSAL SHAFT - engine to gear box (See Fig. 34 for proper shaft)

1шт.

3

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

set, square head (3/8" - 16 NC x 3/4")

2шт.

3

85-616

SET SCREW,Sq Hd, 3/8"-16 x 1"

set, square head (3/8" - 16 NC x 1")

2шт.

4

25-146

JAM NUT,Jam, 3/8"-16, G5

4шт.

5

REF

INSTRUCTION

GEAR BOX - Uni-Loader (See Fig. 36 for proper gear box)

1шт.

6

REF

INSTRUCTION

PUMP - hydraulic oil (See page 78 for proper pump)

1шт.

7

REF

INSTRUCTION

SHEAVE - variable speed, 9" (Parts list Fig. 40)

1шт.

8

D58998

V-BELT,1.81" W x 51.70" L

Drive

1шт.

9

REF

INSTRUCTION

SHEAVE - variable speed, 12" (Parts list Fig. 42)

1шт.

10

REF

INSTRUCTION

JACKSHAFT ASSEMBLY - Uni-Loader (See Fig. 44 for related parts)

1шт.

11

B18323

KEY

5/16" x 1-3/4"

2шт.

Выбрано товаров: 12
