Запчасти Case IH 1500-SERIES (027A) - CHOKE AND THROTTLE CABLES, MODELS 1530 AND 1537 (10) - ENGINE

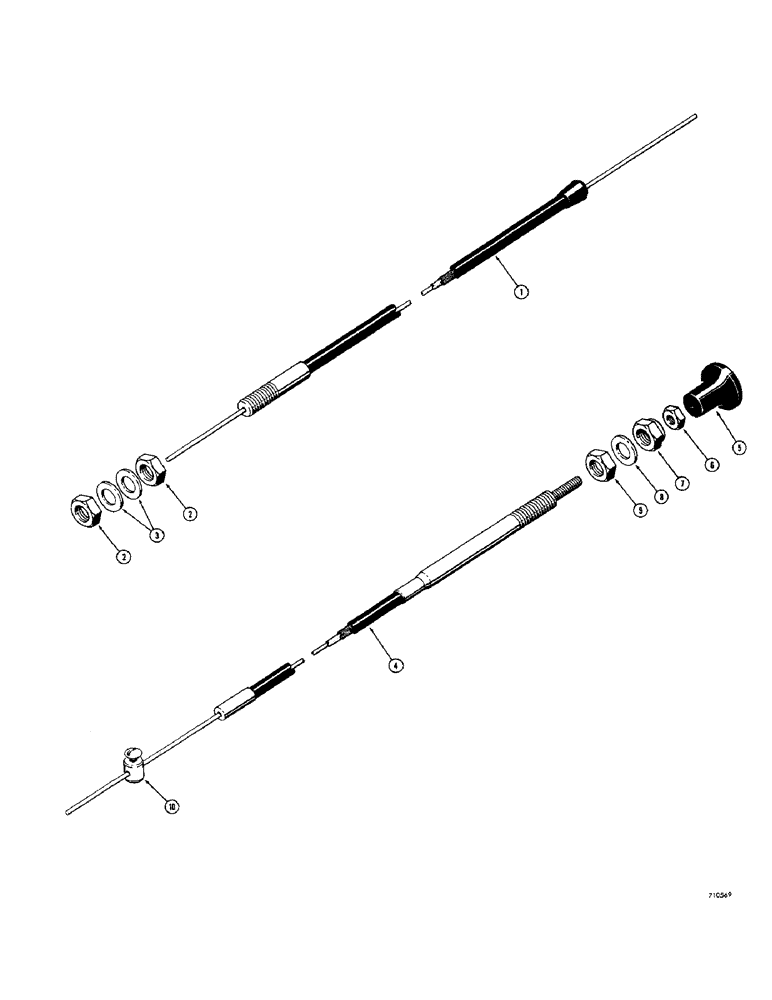

Схема запчастей Case IH 1500-SERIES - (027A) - CHOKE AND THROTTLE CABLES, MODELS 1530 AND 1537 (10) - ENGINE

Артикул

Название

Примечание

Количество

T41501

CABLE

throttle (When stock is exhausted, order D52836 cable for service), Incl. Ref 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

CABLE - throttle

1шт.

2

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

3

195-520

WASHER,1/4"

flat (5/16")

2шт.

D52836

CABLE

throttle, Incl. Ref 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

CABLE - throttle

1шт.

2

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

3

195-520

WASHER,1/4"

flat (5/16")

2шт.

T40249

CONTROL

CABLE - choke control (1530) When stock is exhausted, order D52880 cable for service, Incl. Ref 4-10

1шт.

4

NSS

NOT SOLD SEPARAT

CABLE - choke control

1шт.

5

D52915

KNOB

cable assembly

1шт.

6

129-660

NUT,#10-32, Brass

1шт.

7

D52916

SPARE PART special sealing (5/16" - 24 NF)

1шт.

8

195-520

WASHER,1/4"

flat (5/16")

1шт.

9

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

10

L32208

CLAMP

COLLAR ASSEMBLY - cable

1шт.

D52880

CABLE - choke control (1530), Incl. Ref 4-10

1шт.

4

NSS

NOT SOLD SEPARAT

CABLE - choke control

1шт.

5

D52915

KNOB

cable assembly

1шт.

6

129-660

NUT,#10-32, Brass

1шт.

7

D52916

SPARE PART special sealing (5/16" - 24 NF)

1шт.

8

195-520

WASHER,1/4"

flat (5/16")

1шт.

9

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

10

L32208

CLAMP

COLLAR ASSEMBLY - cable

1шт.

T40247

CONTROL

CABLE - choke control (1537) When stock is exhausted, order D52837 for service, Incl. Ref 4-10

1шт.

4

NSS

NOT SOLD SEPARAT

CABLE - choke control

1шт.

5

D52915

KNOB

cable assembly

1шт.

6

129-660

NUT,#10-32, Brass

1шт.

7

D52916

SPARE PART special sealing (5/16" - 24 NF)

1шт.

8

195-520

WASHER,1/4"

flat (5/16")

1шт.

9

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

10

L32208

CLAMP

COLLAR ASSEMBLY - cable

1шт.

D52837

CABLE

choke control (1537), Incl. Ref 4-10

1шт.

4

NSS

NOT SOLD SEPARAT

CABLE - choke control

1шт.

5

D52915

KNOB

cable assembly

1шт.

6

129-660

NUT,#10-32, Brass

1шт.

7

D52916

SPARE PART special sealing (5/16" - 24 NF)

1шт.

8

195-520

WASHER,1/4"

flat (5/16")

1шт.

9

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

10

L32208

CLAMP

COLLAR ASSEMBLY - cable

1шт.

Выбрано товаров: 40
