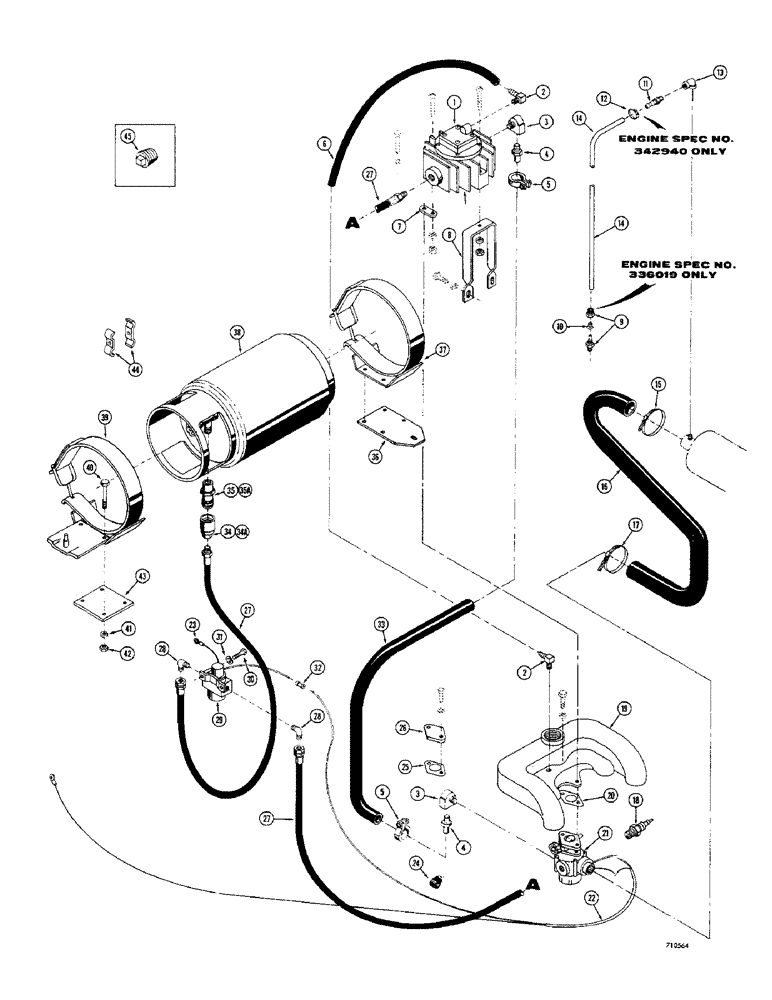

Запчасти Case IH 1500-SERIES (020) - L.P. GAS SYSTEM - 1530 (10) - ENGINE

1

REF

INSTRUCTION

CONVERTER

1шт.

This item must be obtained from Wisconsin engine distributors.

1шт.

2

REF

INSTRUCTION

ELBOW - vacuum line

2шт.

This item must be obtained from Wisconsin engine distributors.

1шт.

3

REF

INSTRUCTION

FITTING - elbow, fuel line

2шт.

This item must be obtained from Wisconsin engine distributors.

1шт.

4

REF

INSTRUCTION

CONNECTOR - hose, fuel line

2шт.

This item must be obtained from Wisconsin engine distributors.

1шт.

5

REF

INSTRUCTION

CLAMP - hose

2шт.

This item must be obtained from Wisconsin engine distributors.

1шт.

6

REF

INSTRUCTION

HOSE - vacuum

1шт.

This item must be obtained from Wisconsin engine distributors.

1шт.

7

REF

INSTRUCTION

BRACKET - mounting, Serial Range: converter-manifold

1шт.

This item must be obtained from Wisconsin engine distributors.

1шт.

8

REF

INSTRUCTION

BRACKET - mounting, converter to gear cover

1шт.

This item must be obtained from Wisconsin engine distributors.

1шт.

9

T41373

SPARE PART tube, male (Used on engine spec. no. 336019 only), Incl. Ref 10

2шт.

10

T41372

SLEEVE - connector

1шт.

11

220-3

FITTING

male, straight (Used on engine spec. no. 342940 only)

1шт.

12

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

vent tube (Used on engine spec. no. 342940 only)

2шт.

13

221-743

ADAPTER

ELBOW - 90 degrees, female

1шт.

14

T41655

SPARE PART vent, 24" long (Used on engine spec. no. 336019)

1шт.

14

T42650

TUBE,0.375" ID x 0.62" OD x 32" L

vent, 32" long (Used on engine spec. no. 342940 only)

1шт.

15

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

Hose to air cleaner

1шт.

16

T41932

SPARE PART air intake

1шт.

17

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

Hose to engine

1шт.

18

T41930

SPARK PLUG - special

4шт.

19

T41935

MANIFOLD - special

1шт.

20

REF

INSTRUCTION

GASKET - carburetor

1шт.

This item must be obtained from Wisconsin engine distributors.

1шт.

21

REF

INSTRUCTION

CARBURETOR - special

1шт.

This item must be obtained from Wisconsin engine distributors.

1шт.

22

T41927

SPARE PART wire

1шт.

23

223-52

FUSE

TERMINAL - electrical, at shutoff valve

1шт.

24

T41928

CLAMP,3/16", Insul, 1/4" Bolt

harness

3шт.

25

B53483

SPARE PART GASKET - cover plate

1шт.

26

T41658

SPARE PART cover, fuel pump

1шт.

27

T41926

SPARE PART fuel

2шт.

28

218-880

ELBOW UNION,90 Degree, 7/16"-20, 37 Degree x 1/4"-18, NPTF

Union Elbow 90 degrees

2шт.

29

REF

INSTRUCTION

VALVE - electrical shutoff

1шт.

This item must be obtained from Wisconsin engine distributors.

1шт.

30

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

31

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

32

T41598

CONNECTOR, ELEC

CONNECTOR SPLICE - butt, wire

1шт.

33

REF

INSTRUCTION

HOSE - fuel, Serial Range: converter-carburetor

1шт.

This item must be obtained from Wisconsin engine distributors.

1шт.

34

T41925

SPARE PART COUPLING - female, Incl. Ref 34A

1шт.

34a

T42634

SPARE PART seal repair, T41925 coupling

1шт.

35

T41924

COUPLING - male, Incl. Ref 35A

1шт.

35a

T42633

KIT - seal repair, T41924 coupling

1шт.

36

T41922

PLATE - mounting

1шт.

37

T41920

SPARE PART tank

1шт.

38

T41923

SPARE PART fuel

1шт.

39

T41919

BRACKET - tank

1шт.

40

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

8шт.

41

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

8шт.

42

9635082

NUT,5/16" - 18, Gr 5

8шт.

43

T41921

PLATE - mounting

1шт.

44

A13622

PLATE, LOCKING

CLAMP - hose (If used)

2шт.

45

221-1010

PLUG,Sq Hd, 1/4"-18 NPTF

pipe (1/4" NPT) Gas tank plugs

3шт.
