Запчасти Case IH 1500-SERIES (016) - AIR CLEANER - OPTIONAL TYPE, MODELS 1530 AND 1537 (10) - ENGINE

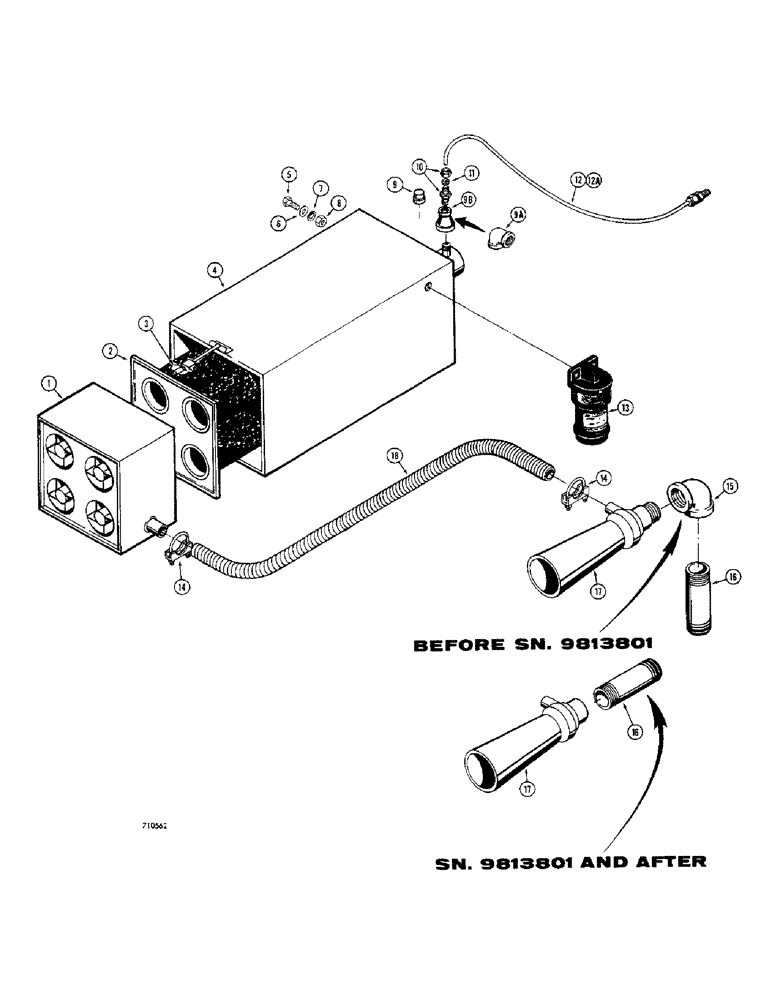

Схема запчастей Case IH 1500-SERIES - (016) - AIR CLEANER - OPTIONAL TYPE, MODELS 1530 AND 1537 (10) - ENGINE

Артикул

Название

Примечание

Количество

1

T42156

PANEL - pre-cleaner, Serial Range: -9813801

1шт.

1

T41630

SPARE PART pre-cleaner, Start Serial: 9813801

1шт.

2

T41629

SPARE PART CARTRIDGE - filter

1шт.

3

T41637

NUT - wing

2шт.

4

T42127

HOUSING - air cleaner, Serial Range: -9813801

1шт.

4

T41621

SPARE PART air cleaner, Start Serial: 9813801

1шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

6

95-5

WASHER,3/8" x 7/8" x .083"

plain (5/16")

4шт.

7

92-5

LOCK WASHER,5/16"

4шт.

8

9635082

NUT,5/16" - 18, Gr 5

4шт.

9

221-522

CAP,1/8" NPT

pipe, (If used) 1/8" NPT

1шт.

9a

221-743

ADAPTER

ELBOW - 90 degrees, female (Used on Model 1537), Serial Range: -9813801

1шт.

9b

221-344

LUBE NIPPLE

BUSHING - reducing, 1/8" NPT x 1/4" NPT (Used on Model 1537 - with engine spec. 336017 only), Start Serial: 9813801

1шт.

10

T41373

SPARE PART tube, male (Used on Model 1537 with engine spec. 336017 only), Incl. Ref 11

2шт.

11

T41372

SLEEVE - T41373 connector

1шт.

12

T42157

TUBE,0.25" ID x 0.375" OD x 36" L

PCV (Used on Model 1537 only), Serial Range: -9813801

1шт.

12a

T41655

SPARE PART PCV (Used on Model 1537 - with engine spec. 336017 only), Start Serial: 9813801

1шт.

13

T41628

SPARE PART filter service

1шт.

14

T41632

SPARE PART hose, metal flex

2шт.

15

221-380

ELBOW,90 Degree, 1 1/4" NPT

ELBOW - 90 degrees, 1-1/4" NPT (Model 1530 only), Serial Range: -9813801

1шт.

15

221-396

FITTING

ELBOW - 90 degrees, 1-1/2" NPT (Model 1537 only), Serial Range: -9813801

1шт.

16

221-270

FITTING

NIPPLE - exhaust pipe, 1-1/4" NPT x 6" (Model 1530 only), Serial Range: -9813801

1шт.

16

221-285

NIPPLE - exhaust pipe, 1-1/2" NPT x 2-1/2" (Model 1537 only), Serial Range: -9813801

1шт.

17

T42154

ASPIRATOR ASSEMBLY - 1530 only, Serial Range: -9813801

1шт.

17

T42108

ASPIRATOR ASSEMBLY - 1537 only, Serial Range: -9813801

1шт.

18

T42132

HOSE - metal flex, Serial Range: -9813801

1шт.

16

221-272

SPARE PART exhaust pipe, 1-1/4" NPT x 7" (Used on Model 1530 only), Start Serial: 9813801

1шт.

17

T41635

SPARE PART 1530 only, Start Serial: 9813801

1шт.

17

T41625

SPARE PART 1537 only, Start Serial: 9813801

1шт.

18

T41631

HOSE - metal flex, Start Serial: 9813801

1шт.

Выбрано товаров: 30
