Запчасти Case IH 1500-SERIES (010) - WISCONSIN GASOLINE ENGINE (10) - ENGINE

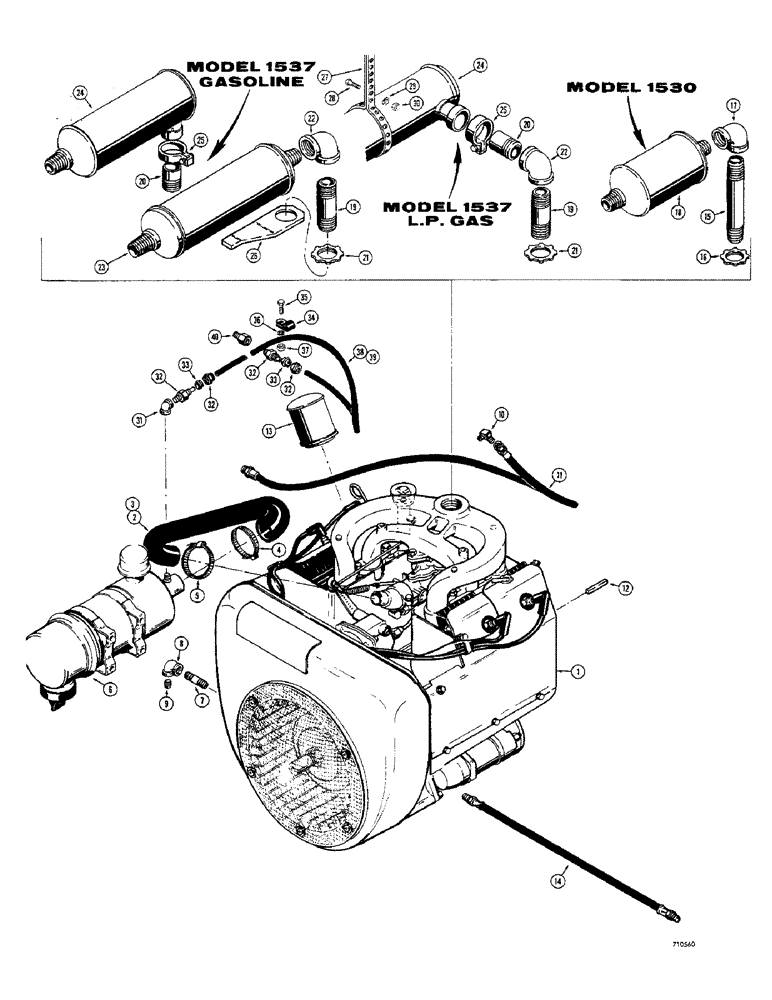

Схема запчастей Case IH 1500-SERIES - (010) - WISCONSIN GASOLINE ENGINE (10) - ENGINE

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

ENGINE - 30 H.P., VH4D Wisconsin (1530) Spec. #322381, 336019 & 342940

1шт.

Refer to Wisconsin Engine Manual for engine service and parts, including starters and generators.

1шт.

1

REF

INSTRUCTION

ENGINE - 37 H.P., VG4D Wisconsin (1537) Spec. #322382, 336017 & 343756

1шт.

Refer to Wisconsin Engine Manual for engine service and parts, including starters and generators.

1шт.

2

T40360

SPARE PART air intake, Serial Range: -9813801

1шт.

3

T41633

HOSE

air intake, When stock is exhausted, order D52846 hose, Start Serial: 9813801

1шт.

3

D52846

INTAKE AIR HOSE,1.56" ID, 2.06" ID x 8.50", SAE 10R4 Class SC

, Start Serial: 9813801

1шт.

4

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

Hose to engine

1шт.

5

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

Hose to air cleaner

1шт.

6

REF

INSTRUCTION

AIR CLEANER - see Figs.14 and 16

1шт.

7

221-164

FITTING,Nipple, 3/8" NPT x 2"

NIPPLE - pipe (3/8" NPT x 2") 1530 only

1шт.

7

221-190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - pipe (1/2" NPT x 2") 1537 only

1шт.

8

221-376

ELBOW,90 Degree, 3/8" NPT

ELBOW - pipe, 90 degrees (3/8" NPT) 1530 only

1шт.

8

221-377

ELBOW,90 Degree, 1/2" NPT

pipe, 90 degrees (1/2" NPT) 1537 only

1шт.

9

221-33

OILER FABRIC,Sq Soc, 3/8"-18 NPTF

PLUG - pipe, sq. hd. (3/8" NPT) 1530 only

1шт.

9

221-34

DRAIN PLUG,Hex Soc, 1/2"-14, NPTF

pipe, sq. hd. (1/2" NPT) 1537 only

1шт.

10

218-532

ELBOW,45 Degree, 1/2-20" 37 Degree x 1/8"-27, NPTF

male, 45 degrees

1шт.

11

T40321

SPARE PART gas line

1шт.

12

A26494

SPARE PART 3/8" square x 2"

1шт.

13

T40475

FILTER, ENGINE OIL

FILTER, OIL engine oil

1шт.

14

T41162

HOSE ASSY.

fuel equalizer, 3/8" I.D. x 32-3/4"

1шт.

15

221-270

FITTING

NIPPLE - pipe (1-1/4" NPT x 6"), model 1530 exhaust system

1шт.

16

223-204

SPARE PART 1-1/4" threads, model 1530 exhaust system

1шт.

17

221-380

ELBOW,90 Degree, 1 1/4" NPT

ELBOW - pipe, 90 degrees (1-1/4" NPT), model 1530 exhaust system

1шт.

18

T40246

MUFFLER

standard, early production (When stock is exhausted, order T41639 muffler), model 1530 exhaust system

1шт.

18

T41639

MUFFLER

standard, late production, model 1530 exhaust system

1шт.

18

T40659

SPARE PART spark arresting, model 1530 exhaust system

1шт.

19

221-285

NIPPLE - pipe (1-1/2" NPT x 2-1/2") If used, model 1537 exhaust system

1шт.

20

T42365

PIPE

exhaust (1-1/2" NPT) If used, model 1537 system

1шт.

21

223-205

LOCK NUT

1-1/2" threads, model 1537 exhaust system

1шт.

22

221-396

FITTING

ELBOW - pipe, 90 degrees (1-1/2" NPT) If used, model 1537 exhaust system

1шт.

23

T40322

MUFFLER

standard, early production (When stock is exhausted, order (1) T42358 muffler and (1) T42365 exhaust pipe), model 1537 exhaust system

1шт.

23

T40662

MUFFLER

spark arresting, model 1537 exhaust system

1шт.

24

T42358

MUFFLER

standard, late production, model 1537 exhaust system, Incl. Ref 25

1шт.

25

214-270

HOSE CLAMP,#76, 4.31" - 5.25", Type F Worm

T42358 muffler, model 1537 exhaust system

1шт.

26

T42364

SUPPORT - muffler (Used before SN. 9814401), model 1537 exhaust system

1шт.

27

T42257

BRACKET

STRAP - muffler support, L.P. gas models only, model 1537 exhaust system

1шт.

28

131-3

LOCK NUT,5/16"-24, GB

HHCS - 1/4" - 20 NC x 3/4" (Zinc plated), model 1537 exhaust system

2шт.

29

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

Model 1537 exhaust system

2шт.

30

7770

NUT,Hex, 1/4 - 20, Cl 5

Model 1537 exhaust system

2шт.

31

221-743

ADAPTER

ELBOW - 90 degrees, female

1шт.

32

T41373

SPARE PART tube, male, Incl. Ref 33

2шт.

33

T41372

SLEEVE - connector

1шт.

34

49852

PTO SHAFT

tube

1шт.

35

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

36

92-5

LOCK WASHER,5/16"

1шт.

37

9635082

NUT,5/16" - 18, Gr 5

1шт.

38

T41371

TUBE,0.375" OD x 38" L

crankcase vent, Serial Range: -9813801

1шт.

39

T41655

SPARE PART crankcase vent, Start Serial: 9813801

1шт.

40

222-746

SPARE PART ADAPTER - straight, Serial Range: tube-pipe

1шт.

Выбрано товаров: 50
