Запчасти Case IH 1500-SERIES (006) - DEUTZ DIESEL ENGINE (10) - ENGINE

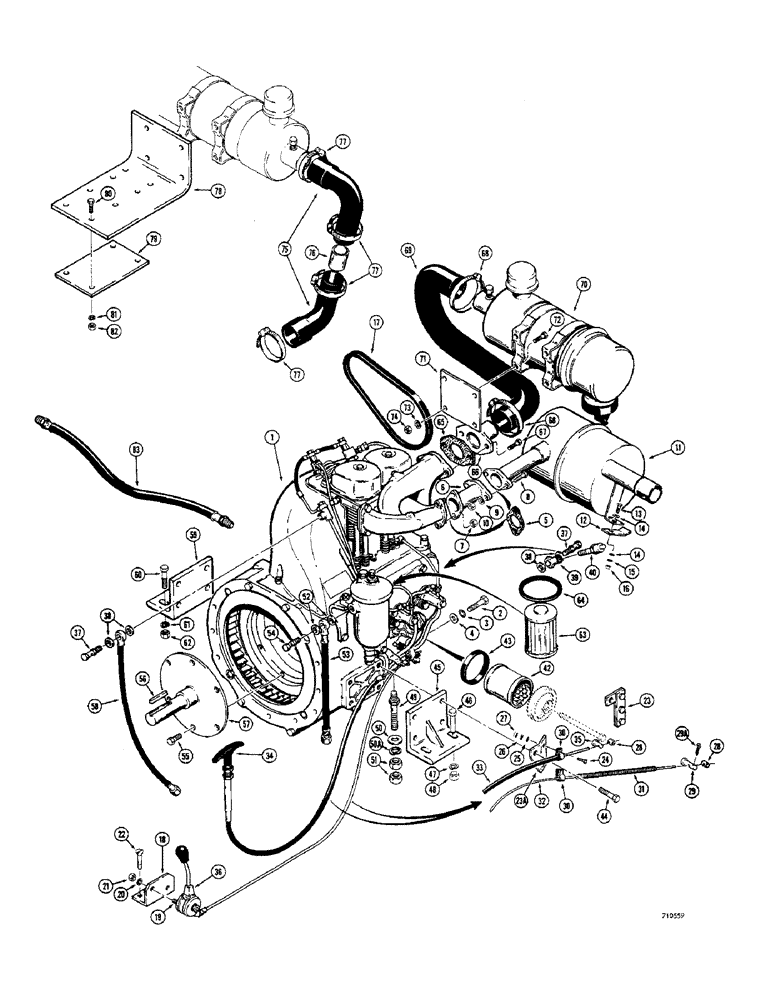

Схема запчастей Case IH 1500-SERIES - (006) - DEUTZ DIESEL ENGINE (10) - ENGINE

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

ENGINE - 26 H.P., Deutz F2L812 (1526)

1шт.

Refer to Deutz engine manual for engine service and parts.

1шт.

2

T42504

SPARE PART mounting, metric

2шт.

3

193-13

SPARE PART Ext Tooth, 9/16"

2шт.

4

195-2057

WASHER - plain (9/16")

2шт.

5

T41776

GASKET

exhaust (When stock is exhausted, order T42492 gasket)

2шт.

5

T42492

MANIFOLD GASKET

exhaust

2шт.

6

T41747

SPARE PART muffler

1шт.

7

100016

NUT,M10 x 1.5, Cl 8

Metric, Adapter to Manifold

2шт.

8

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC) If used

2шт.

11

T42488

SPARE PART engine

1шт.

12

T41775

BRACKET - muffler

1шт.

13

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

14

95-5

WASHER,3/8" x 7/8" x .083"

plain (5/16")

2шт.

15

92-5

LOCK WASHER,5/16"

1шт.

16

9635082

NUT,5/16" - 18, Gr 5

1шт.

17

T42486

SPARE PART generator

1шт.

18

T40245

BRACKET

throttle control

1шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC)

2шт.

22

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

flat head machine (1/4" - 20 NC x 5/8") If used

2шт.

23

T40695

X

BRACKET - throttle shutoff assembly (Service with T42293 bracket)

1шт.

23a

T42293

BRACKET

throttle and decompression cable

1шт.

24

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

25

95-5

WASHER,3/8" x 7/8" x .083"

plain (5/16")

2шт.

26

92-5

LOCK WASHER,5/16"

2шт.

27

9635082

NUT,5/16" - 18, Gr 5

2шт.

28

L32208

CLAMP

STOP - cable adjusting

2шт.

29

T42487

SHAFT - throttle cable

1шт.

29a

132-48

COTTER PIN,1/8" x 1"

1шт.

30

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

cable

2шт.

31

T42248

SPARE PART throttle cable

1шт.

32

T42489

CABLE

throttle

1шт.

33

T42247

CABLE

decompression, Incl. Ref 34, 34A

1шт.

34

L32679

HANDLE

cable

1шт.

34a

L32208

CLAMP

STOP - cable adjusting (Not illustrated)

1шт.

35

141-2

CLEVIS PIN,1/4" x .770"

clevis, T42247 cable

1шт.

36

T40244

THROTTLE CONTROL - diesel

1шт.

37

T42497

SPARE PART sending unit and fuel return

2шт.

38

T42496

SPARE PART sending unit and fuel return

4шт.

39

T42495

SPARE PART sending unit

1шт.

40

T42494

SENDING UNIT - oil pressure

1шт.

41

RESERVED

1шт.

42

T42508

SPARE PART oil filter

1шт.

43

T42509

SPARE PART oil filter

1шт.

44

T42503

BOLT

SPARE PART mounting, metric

8шт.

45

T41857

BRACKET - L.H. motor mount

1шт.

46

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

HHCS - 1/2" - 20 NF x 2-1/2"

2шт.

47

92-8

LOCK WASHER,1/2"

2шт.

48

25-118

NUT,1/2"-20, G5

(1/2" - 20 NF)

2шт.

49

T42635

SPARE PART engine mounting

2шт.

50

195-106

WASHER,1/2"

plain

2шт.

50a

92-8

LOCK WASHER,1/2"

2шт.

51

25-108

NUT,1/2"-13, G5

Hex

4шт.

52

T42499

SEAL

fuel inlet hose and plug

3шт.

53

T42244

HOSE - fuel intake

1шт.

54

T42498

BOLT

fuel intake hose

1шт.

55

T40325

SPARE PART adapter plate, metric

6шт.

56

A26494

SPARE PART square

1шт.

57

T42398

PLATE ASSY.

flywheel adapter

1шт.

58

T42245

SPARE PART fuel return

1шт.

59

T40328

BRACKET - R.H. motor mount

1шт.

60

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

HHCS - 1/2" - 20 NF x 2-1/2"

2шт.

61

92-8

LOCK WASHER,1/2"

2шт.

62

25-118

NUT,1/2"-20, G5

hex. (1/2" - 20 NF)

2шт.

63

T42507

SPARE PART fuel filter

1шт.

64

T42506

SPARE PART fuel filter

1шт.

65

T42500

SPARE PART intake manifold

1шт.

66

T42249

ADAPTER - intake manifold

1шт.

67

T42502

BOLT - intake manifold, metric

2шт.

68

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

69

T42296

SPARE PART air intake, See Ref 75, Start Serial: 9813801

1шт.

70

REF

INSTRUCTION

AIR CLEANER - parts list Fig.14

1шт.

71

T40615

PLATE - mounting, air cleaner, See Ref 78, 79, Start Serial: 9813801

1шт.

72

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

73

92-5

LOCK WASHER,5/16"

2шт.

74

9635082

NUT,5/16" - 18, Gr 5

2шт.

75

T40360

SPARE PART air intake, See Ref: 69, cut to fit, Serial Range: -9813801

2шт.

76

T42246

SPARE PART Hose splice

1шт.

77

218-260

CLAMP - hose

4шт.

78

T42018

SPARE PART air cleaner, See Ref 71, Serial Range: -9813801

1шт.

79

T41921

PLATE - mounting, See Ref 71, Serial Range: -9813801

1шт.

80

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

4шт.

81

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

82

9635082

NUT,5/16" - 18, Gr 5

4шт.

83

T41162

HOSE ASSY.

fuel equalizer

1шт.

Выбрано товаров: 89
