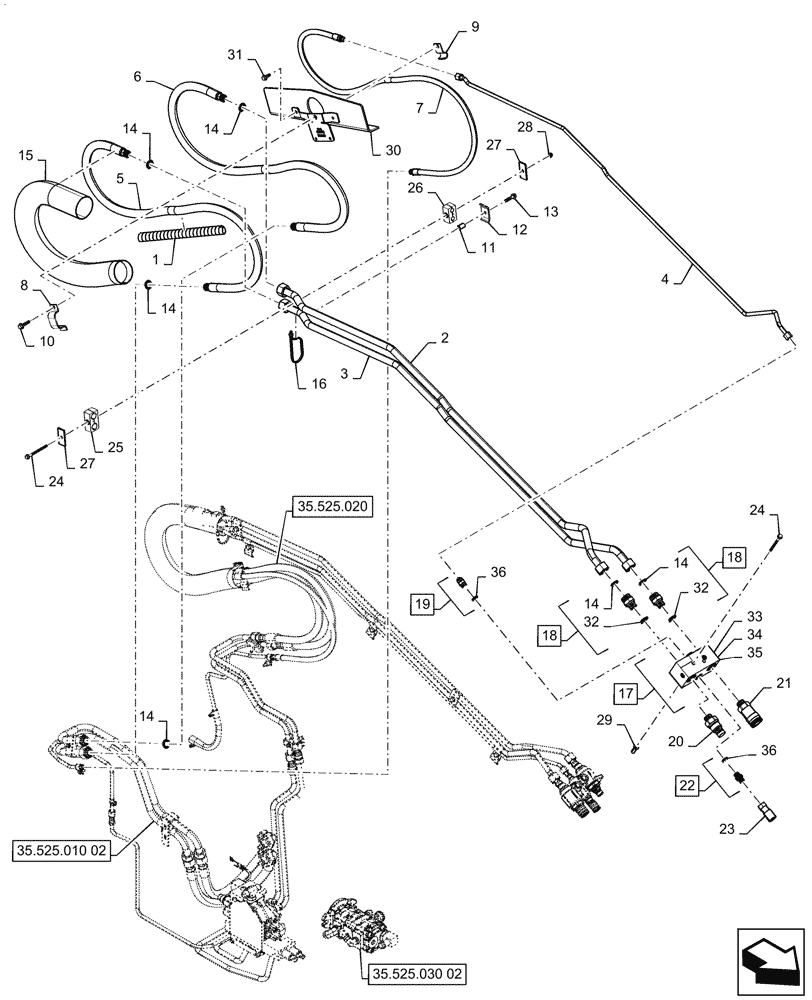

Запчасти Case IH SV340 (35.525.020[02]) - ENHANCED HIGH FLOW AUXILIARY HYDRAULIC, BOOM PLUMBING (35) - HYDRAULIC SYSTEMS

1

84423192

Protective Hose Guard, Cut to Length, 600mm L

SLEEVE

1шт.

2

84533277

EHF Aux Arm

TUBE

1шт.

3

84533279

EHF Aux Arm

HYD TUBE

1шт.

4

84533281

EHF Case Drain Arm

HYD TUBE

1шт.

5

84356599

EHF Aux Arm

HYDRAULIC HOSE,19.05mm ID x 1835mm L, SAE 100R13

1шт.

6

84356600

EHF Aux Arm

HYDRAULIC HOSE,19.05mm ID x 1875mm L, SAE 100R13

1шт.

7

84482352

EHF Case Drain

HYDRAULIC HOSE,9.53mm ID x 2021mm L, SAE 100R17

1шт.

8

84282424

HOSE CLAMP

Double

1шт.

9

47374617

CLAMP,18mm ID, 12.5mm Bolt Hole, J Type

1шт.

10

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

11

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

2шт.

12

84254045

CLAMP,66mm L

Tube

2шт.

13

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

2шт.

14

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

6шт.

15

84362111

GUARD,85mm ID x 90mm OD x 1070mm L

1шт.

16

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

17

84486899

Flushing, Incl 34 - 36

HYDRAULIC VALVE

1шт.

18

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 14, 32

2шт.

19

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 37

1шт.

20

84257183

QUICK MALE COUPLING,5/8" x -12 ORB

1шт.

21

84257182

COUPLING, QUICK, FEM,5/8" x -12 ORB

1шт.

22

259619

HYD CONNECTOR,3/4" - 16 ORB x 3/4" - 16 ORB

Incl 37

1шт.

23

385357A1

COUPLING

Female

1шт.

24

86511844

BOLT,M8 x 1.25 x 100mm, 22mm Thd, Cl 8.8

3шт.

25

1546028C1

CLAMP,25.4mm ID x 82mm L

1шт.

26

1546026C1

CLAMP

Top Bar

1шт.

27

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

3шт.

28

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

29

84580760

RIVET,Flng, 14mm OD x 21.5mm L

2шт.

30

47941018

MOUNTING PLATE

RH Clamp

1шт.

31

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

32

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

33

84490070

Flushing Valve

CHECK VALVE

1шт.

34

84525515

Disc 0.082"

ORIFICE

1шт.

35

84490073

Cartridge Hot Oil Shuttle

CONTROL VALVE

1шт.

36

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.
