Запчасти Case IH SV340 (35.525.020[01]) - HIGH FLOW AUXILIARY HYDRAULIC, BOOM PLUMBING (35) - HYDRAULIC SYSTEMS

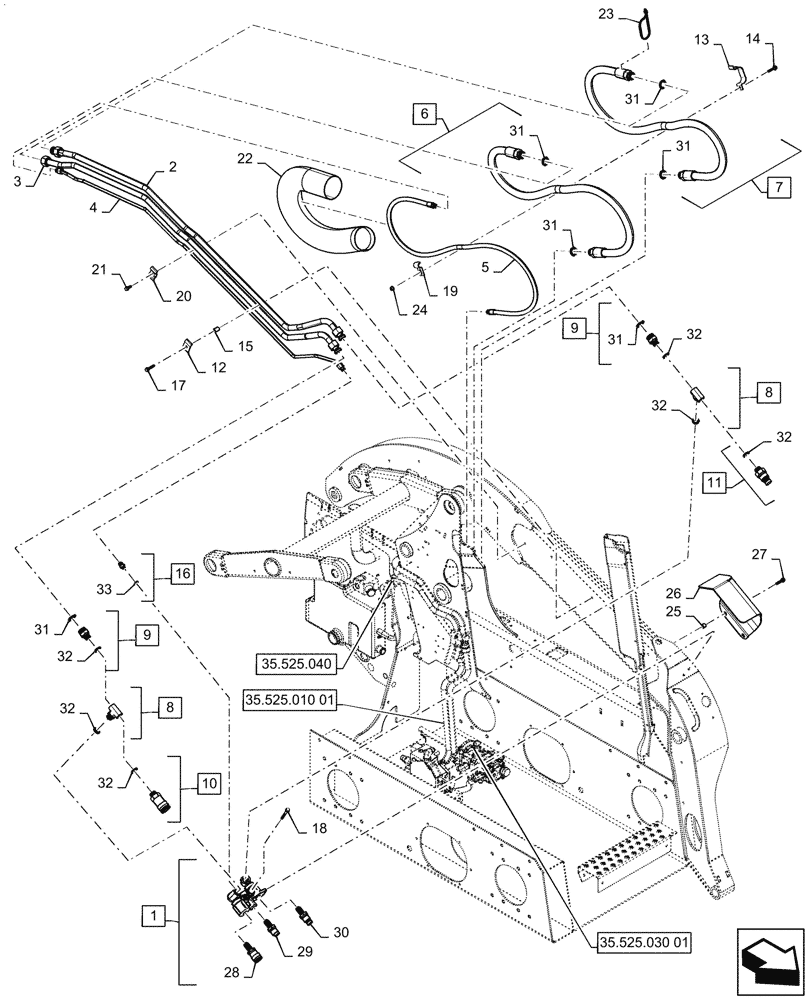

Схема запчастей Case IH SV340 - (35.525.020[01]) - HIGH FLOW AUXILIARY HYDRAULIC, BOOM PLUMBING (35) - HYDRAULIC SYSTEMS
35.525.040
25
14
33
16
8
1
19
31
15
10
23
5
2
4
8
31
31
32
18
13
28
12
17
9
30
32
20
22
3
31
24
6
31
9
26
32
7
21
32
32
31
11
27
29
32
35.525.010 01
35.525.030 01

Артикул

Название

Примечание

Количество

1

47447054

VALVE

High Flow Manifold, Incl 28 - 30

1шт.

2

47891211

High Flow

HYD TUBE

1шт.

3

47891209

High Flow

HYD TUBE

1шт.

4

84297619

RIGID TUBE

Case Drain

1шт.

5

84281611

FLEXIBLE HOSE,10mm ID x 2085mm L, SAE 100R17

Case Drain

1шт.

6

47922315

High Flow, Incl 31

HYDRAULIC HOSE,25mm ID x 1835mm L, SAE 100R19

1шт.

7

47922316

High Flow, Incl 31

HYDRAULIC HOSE,25mm ID x 1925mm L, SAE 100R19

1шт.

8

84255994

FITTING,Male - 12 ORB x Fem - 12 ORB x Fem - 12 ORB

Incl 32

2шт.

9

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 31, 32

2шт.

10

84257182

COUPLING, QUICK, FEM,5/8" x -12 ORB

Incl 32

1шт.

11

84257183

QUICK MALE COUPLING,5/8" x -12 ORB

Incl 32

1шт.

12

84254045

CLAMP,66mm L

Tube

2шт.

13

47920610

Double Hose

CLAMP

1шт.

14

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

15

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

2шт.

16

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 33

1шт.

17

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

2шт.

18

84331287

SCREW,HWH, 3/8" - 16 x 3"

2шт.

19

47920433

Single Hose

CLAMP

1шт.

20

84254056

HOSE CLAMP,69.2mm L

Butterfly Tube

3шт.

21

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

3шт.

22

47980272

Hose, 1070mm L, Nylon

GUARD

1шт.

23

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

24

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

25

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

1шт.

26

84306937

COVER PLATE

Hydraulic, Tan

1шт.

27

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

2шт.

28

47396760

COUPLING,1/2" Male

1шт.

29

47396762

COUPLING,3/8" Female

1шт.

30

47396761

COUPLING,1/2" Female

1шт.

31

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

6шт.

32

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

6шт.

33

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 33
