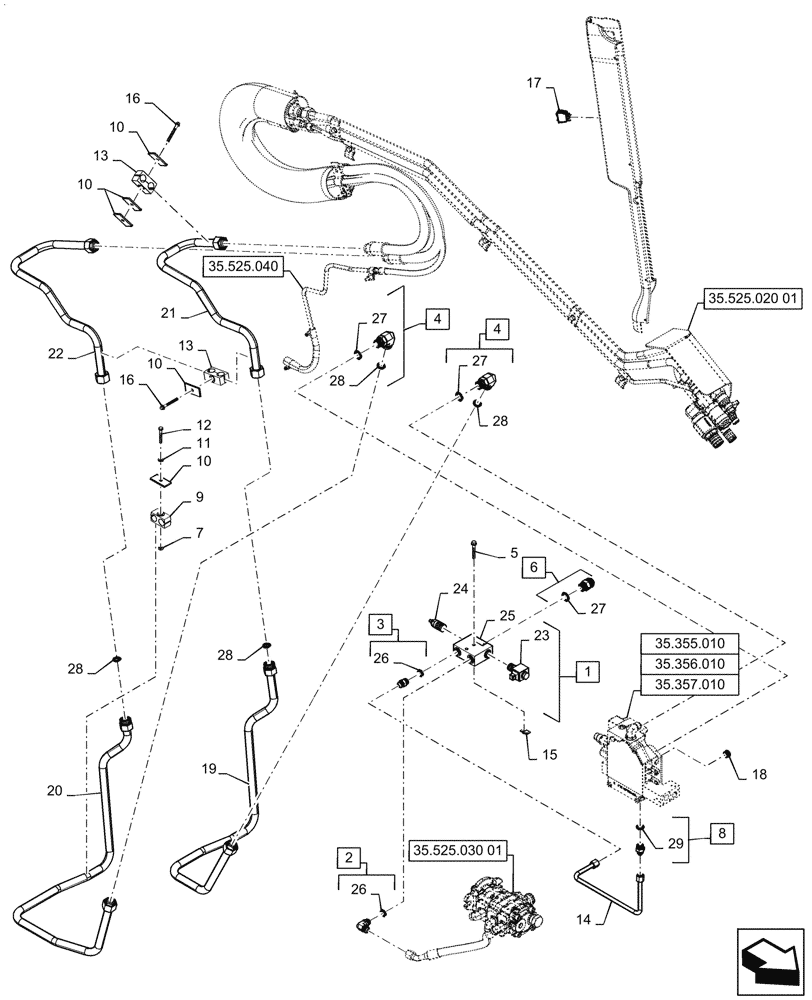

Запчасти Case IH SV340 (35.525.010[01]) - HIGH FLOW AUXILIARY HYDRAULIC, CHASSIS PLUMBING (35) - HYDRAULIC SYSTEMS

1

47647506

High Flow Combiner, Incl 23 - 25

VALVE

1шт.

2

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 26

1шт.

3

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 26

1шт.

4

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

Incl 27, 28

2шт.

5

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

6

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 27

1шт.

7

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

8

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl 29

1шт.

9

225529A1

CLAMP,Dual, 25.4mm ID

1шт.

10

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

5шт.

11

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

12

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

13

1546028C1

CLAMP,25.4mm ID x 82mm L

2шт.

14

47651630

High Flow Valve to Loader Valve

HYD TUBE

1шт.

15

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

16

84323488

SELF-TAP SCREW,Hex Flg, M8 x 70mm

2шт.

17

84251427

SWITCH

Rocker, High Flow

1шт.

18

84373460

PLUG,23.8mm OD

Load Check

1шт.

19

47873588

Loader Valve to LH Tower, Connects to A3 Port on Control Valve, Incl 28

HYD TUBE

1шт.

20

47873590

Loader Valve to LH Tower, Connects to B3 Port on Control Valve, Incl 28

HYD TUBE

1шт.

21

47891205

LH Tower, Connects to Aux Male Coupler

HYD TUBE

1шт.

22

47891207

LH Tower, Connects to Aux Female Coupler

HYD TUBE

1шт.

23

84390144

COIL

High Flow, Included W/ Ref 1

1шт.

24

84304583

POPPET

Valve, Included W/ Ref 1

1шт.

25

84304585

SEAL KIT

High Flow Combiner, Included W/ Ref 1

1шт.

26

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

27

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

28

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

29

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
