Запчасти Case IH SV340 (82.300.020) - HYDRAULIC RELEASE COUPLER (82) - FRONT LOADER & BUCKET

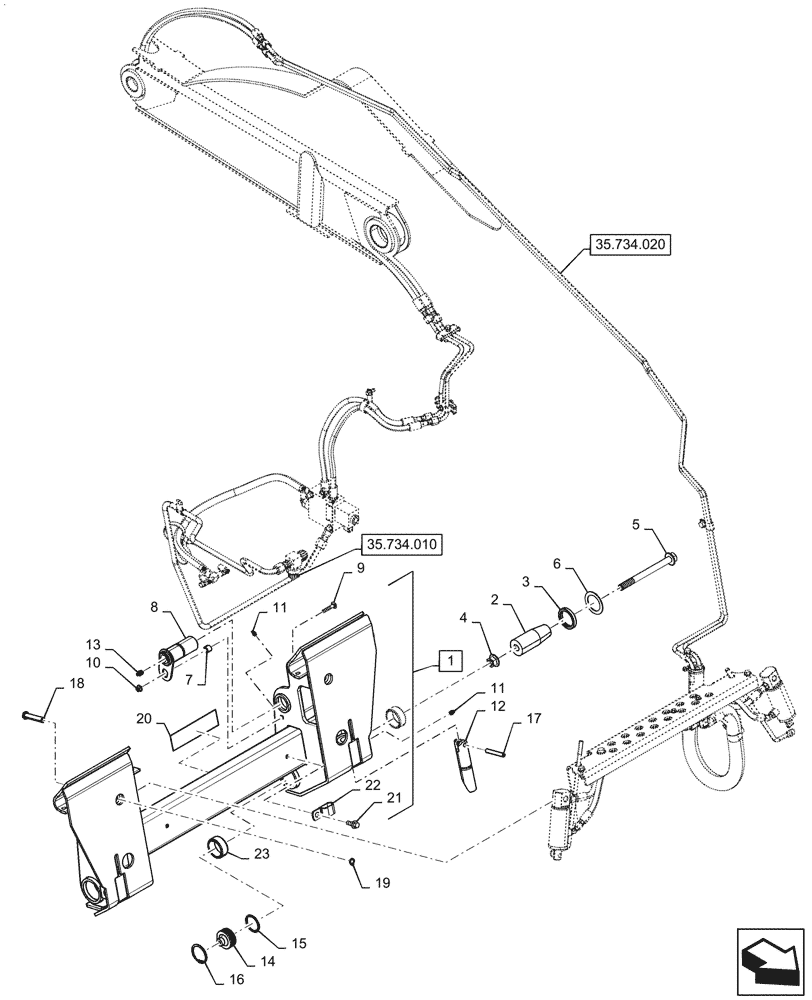

Схема запчастей Case IH SV340 - (82.300.020) - HYDRAULIC RELEASE COUPLER (82) - FRONT LOADER & BUCKET
35.734.010
1
16
14
13
11
21
19
6
7
10
2
15
17
22
8
18
4
5
12
11
9
20
3
23
35.734.020

Артикул

Название

Примечание

Количество

1

47550001

Coupler Frame, Gray W/ Decals, Incl 20 - 23

KIT

1шт.

2

47899093

PIN,109.51mm L x 44.2mm OD

Boom to Coupler

2шт.

3

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

2шт.

4

87016581

FLANGE NUT,M16 x 2, CI 10

2шт.

5

87015924

BOLT,Hex, M16 x 180mm, Cl 10.9

2шт.

6

87613203

WASHER,1.78" ID x 2.5" OD x 0.06" Thk

2шт.

7

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

2шт.

8

47687653

PIN,38.15mm OD x 95mm L

2шт.

9

86512444

CARRIAGE BOLT,M8 x 1.25 x 40mm, Full Thd, Cl 8.8

2шт.

10

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

11

87414

LUBE NIPPLE,1/4" - 28

4шт.

12

87758365

PIN,31.75mm OD x 142.3mm L

Latch

2шт.

13

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

14

47751768

PLUG,49.45mm OD x 35mm H

2шт.

15

14459080

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

2шт.

16

86639140

SNAP RING,M50, Int

2шт.

17

86624093

PIN,9.53mm OD x 63.5mm L

2шт.

18

87387540

PIN,12.7mm OD x 67.55mm L

Handle Pivot

2шт.

19

87612753

RETAINER,#50, 0.46", Ext

2шт.

20

84367561

WARNING DECAL

Crush Hazard

1шт.

21

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

1шт.

22

87550233

SELF-TAP SCREW,Hex Flg, M10 x 1.5 x 25mm

1шт.

23

47777377

BUSHING,44.79mm ID x 54.15mm OD x 22.3mm L

Boom to Coupler Pin

4шт.

Выбрано товаров: 23
