Запчасти Case IH SV340 (35.723.020) - BUCKET HYDRAULIC CYLINDER LINES (35) - HYDRAULIC SYSTEMS

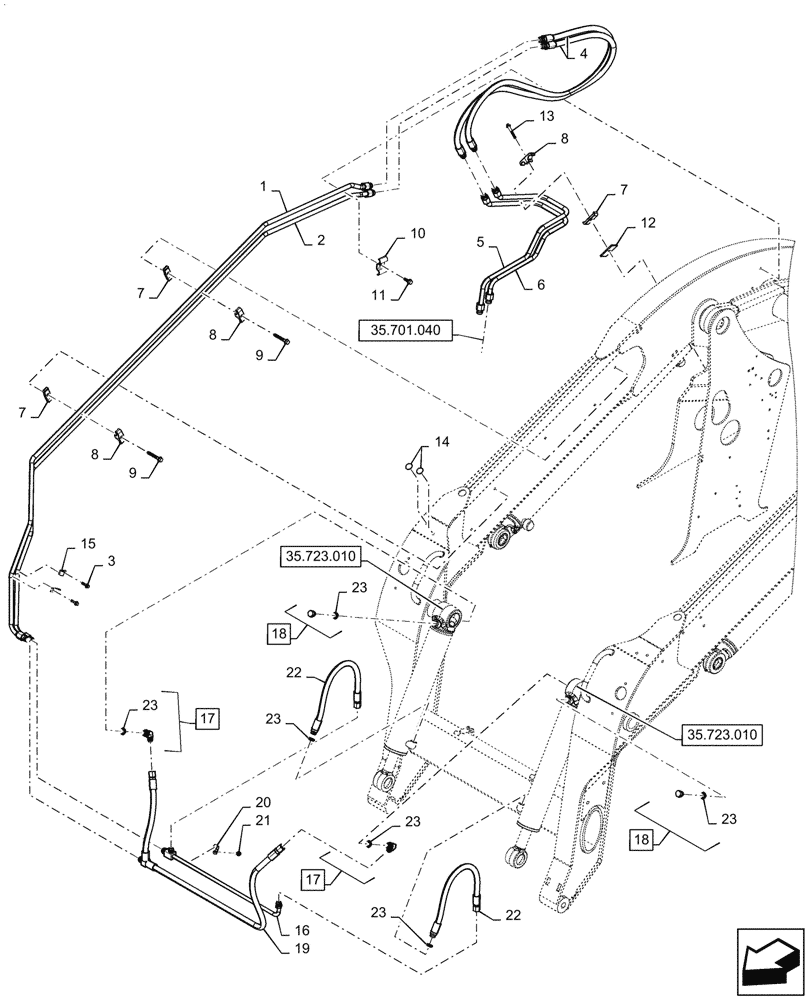

Схема запчастей Case IH SV340 - (35.723.020) - BUCKET HYDRAULIC CYLINDER LINES (35) - HYDRAULIC SYSTEMS
35.723.010
8
22
8
10
14
23
18
23
6
7
22
23
18
7
23
5
4
1
9
11
7
15
23
12
17
16
13
9
20
17
23
21
8
2
19
3
35.701.040
35.723.010

Артикул

Название

Примечание

Количество

1

47503880

HYD TUBE

Bucket Cylinder

1шт.

2

47996328

HYD TUBE

Bucket Cylinder

1шт.

3

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

4

47651809

Bucket Cylinder

HOSE

2шт.

5

47560321

TUBE

Bucket, RH Tower

1шт.

6

47560323

TUBE

Bucket, RH Tower

1шт.

7

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

3шт.

8

D120613

CLAMP,20mm ID

3шт.

9

87025275

SCREW,Hex, 3/8" - 16 x 2-1/2"

2шт.

10

84252828

CLAMP,65.2mm L

Butterfly Tube

1шт.

11

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

1шт.

12

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

1шт.

13

87582902

SELF-TAP SCREW,Hex, M8 x 1.25 x 55mm

1шт.

14

414635A1

COVER,25.4mm OD x 0.51mm Thk

2шт.

15

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

16

48024921

HYD TUBE

Bucket Cylinder Crossover

1шт.

17

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 23

2шт.

18

214389

PLUG,3/4" - 16 ORB

Incl 23

2шт.

19

47651810

Bucket Cylinder Base

HOSE

1шт.

20

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

21

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

22

47505812

HOSE,12.5mm ID x 593mm L, SAE 100R16

2шт.

23

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

6шт.

Выбрано товаров: 23
