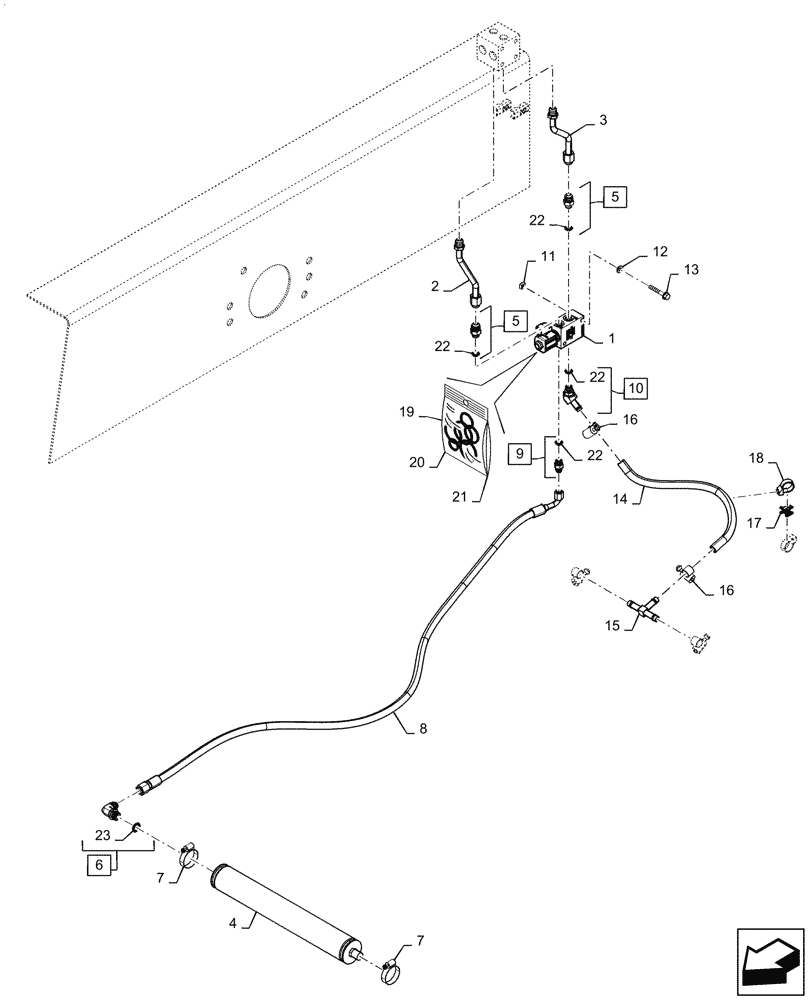

Запчасти Case IH SV340 (35.701.050[01]) - RIDE CONTROL (35) - HYDRAULIC SYSTEMS

1

47712515

VALVE

Ride Control

1шт.

2

47651044

Ride Control Valve to Manifold

HYD TUBE

1шт.

3

47651046

Ride Control Valve to Manifold

HYD TUBE

1шт.

4

87403797

ACCUMULATOR,275 Bar, 0.75L

Hydraulic

1шт.

5

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 22

2шт.

6

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 23

1шт.

7

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

2шт.

8

47651799

Ride Control to Accumulator

HOSE,10mm ID x 1550mm L, SAE 100R16

1шт.

9

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 22

1шт.

10

87302140

FITTING,45 Degree, 1/2" Hose x 9/16" - 18 ORB Beaded

Incl 22

1шт.

11

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

12

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

13

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

14

47782375

HOSE,12.7mm ID x 450mm L

1шт.

15

84179891

ADAPTER,Tee, 1/2" Hose Barb x 1/2" Hose Barb x 1/2" Hose Barb

1шт.

16

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

4шт.

17

84318895

SPACER,17.97mm H

1шт.

18

86991009

CABLE TIE,222mm L, Nylon

2шт.

19

47712517

COIL

Ride Control, Hydraulic Coupler, Services 1

1шт.

20

47712518

VALVE

Ride Control, Spool, Services 1

1шт.

21

47712519

KIT

Seal, Ride Control Valve, Services 1

1шт.

22

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

23

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
