Запчасти Case IH SV340 (35.701.030) - BOOM LINES (35) - HYDRAULIC SYSTEMS

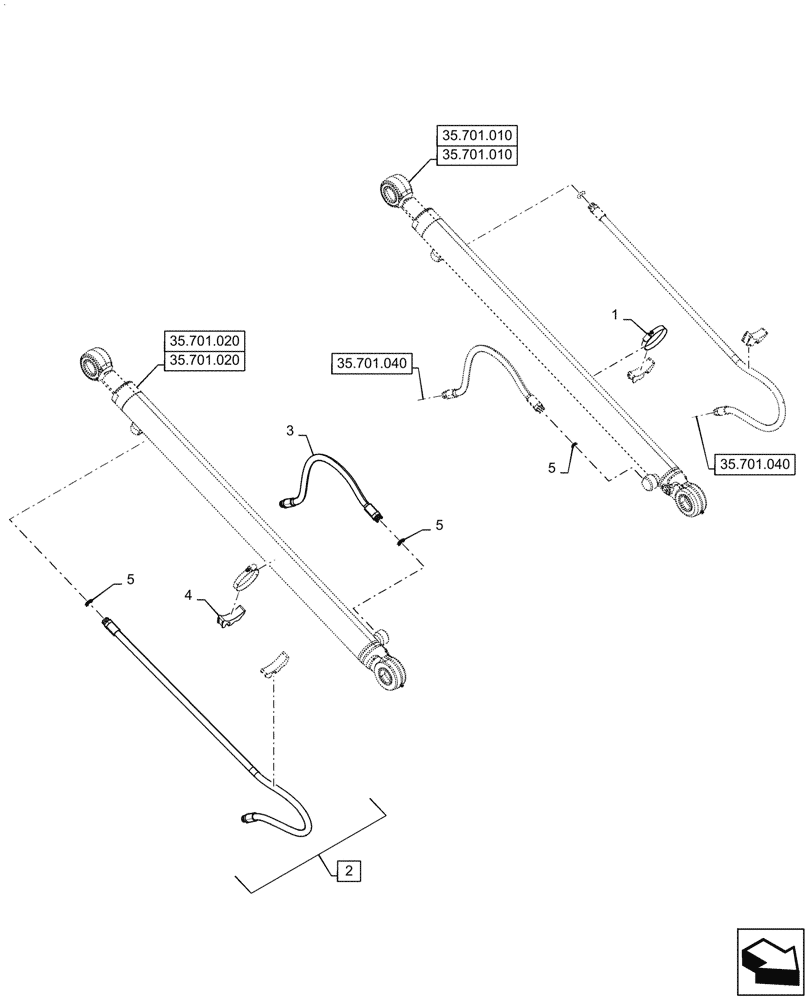

Схема запчастей Case IH SV340 - (35.701.030) - BOOM LINES (35) - HYDRAULIC SYSTEMS
35.701.010
5
5
3
4
2
5
1
35.701.020
35.701.010
35.701.020
35.701.040
35.701.040

Артикул

Название

Примечание

Количество

1

381144

HOSE CLAMP,84.1mm - 107.9mm, Worm Gear

2шт.

2

47651798

Hydraulic Cylinder Rod, Incl 5

HOSE,10mm ID X 1130mm L, SAE100R19

2шт.

3

47738631

HYDRAULIC HOSE,10mm ID x 572mm L, SAE 100R16

Hydraulic Cylinder Base

2шт.

4

84255986

HOSE CLAMP

Hydraulic Cylinder Saddle

2шт.

5

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

Выбрано товаров: 5
