Запчасти Case IH SV340 (35.525.050) - HYDRAULIC VALVE SUPPLY LINES MECH-EH, EU (35) - HYDRAULIC SYSTEMS

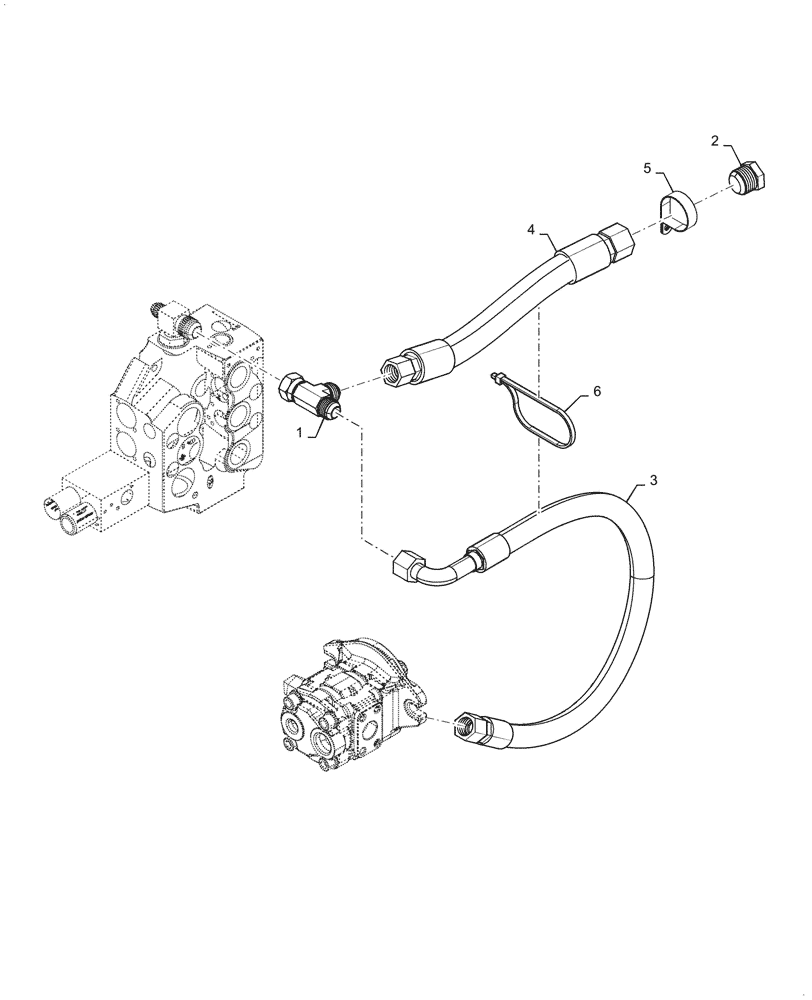

Схема запчастей Case IH SV340 - (35.525.050) - HYDRAULIC VALVE SUPPLY LINES MECH-EH, EU (35) - HYDRAULIC SYSTEMS
4
1
5
3
6
2

Артикул

Название

Примечание

Количество

1

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

2

9790527

PLUG,1-5/16" - 12 JIC

1шт.

3

47668830

Valve Supply

HOSE,1030mm L, SAE 100R19

1шт.

4

47668834

Resonator

HOSE,417mm L, SAE 100R19

1шт.

5

87595771

ISOLATOR,200mm L x 50mm W x 3.2mm Thk

1шт.

5

84265306

CLAMP,47.6mm, Coat, 8.7mm Bolt Hole, P Type

, Start Year: 06-FEB-17

1шт.

6

L18331

CABLE TIE,375.9mm L, Nylon, Black

, Years: -05-FEB-17

3шт.

6

87438046

CABLE TIE,375.9 mm L x 8mm W

, Start Year: 06-FEB-17

1шт.

Выбрано товаров: 8
