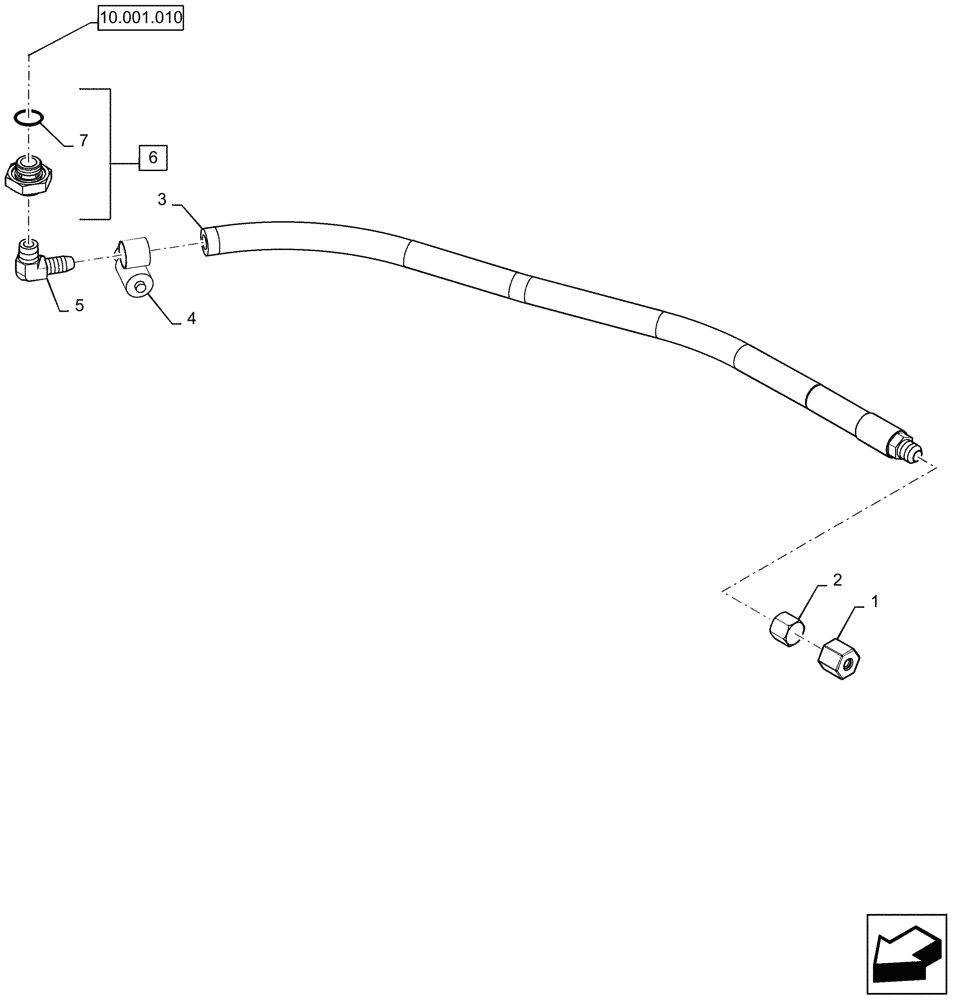

Запчасти Case IH SV340 (10.102.010) - ENGINE OIL DRAIN LINE (10) - ENGINE

1

47786509

Cover

CAP,22.1mm ID, Yellow

1шт.

2

262159

CAP,3/4" - 16 Fem JIC

Drain

1шт.

3

47782202

W/ 3/4" - 16, Male 37° Flare

HOSE,12.5mm ID x 805mm L, SAE 100R17

1шт.

4

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

1шт.

5

87016895

FITTING,90 Degree, 3/8" NPTF x 1/2" Hose Barbed

1шт.

6

47751176

Incl 7

REDUCER,3/8" - 18 NPTF x M22 x 1.5 ORB Male

1шт.

7

271913

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

1шт.
