(90.108.020[01]) - DECALS

Запчасти Case IH SV340 (90.108.020[01]) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

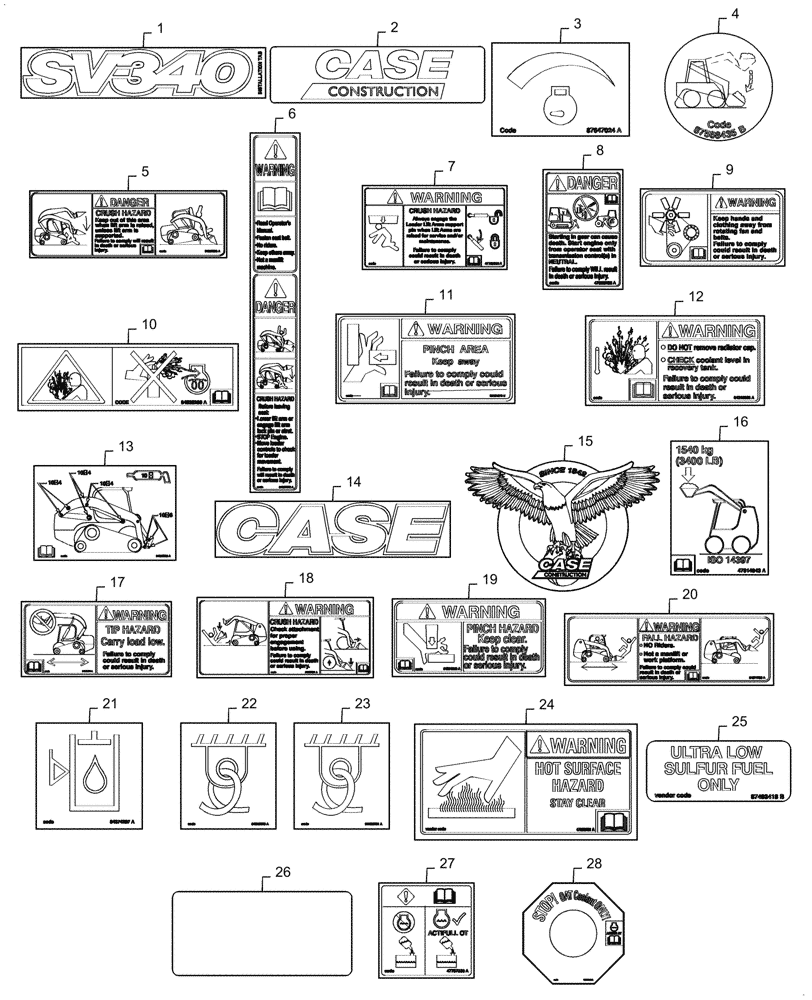

Схема запчастей Case IH SV340 - (90.108.020[01]) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS
25
5
1
20
13
11
15
27
7
18
12
4
17
10
22
14
21
26
19
6
24
23
16
8
2
9
28
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47914926

SV340 Model Number

DECAL

2шт.

2

84385194

DECAL

Front, Case Logo

1шт.

3

87647024

DECAL

Throttle

1шт.

4

87568435

DECAL

Boom Override

1шт.

5

84367563

DANGER DECAL

Boom Crush Hazard

1шт.

6

84367570

WARNING DECAL

Combination

1шт.

7

47739938

WARNING DECAL

Loader Lock

1шт.

8

47858283

DANGER DECAL

Engine Start, Danger

1шт.

9

9828825

WARNING DECAL

Fan

1шт.

10

84535230

WARNING DECAL

No Ether

1шт.

11

86521673

WARNING DECAL

Pinch Point

2шт.

12

84316983

WARNING DECAL

Warning, Radiator Cap

1шт.

13

84367583

Lubrication

DECAL

1шт.

14

48005121

DECAL

Case Logo, Stripes

2шт.

15

47919778

EMBLEM

Case Eagle

1шт.

16

47914943

Operating Capacity

DECAL

1шт.

17

84367572

WARNING DECAL

Tip Hazard

1шт.

18

84367561

WARNING DECAL

Attachment Crush Hazard

1шт.

19

84394350

WARNING DECAL

Pinch Point

2шт.

20

84374298

WARNING DECAL

No Rider, Man Lift

1шт.

21

84374297

DECAL

Hydraulic Oil Level

1шт.

22

84315529

DECAL,64mm L x 71mm W

Tie Down , 64mm x 71mm

4шт.

23

84469201

DECAL,63.97mm L x 71.26mm W

Tie Down, 63.97mm x 71.26mm

2шт.

24

47856201

WARNING DECAL

Hot Surface

1шт.

25

87493418

DECAL,50mm x 21mm H

Ultra Low Sulfur Fuel

1шт.

26

294752A1

REFLECTOR,94mm L X 44mm W

Red

2шт.

27

47757330

DECAL,50mm x 50mm H

OAT Coolant

1шт.

28

47772440

DECAL

OAT Coolant Card

1шт.
