(90.105.020) - HEEL PLATE, FOAM INSULATION

Запчасти Case IH SV340 (90.105.020) - HEEL PLATE, FOAM INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

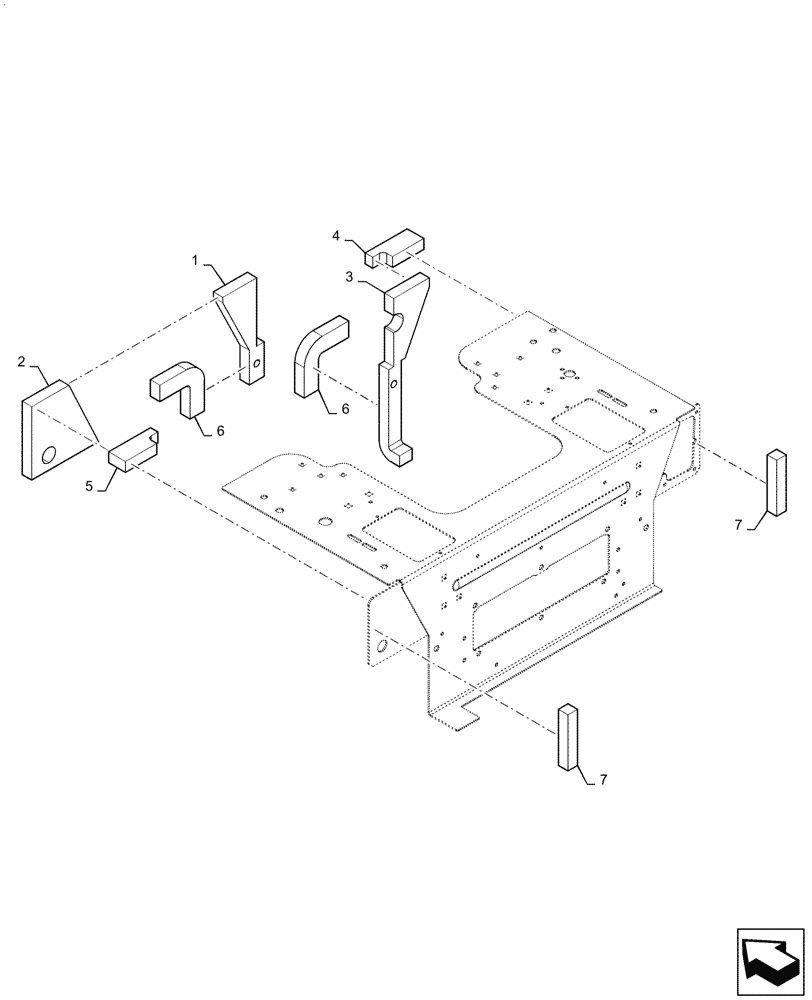

Схема запчастей Case IH SV340 - (90.105.020) - HEEL PLATE, FOAM INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
7
4
6
1
7
5
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84372629

FOAM INSULATION

RH Heel Plate, Formed

1шт.

2

84287773

FOAM INSULATION

RH Filler, Formed

1шт.

3

48013159

FOAM INSULATION

LH Heel Plate, Formed

1шт.

4

47875089

FOAM INSULATION

LH Upper Chassis Filler, Formed

1шт.

5

47875087

FOAM INSULATION

RH Upper Chassis Filler

1шт.

6

47874957

FOAM INSULATION,177.8mm L x 38.1mm W x 25.4mm Thk

Chassis Filler

2шт.

7

47870227

FOAM INSULATION,130mm L x 25.4mm W x 25.4mm Thk

Chassis Filler

2шт.
