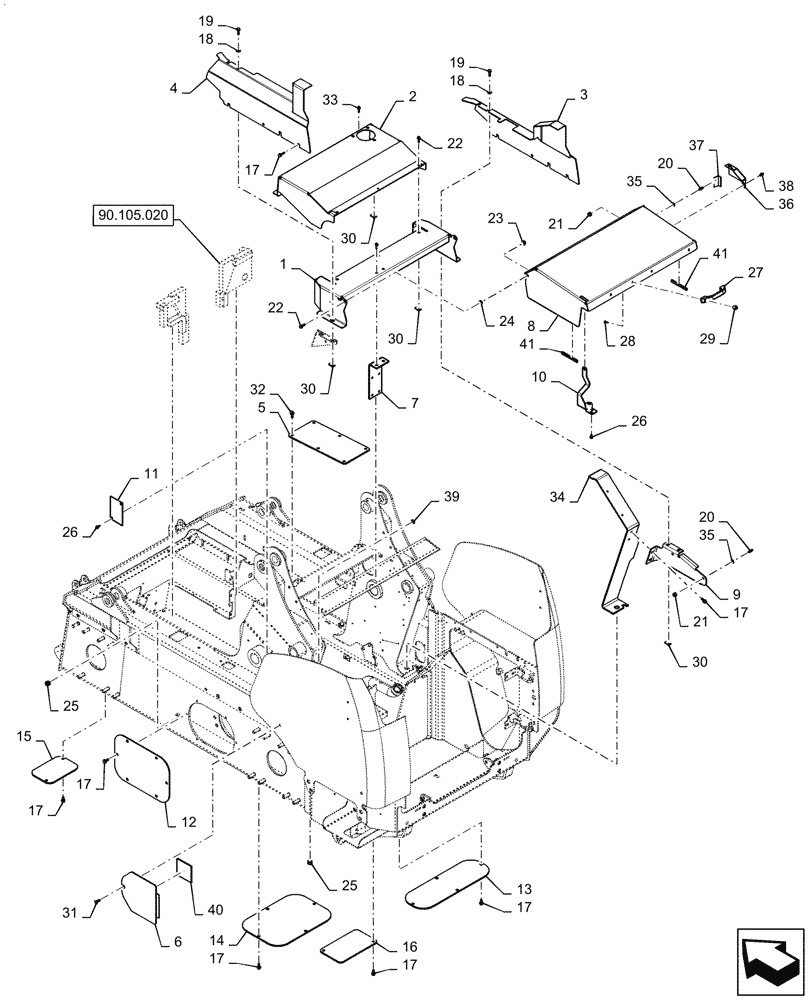

Запчасти Case IH SV340 (90.100.020) - HOODS & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47645343

Rear Deck Assy

PANEL

1шт.

2

47707765

Rear Deck

PANEL

1шт.

3

47766793

RH

PANEL

1шт.

4

47766772

LH

PANEL

1шт.

5

47747036

DEF Tank Access

COVER

1шт.

6

47822446

Battery

ACCESS COVER

1шт.

7

47606529

Air Cleaner Mounting

BRACKET

1шт.

8

47727029

Tilt Hood

HOOD

1шт.

9

47727083

Cover Mounting

ANGLE

1шт.

10

47798983

Hood Lock Tab

ANGLE

1шт.

11

84370417

PLATE,141mm L x 86mm W x 3.68mm Thk

2шт.

12

84260699

PLATE,400mm L x 280mm W x 4.75mm Thk

2шт.

13

47717894

Gray

PLATE,524.6mm L x 174.6mm W x 6.35mm Thk

1шт.

14

47717914

Gray

PLATE,431.6mm L x 303.6mm W x 6.35mm Thk

1шт.

15

47717905

Gray

PLATE,225mm L x 150mm W x 6.35mm Thk

1шт.

16

47717909

Gray

PLATE,275mm L x 160mm W x 6.35mm Thk

1шт.

17

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

32шт.

18

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

19

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

4шт.

20

189609A1

BALL STUD,M8 x 1.25

, Years: -13-OCT-16

2шт.

20

47974869

BALL STUD,M8 x 1.25 x 32.2mm L, 10mm Ball OD

, Start Year: 14-OCT-16

2шт.

21

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

22

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

7шт.

23

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

24

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

1шт.

25

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

4шт.

26

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

27

406256A1

HANDLE

Rear Hood

1шт.

28

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

29

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

30

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

10шт.

31

393698

SCREW,FLAT, M10 x 25mm, Cl 8.8

1шт.

32

87550233

SELF-TAP SCREW,Hex Flg, M10 x 1.5 x 25mm

6шт.

33

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

34

47683853

Cover Mounting

ANGLE

1шт.

35

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

36

47730746

Strut Cover

BRACKET

1шт.

37

47365894

SEAL

Cut to Length, 60mm L

1шт.

38

87752074

SCREW,HWH, M8 x 1.25 x 16mm

2шт.

39

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

40

47765854

Battery Retainer

FOAM,101.6mm L x 101.6mm W

1шт.

41

87702286

Cut to Length, 220mm L

TRIM,Bulk, 1/8" x 30480mm L

1шт.
