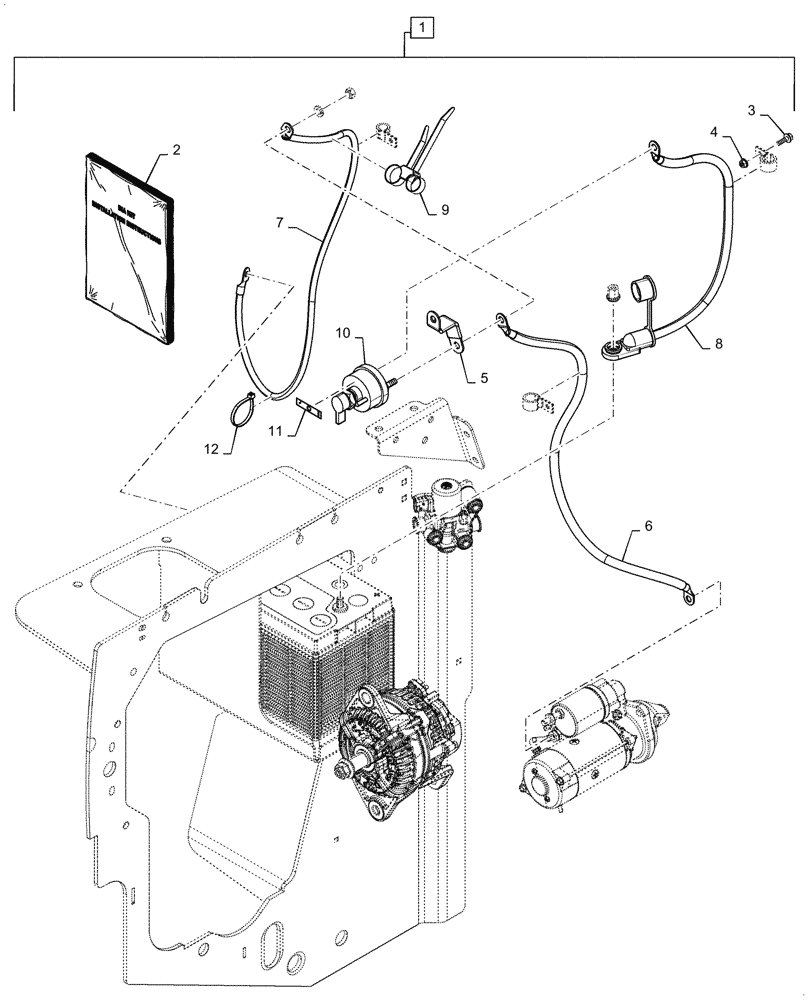

Запчасти Case IH SV340 (88.100.55[07]) - DIA KIT, BATTERY DISCONNECT (88) - ACCESSORIES

1

47936143

Battery Disconnect, Incl 2 - 12

KIT

1шт.

2

47941947

INSTRUCTION

Sheet

1шт.

3

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

1шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

5

47662616

Battery Disconnect

BAR

1шт.

6

47776509

Starter Disconnect

CABLE,825mm L

1шт.

7

47776510

Fuse Disconnect

CABLE,950mm L

1шт.

8

47776511

Battery Disconnect

CABLE,618mm L

1шт.

9

84386243

CLAMP,489mm L

Dual Tie, 1/4" Mounting Hole

1шт.

10

87458467

ROTARY SWITCH

Master Disconnect, Rotary

1шт.

11

176332A1

DECAL

Battery Disconnect

1шт.

12

L11541

CABLE TIE,203.2mm L, Nylon

1шт.
