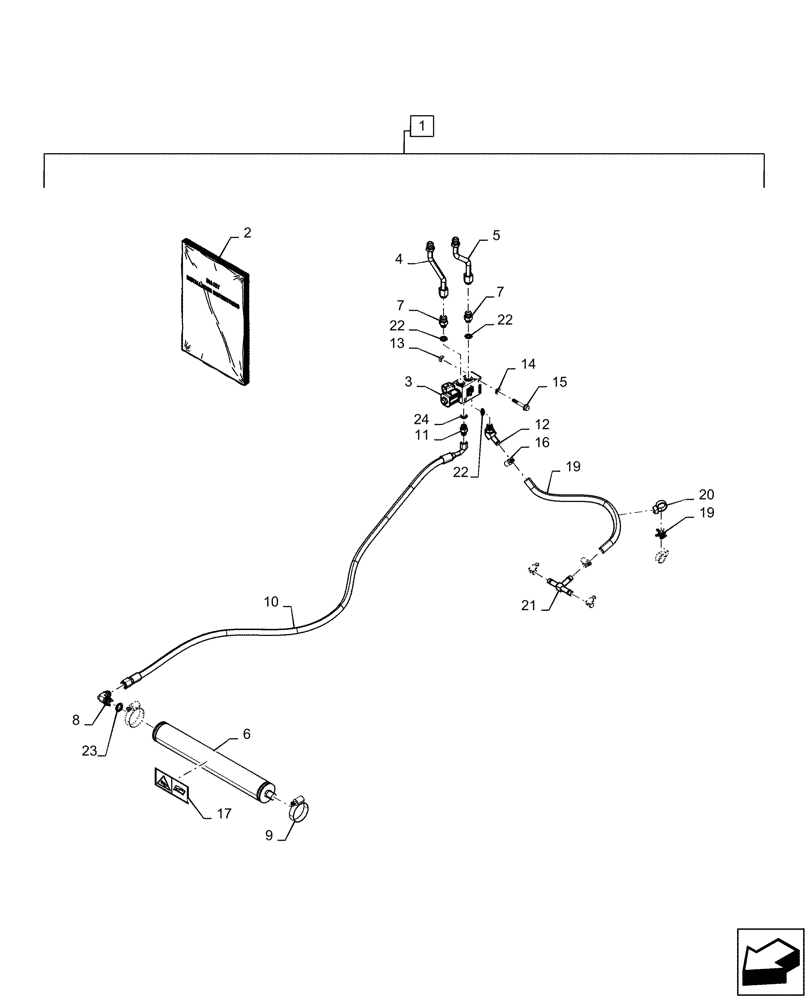

Запчасти Case IH SV340 (88.100.29[01]) - DIA KIT, RIDE CONTROL (88) - ACCESSORIES

1

47988516

Ride Control, Incl 2 - 24

KIT

1шт.

2

47988517

INSTRUCTION

Sheet

1шт.

3

47712515

VALVE

Ride Control

1шт.

4

47651044

Ride Contol to Manifold, Front

HYD TUBE

1шт.

5

47651046

Ride Control to Manifold, Rear

HYD TUBE

1шт.

6

87403797

ACCUMULATOR,275 Bar, 0.75L

Hydraulic

1шт.

7

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 22

2шт.

8

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 23

1шт.

9

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

2шт.

10

47651799

Ride Control Valve to Accumulator

HOSE,10mm ID x 1550mm L, SAE 100R16

1шт.

11

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 24

1шт.

12

87302140

FITTING,45 Degree, 1/2" Hose x 9/16" - 18 ORB Beaded

Incl 22

1шт.

13

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

14

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

15

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

16

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

4шт.

17

328903A1

DECAL

Warning - Pressurized System

1шт.

18

47782375

HOSE,12.7mm ID x 450mm L

1шт.

19

84318895

SPACER,17.97mm H

1шт.

20

86991009

CABLE TIE,222mm L, Nylon

2шт.

21

84179891

ADAPTER,Tee, 1/2" Hose Barb x 1/2" Hose Barb x 1/2" Hose Barb

1шт.

22

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

23

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

24

128826

O-RING,.078” Thk x .468” ID, 9/16”

1шт.
