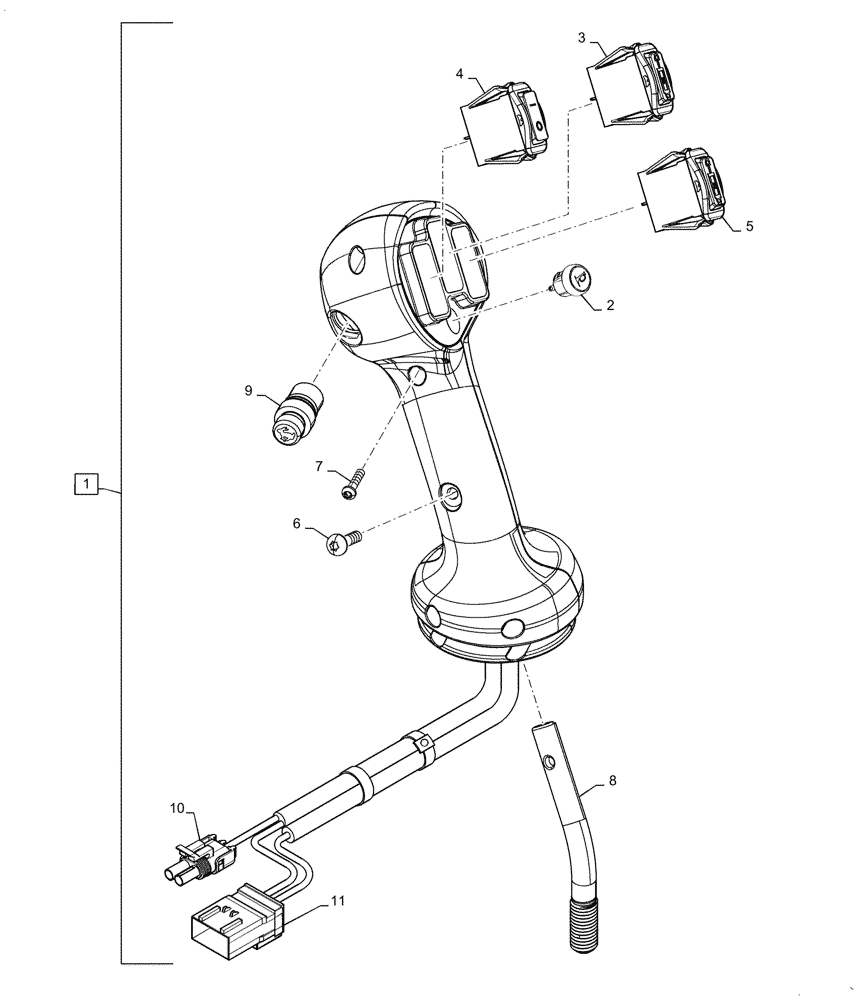

Запчасти Case IH SV340 (55.512.010[17]) - LEVEL 550 HANDLE GRIP, LH (55) - ELECTRICAL SYSTEMS

1

47777587

LH, Level 550, Incl 2 - 11

GRIP

1шт.

2

84296542

SWITCH ASSY

Horn

1шт.

3

84296547

SWITCH

Multifuction 3

1шт.

4

84398133

SWITCH

Multifuction 4

1шт.

5

84406820

Multifuction 2, Detent

ROCKER SWITCH

1шт.

6

87487159

SCREW,BTN HD, #10 - 32 x 5/8"

1шт.

7

87487160

SCREW,Torx, Pan HD, #6 - 19 x 5/8"

6шт.

8

87652818

ROD

Pilot Handle Mounting

1шт.

9

87673088

SWITCH

Push Button, 2-Speed

1шт.

10

87693821

ELEC CONNECTOR,Female, 2 Cavities

1шт.

11

NSS

NOT SOLD SEPARAT

Connector

1шт.
