Запчасти Case IH SV340 (55.408.010) - COMMON COMPONENTS & ELECTRICAL (55) - ELECTRICAL SYSTEMS

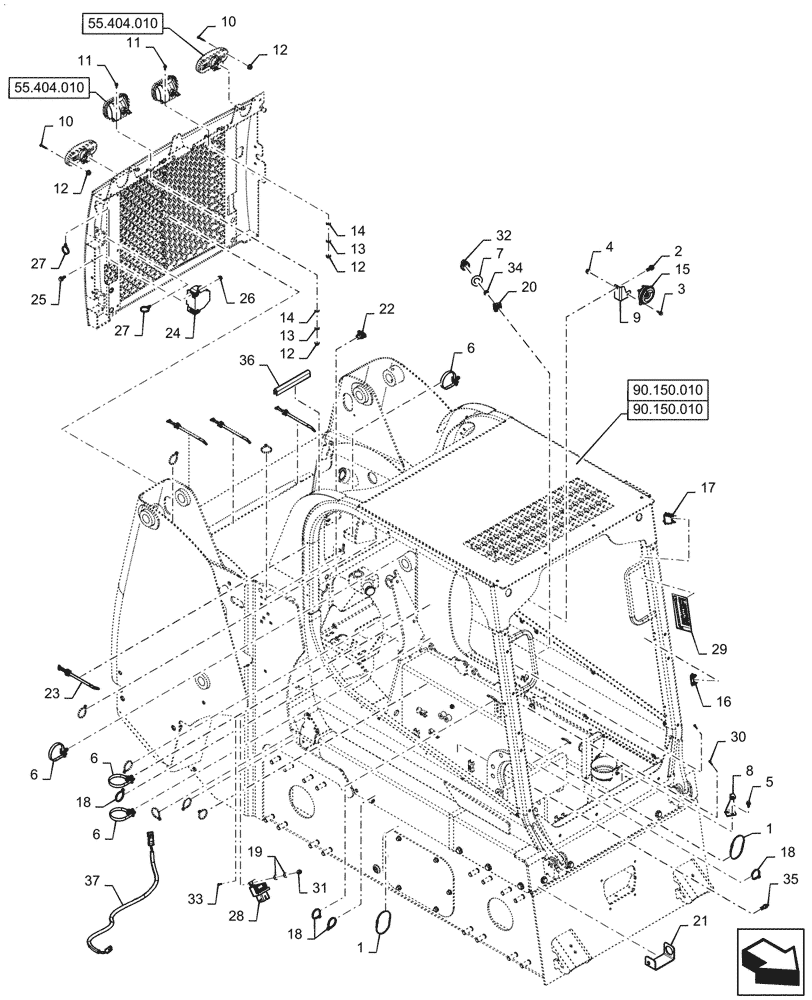

Схема запчастей Case IH SV340 - (55.408.010) - COMMON COMPONENTS & ELECTRICAL (55) - ELECTRICAL SYSTEMS
55.404.010
12
6
31
1
13
5
1
34
6
11
14
30
20
33
16
29
19
18
7
13
11
15
10
25
21
17
10
27
2
22
12
3
27
35
26
12
6
37
6
14
12
32
18
23
8
9
28
36
24
4
18
90.150.010
90.150.010
55.404.010

Артикул

Название

Примечание

Количество

1

84360212

CABLE TIE,294.2mm L, Nylon

3шт.

2

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

1шт.

3

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

1шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

5

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

6

84379484

CABLE TIE,228.6mm L, Nylon, Black

4шт.

7

84412290

DECAL

45mm OD Round, Light Switch

1шт.

8

47842392

Fuse Cover, Gray

BRACKET

1шт.

9

84545953

BRACKET, SUPPORTING

Horn Mounting, Gray

1шт.

10

86502967

SCREW,Phillips Drive, Pan HD, M5 x 30mm, Cl 4.8

4шт.

11

86511838

BOLT,Hvy Hex, M5 x 12mm, Cl 8.8, Full Thd

4шт.

12

86512495

FLANGE NUT,Hex, M5, Cl 8

8шт.

13

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

14

86625264

LOCK WASHER,Ext Tooth, M5

4шт.

15

87714969

HORN

W/ Breather

1шт.

16

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole

1шт.

17

133714A1

BEACON SWITCH

Rocker

1шт.

18

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

19

80707

WASHER,0.25" ID x 0.56" OD x 0.05" Thk

2шт.

20

47376503

ROTARY SWITCH

Lights

1шт.

21

47742435

BRACKET

CAN Diagnostic

1шт.

22

82002966

POWER SOCKET,M18 x 1

Aux Electrical

1шт.

23

84259663

CABLE TIE,228.6mm L, Nylon, Black

4шт.

24

324299A1

ALARM

Reverse Warning

1шт.

25

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

26

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

27

87668737

CABLE TIE,203.2mm L, Nylon, Black

2шт.

28

84357520

ECU

Glow Plugs

1шт.

29

84491577

DECAL

155mm L, LH A-Post

1шт.

30

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

2шт.

31

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

1шт.

32

86729670

KNOB

Light Switch

1шт.

33

87308282

SCREW,HWH, #10 - 32 x 3/4"

1шт.

34

87310592

JAM NUT,7/16" - 28, Gr 5

1шт.

35

87688409

TEMPERATURE SENDER,M10 x 1.0

Hydraulic

1шт.

36

291186

PROTECTION STRIP,9.9mm W

Bulk, Cut to Length, 90mm

1шт.

37

84297138

Seat Belt

WIRE HARNESS

1шт.

Выбрано товаров: 37
