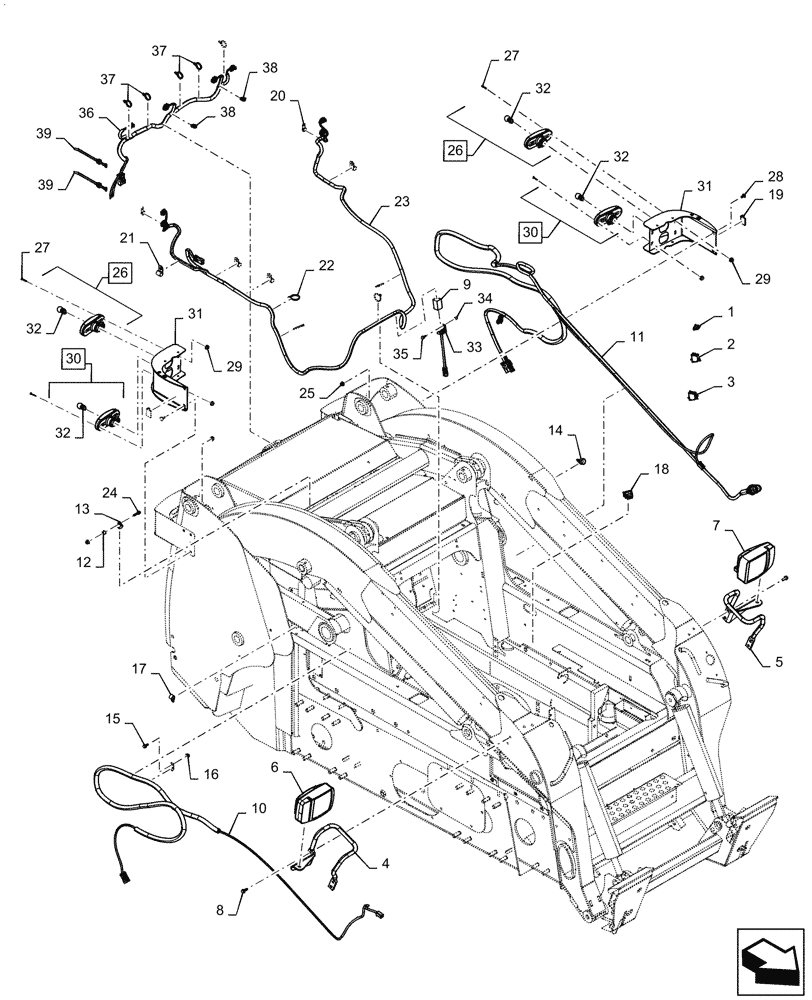

Запчасти Case IH SV340 (55.404.020) - ROAD LIGHTS (55) - ELECTRICAL SYSTEMS

1

86604657

INDICATOR, TURN SIGN

LH A-Post Console

1шт.

2

87634133

SWITCH

Hazard Lights, LH A-Post Console

1шт.

3

84263153

SWITCH

Loader Lockout, LH A-Post Console

1шт.

4

84306585

BRACKET

RH Light Mounting, Tan

1шт.

5

84306583

BRACKET

LH Light Mounting, Tan

1шт.

6

87572859

LAMP

RH, Combination

1шт.

7

87572860

LAMP

LH, Combination

1шт.

8

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

9

9821783

FLASHER UNIT

Relay

1шт.

10

84423502

WIRE HARNESS

RH Boom

1шт.

11

47938057

LH Boom

WIRE HARNESS

1шт.

12

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

1шт.

13

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

14

84467699

CLAMP,25.4mm, Insulated, 8.7mm Bolt Hole - P Type

1шт.

15

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

16

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

17

84522291

CLAMP,19mm, Insulated, 8.7mm Bolt Hole - P Type

1шт.

18

131691A1

ROCKER SWITCH

Front & Rear Coupler, RH A-Post Console

1шт.

19

84416164

FOAM INSULATION

RH, Upper Chassis

2шт.

20

87016870

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, J Type

2шт.

21

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

4шт.

22

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

23

47680489

Rear, Road Lights Jumper

WIRE HARNESS

1шт.

24

87015934

BOLT,Hvy Hex Flange , M8 x 35mm, Cl 8.8

1шт.

25

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

26

87627854

LIGHT ASSY.,12V, 27W, Red

Incl 32

2шт.

27

86502967

SCREW,Phillips Drive, Pan HD, M5 x 30mm, Cl 4.8

8шт.

28

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

29

86512495

FLANGE NUT,Hex, M5, Cl 8

8шт.

30

87629587

LIGHT ASSY.,12V, 27W, Amber

Incl 32

2шт.

31

47870827

BRACKET

Rear Light Mounting, Tan

2шт.

32

87642985

BULB,3157, 12V, 26.5W, Clear

4шт.

33

47972152

JUMPER

Wire Harness, Flasher

1шт.

34

87301324

NUT,Spring, M5 x 0.8

1шт.

35

86639263

BOLT,Hex, M5, Cl 8

1шт.

36

47767927

Rear Lamp Jumper

WIRE HARNESS

1шт.

37

87668737

CABLE TIE,203.2mm L, Nylon, Black

5шт.

38

263117

CABLE TIE,292.1mm L, Nylon, Black

3шт.

39

84259663

CABLE TIE,228.6mm L, Nylon, Black

2шт.
