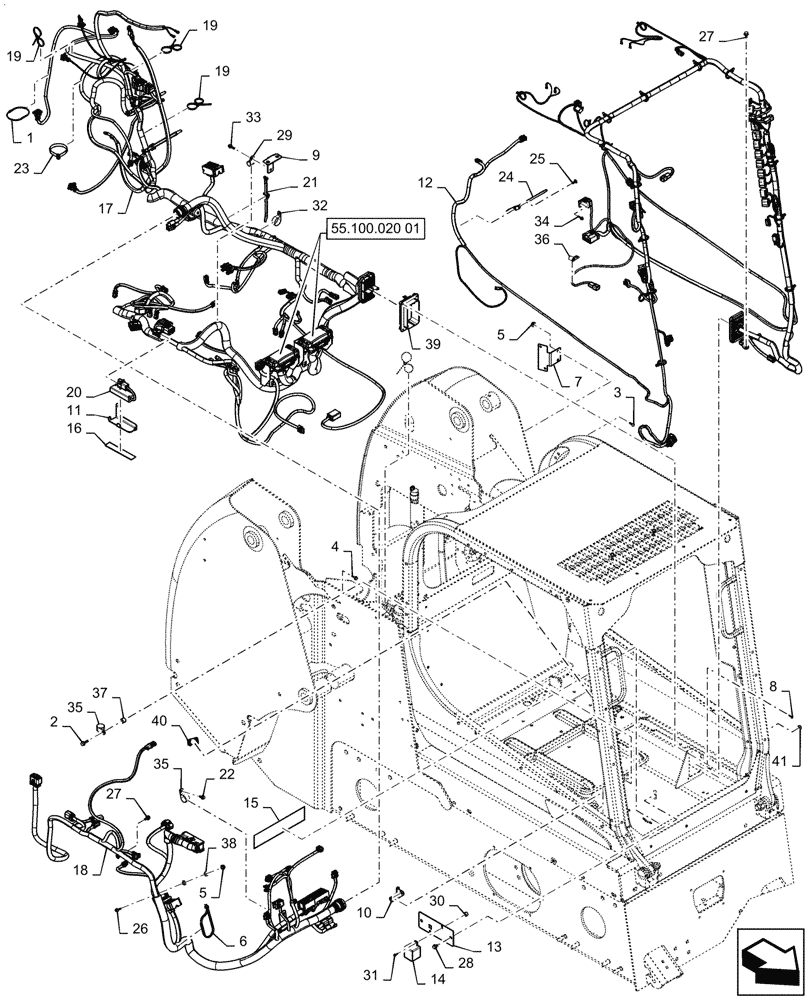

Запчасти Case IH SV340 (55.101.010[01]) - WIRE HARNESS, MECHANICAL CONTROLS (55) - ELECTRICAL SYSTEMS

1

263117

CABLE TIE,292.1mm L, Nylon, Black

3шт.

2

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

3

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

4

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

5

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

5шт.

6

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

7

47651229

Fuse

ANGLE

1шт.

8

47706008

SCREW,Pan Head, #10 - 14 x 5/8"

4шт.

9

47807585

BRACKET

Harness Crossover

1шт.

10

47807590

BRACKET

Crossover, Lower

1шт.

11

47807591

BRACKET

Control Tray

1шт.

12

47912908

Cab, Mechanical

WIRE HARNESS

1шт.

13

47920922

Relay Mounting

PLATE

1шт.

14

47932510

BRACKET

Relay Shield, Gray

1шт.

15

47946305

Fuse Box Layout

DECAL

1шт.

16

47955279

Double Sided

TAPE,150mm L

1шт.

17

47961493

Chassis Main, Mechanical

WIRE HARNESS

1шт.

18

47961520

Chassis Option

WIRE HARNESS

1шт.

19

82012869

CABLE TIE,300mm L, Nylon, Black

10шт.

20

84131374

MODULE

PWM, Prop Aux

1шт.

21

84259663

CABLE TIE,228.6mm L, Nylon, Black

1шт.

22

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

1шт.

22

NSS

NOT SOLD SEPARAT

, Start Year: 01-NOV-16

1шт.

Self Tap Screw Not Used After 01-NOV-2016

1шт.

23

84360212

CABLE TIE,294.2mm L, Nylon

21шт.

24

84420746

CABLE TIE,403.9mm L, Nylon

10шт.

25

84420768

FASTENER,Pine Tree, 5/8" x 20.01mm

10шт.

26

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

1шт.

27

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

28

86512520

BOLT,Hvy Hex, M8 x 12mm, Cl 8.8, Full Thd

2шт.

29

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

30

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

1шт.

31

86639263

BOLT,Hex, M5, Cl 8

1шт.

32

87010657

CLAMP,34.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

33

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

1шт.

34

87017606

SELF-TAP SCREW,Hex Flng, M6 x 1 x 20mm

1шт.

35

87035382

CLAMP,30.2mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

36

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

37

87311354

SPACER,10.7mm ID x 17.1mm OD x 14.2mm L

1шт.

38

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

1шт.

39

87718301

WIRE CONNECTOR,Flange

DRB Flange Interface

1шт.

40

126844A1

PLUG,1.427” x .62” , Plastic

Cover, Switch Hole

1шт.

41

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.
