Запчасти Case IH SV340 (55.036.010) - WIRE HARNESS & CONNECTOR, ELECTRO-HYDRAULIC CONTROL VALVE (55) - ELECTRICAL SYSTEMS

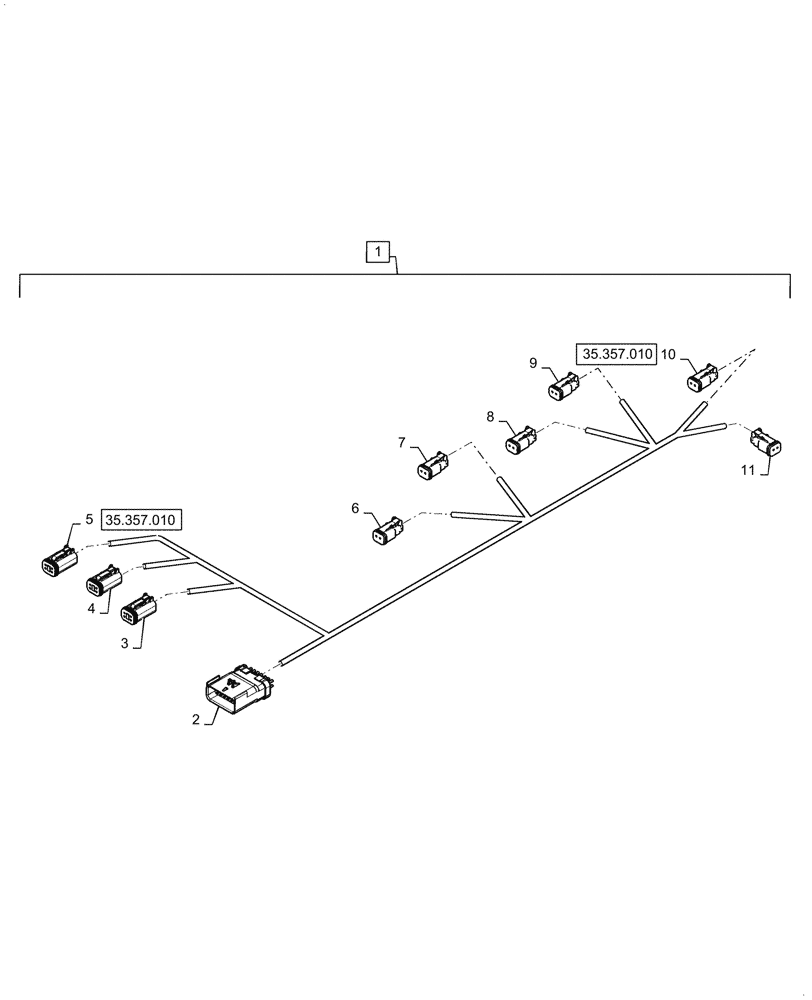

Схема запчастей Case IH SV340 - (55.036.010) - WIRE HARNESS & CONNECTOR, ELECTRO-HYDRAULIC CONTROL VALVE (55) - ELECTRICAL SYSTEMS
35.357.010
1
8
6
2
7
11
4
10
5
9
3
35.357.010

Артикул

Название

Примечание

Количество

1

47806711

WIRE HARNESS

EH Control Valve, Incl 2 - 11

1шт.

2

87382927

ELEC CONNECTOR,Male, 14 Cavities

Loader/Chassis Interface, X-88

1шт.

Connects to Chassis Harness

1шт.

3

87694101

ELEC CONNECTOR,Female, 4 Cavities

Boom Spool Position Sensor, X-22

1шт.

4

87694101

ELEC CONNECTOR,Female, 4 Cavities

Bucket Spool Position Sensor, X-21

1шт.

5

87694101

ELEC CONNECTOR,Female, 4 Cavities

Aux Spool Position Sensor, X-23

1шт.

6

87695582

ELEC CONNECTOR,Female, 2 Pole

Loader Valve Extend, X-28

1шт.

7

87695582

ELEC CONNECTOR,Female, 2 Pole

Loader Vavle Retract, X-27

1шт.

8

87695582

ELEC CONNECTOR,Female, 2 Pole

Bucket Valve Retract, X-25

1шт.

9

87695582

ELEC CONNECTOR,Female, 2 Pole

Bucket Valve Extend, X-26

1шт.

10

87695582

ELEC CONNECTOR,Female, 2 Pole

Proportional Aux Valve Extend, X-24

1шт.

11

87695582

ELEC CONNECTOR,Female, 2 Pole

Proportional Aux Valve Retract, X-29

1шт.

Выбрано товаров: 12
