(55.015.020) - EXHAUST EMISSIONS CONTROL & SENSORS

Запчасти Case IH SV340 (55.015.020) - EXHAUST EMISSIONS CONTROL & SENSORS (55) - ELECTRICAL SYSTEMS

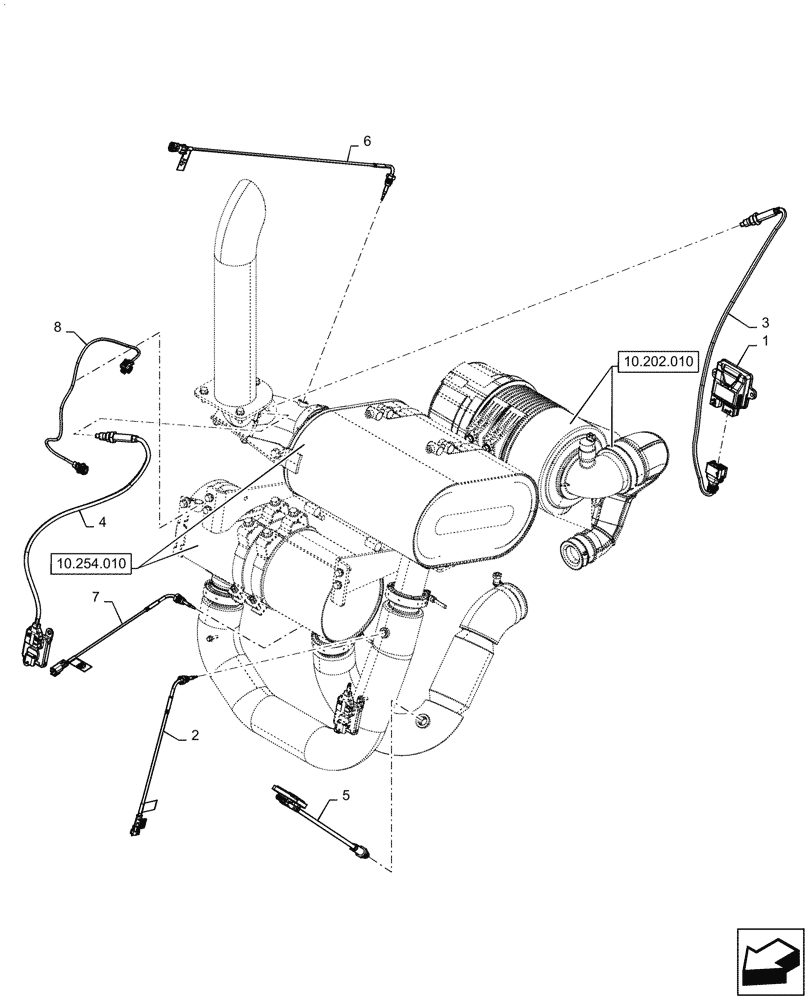

Схема запчастей Case IH SV340 - (55.015.020) - EXHAUST EMISSIONS CONTROL & SENSORS (55) - ELECTRICAL SYSTEMS
10.202.010
2
5
3
7
6
4
1
8
10.254.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47368959

ECU

NH3

1шт.

2

47478868

TEMPERATURE SENDER,35mm, Closed

EGT, Before SCR Muffler

1шт.

3

47520142

SENSOR,1000mm L

NH3, After SCR Muffler

1шт.

4

47582723

NOx, After SCR Muffler

SENSOR,615mm Cable L

1шт.

5

47582739

SENSOR,415mm Cable L

NOx, Before DOC Muffler

1шт.

6

47602265

EGT, After SCR Muffler

SENSOR,660mm L

1шт.

7

47602266

EGT, Before DOC Muffler

SENSOR,240mm Cable L

1шт.

8

47743006

Dosing Module Jumper

WIRE HARNESS

1шт.
