Запчасти Case IH SV340 (50.200.030) - AIR CONDITIONING COMPRESSOR MOUNTING (50) - CAB CLIMATE CONTROL

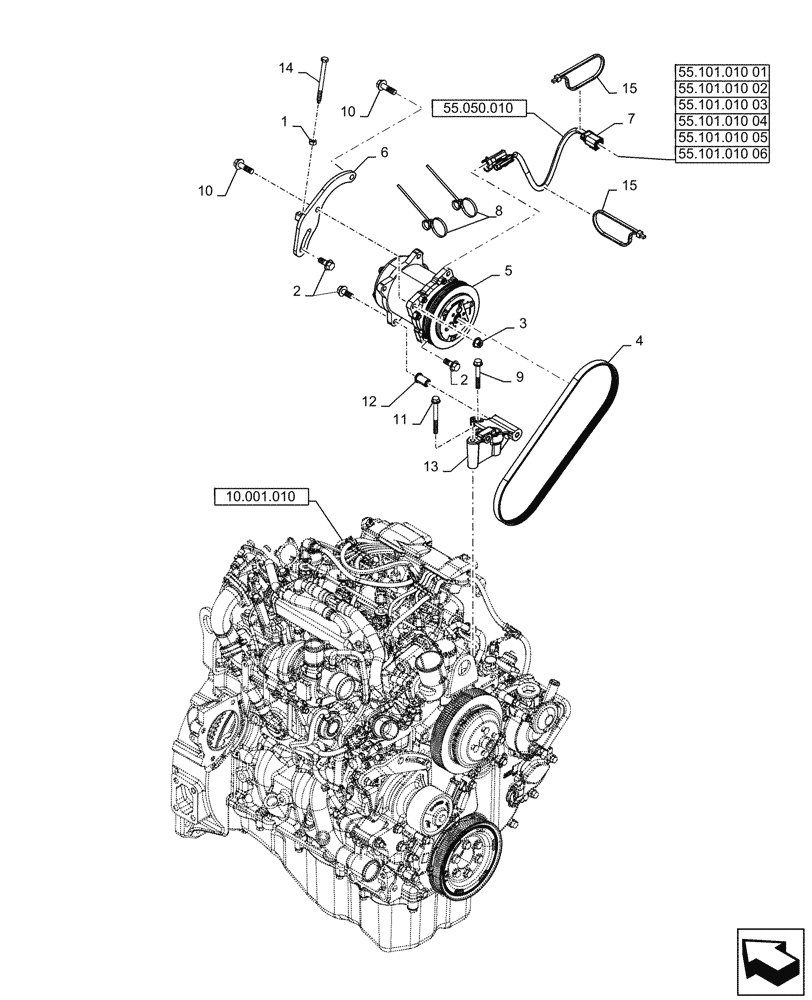

Схема запчастей Case IH SV340 - (50.200.030) - AIR CONDITIONING COMPRESSOR MOUNTING (50) - CAB CLIMATE CONTROL
55.050.010
10
9
2
15
15
1
5
2
8
10
7
4
13
11
3
12
6
14
55.101.010 06
55.101.010 05
10.001.010
55.101.010 01
55.101.010 02
55.101.010 04
55.101.010 03

Артикул

Название

Примечание

Количество

1

9706690

NUT,M8 x 1.25, Cl 8

1шт.

2

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

3шт.

3

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

4

47654850

V-BELT,14.24mm W x 930.1mm L, 4 Ribs

1шт.

5

47741862

AIRCOND. COMPRESSOR,12V, W/Clutch, W/ Pulley

108 CC, 144mm OD Pulley

1шт.

6

47919725

BRACKET

A/C Compressor Adjustment

1шт.

7

47929817

WIRE HARNESS

HVAC Jumper

1шт.

Connect to Main Chassis Harness

1шт.

8

82012869

CABLE TIE,300mm L, Nylon, Black

2шт.

9

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

10

86511845

BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd

2шт.

11

86705425

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

1шт.

12

87622384

BUSHING,11mm ID x 20mm OD x 28mm L

1шт.

13

87649945

BRACKET

A/C Compressor Mounting

1шт.

14

87649979

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

1шт.

15

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

Выбрано товаров: 16
