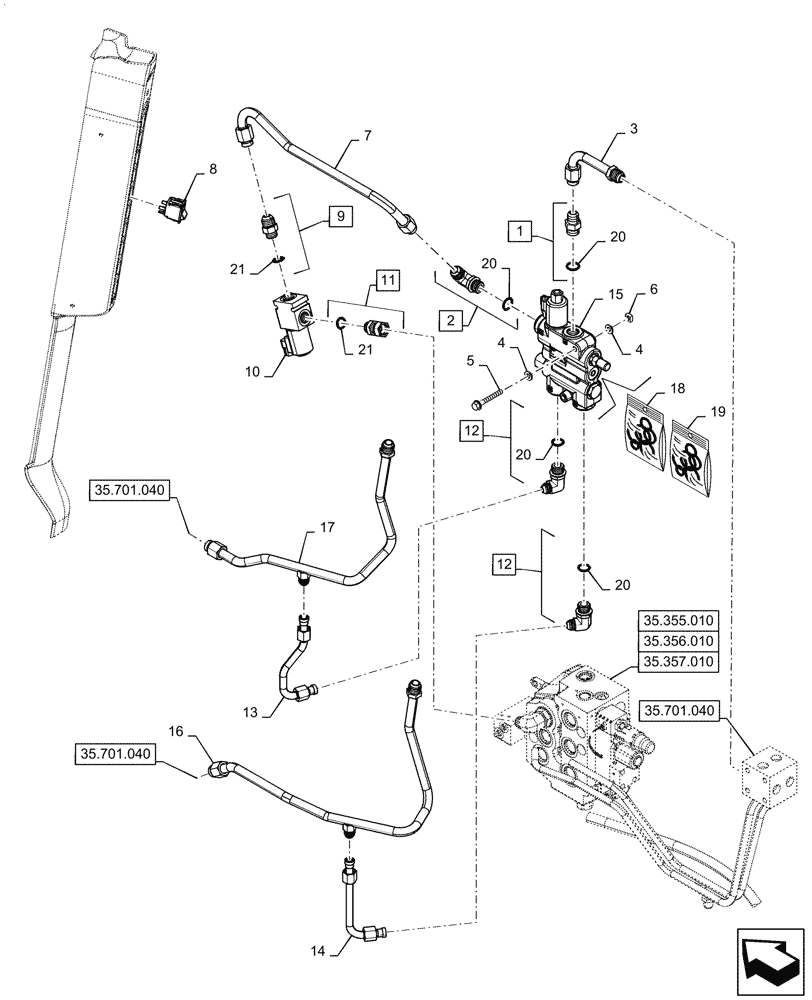

Запчасти Case IH SV340 (35.724.010[01]) - SELF-LEVELING HYDRAULIC CONTROL, MECHANICAL CONTROLS (35) - HYDRAULIC SYSTEMS

1

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

Incl 20

1шт.

2

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl 20

1шт.

3

84258865

RIGID TUBE

Self Level to Manifold

1шт.

4

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

5

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

6

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

7

47383482

TUBE

Lower, Loader Valve to Self Level

1шт.

8

84271904

SWITCH

Self Leveling, Rocker

1шт.

9

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 21

1шт.

10

47647504

VALVE

Rod Lock, 240 Bar

1шт.

11

84586982

HYD CONNECTOR,7/8" - 14 Fem Sw x 3/4" - 16 ORB

Incl 21

1шт.

12

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Incl 20

2шт.

13

47943438

HYD TUBE

Self Level to Bucket Cylinder

1шт.

14

47922268

HYD TUBE

Self Level to Bucket Cylinder

1шт.

15

47948099

HYDRAULIC VALVE

Self Level, 40 Percent

1шт.

16

47922270

HYD TUBE

Bucket, Loader Valve to Right Arm

1шт.

17

47943441

HYD TUBE

Bucket, Loader Valve to Right Arm

1шт.

18

87352779

SOLENOID

Self Level Override, Services 15

1шт.

19

84396561

SEAL KIT

Self Level, Services 15

1шт.

20

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

21

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.
