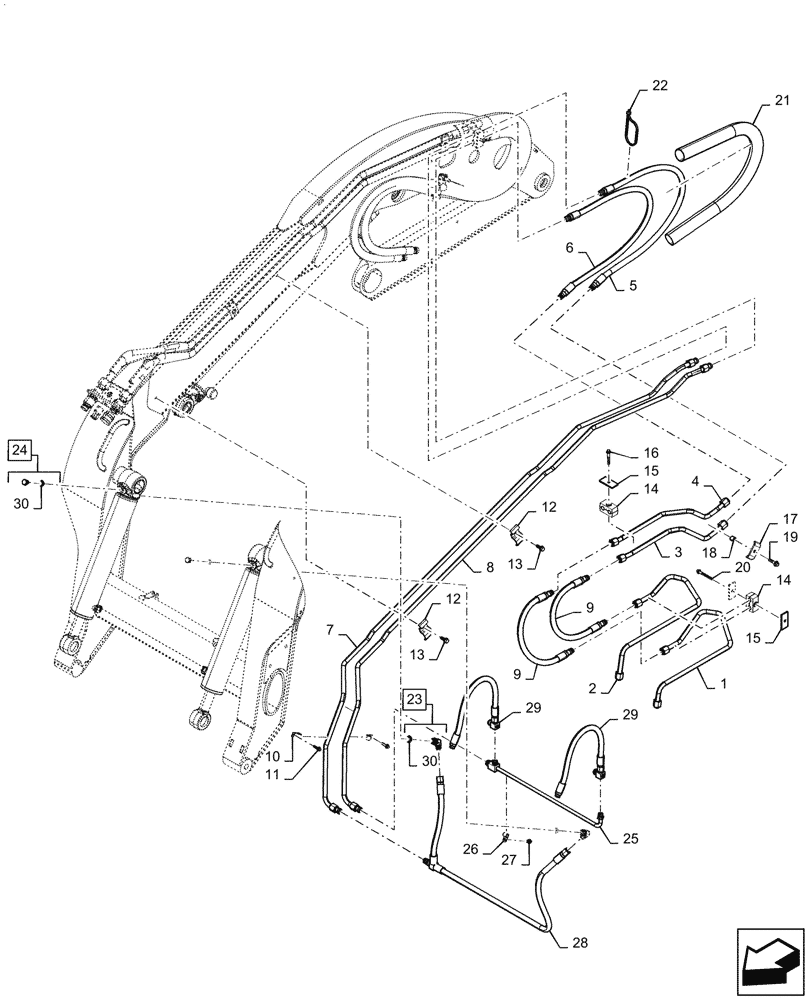

Запчасти Case IH SV340 (35.723.020[01]) - BUCKET HYDRAULIC CYLINDER LINES, W/ EHF (35) - HYDRAULIC SYSTEMS

1

47560315

Bucket, RH Tower

TUBE

1шт.

2

47560318

Bucket, RH Tower

TUBE

1шт.

3

47746970

Bucket Cylinder, Lower Link

HYD TUBE

1шт.

4

47746974

Bucket Cylinder, Lower Link

HYD TUBE

1шт.

5

47887632

Bucket Cylinder, Upper

HOSE,12.5mm ID x 981mm L, SAE 100R16

1шт.

6

47887633

Bucket Cylinder, Upper

HOSE,12.5mm ID x 921mm L, SAE 100R16

1шт.

7

47910907

Bucket Cylinder, Arm

HYD TUBE

1шт.

8

47997983

Bucket Cylinder, Arm

HYD TUBE

1шт.

9

84356593

Bucket Cylinder, Lower

HYDRAULIC HOSE,12.7mm ID x 561mm L, SAE 100R16

2шт.

10

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

11

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

12

48006923

Butterfly, Triple Tube

CLAMP

3шт.

13

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

3шт.

14

1546026C1

CLAMP

Double Tube

2шт.

15

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

3шт.

16

87582902

SELF-TAP SCREW,Hex, M8 x 1.25 x 55mm

1шт.

17

84254045

CLAMP,66mm L

Double Tube

1шт.

18

87340800

SPACER,5/8" Tube x 15.88mm

1шт.

19

84285342

SELF-TAP SCREW,Hex Flng Hd, M10 x 1.5 x 35mm

1шт.

20

84323488

SELF-TAP SCREW,Hex Flg, M8 x 70mm

1шт.

21

84362109

HOSE PROTECTION,46mm ID x 50mm OD x 1070mm L

Guard

1шт.

22

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

23

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 30

2шт.

24

214389

PLUG,3/4" - 16 ORB

Incl 30

2шт.

25

48024921

HYD TUBE

Bucket Crossover

1шт.

26

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

27

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

28

47651810

Bucket Cylinder Base

HOSE

1шт.

29

47505812

HOSE,12.5mm ID x 593mm L, SAE 100R16

2шт.

30

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.
